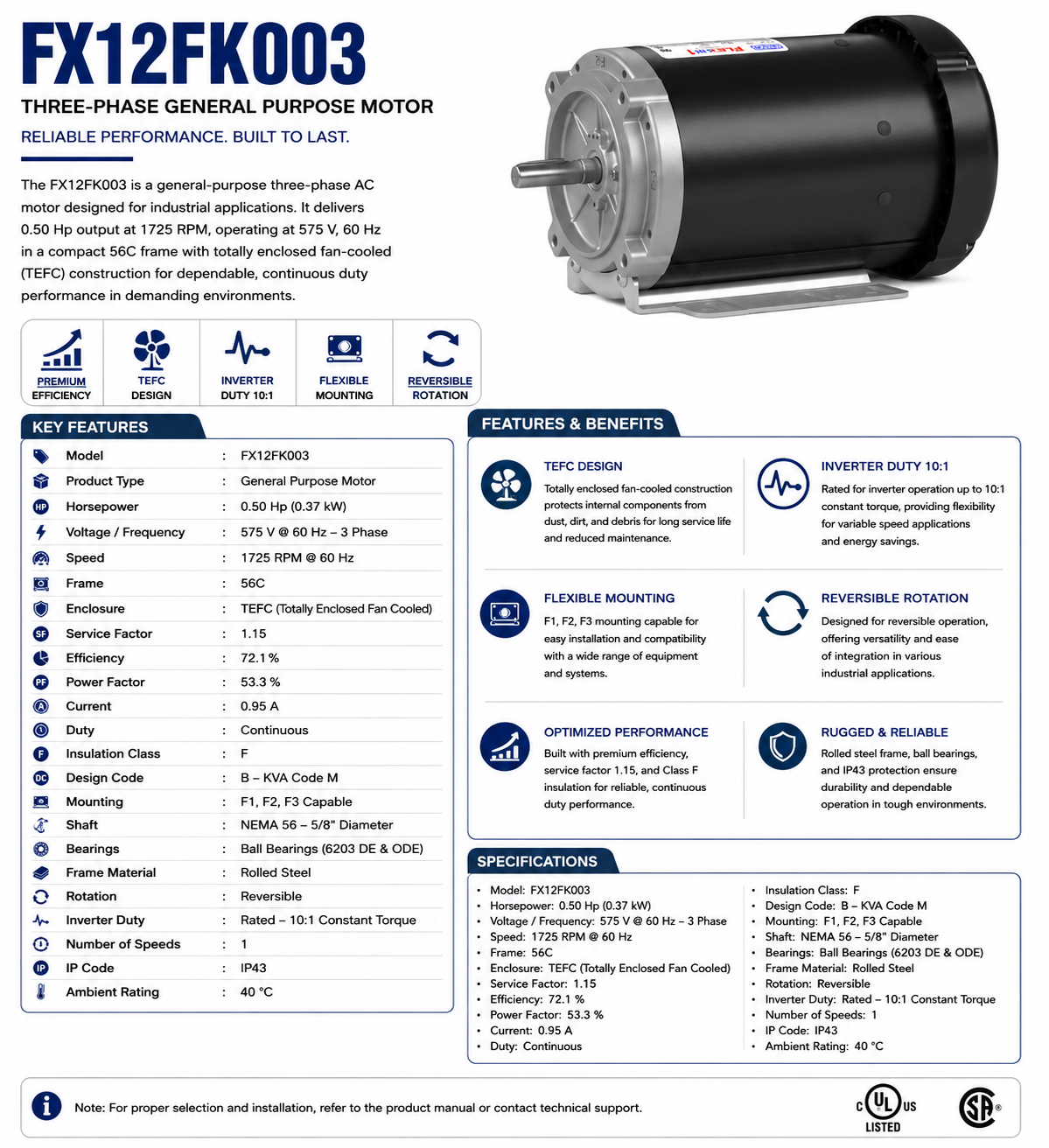

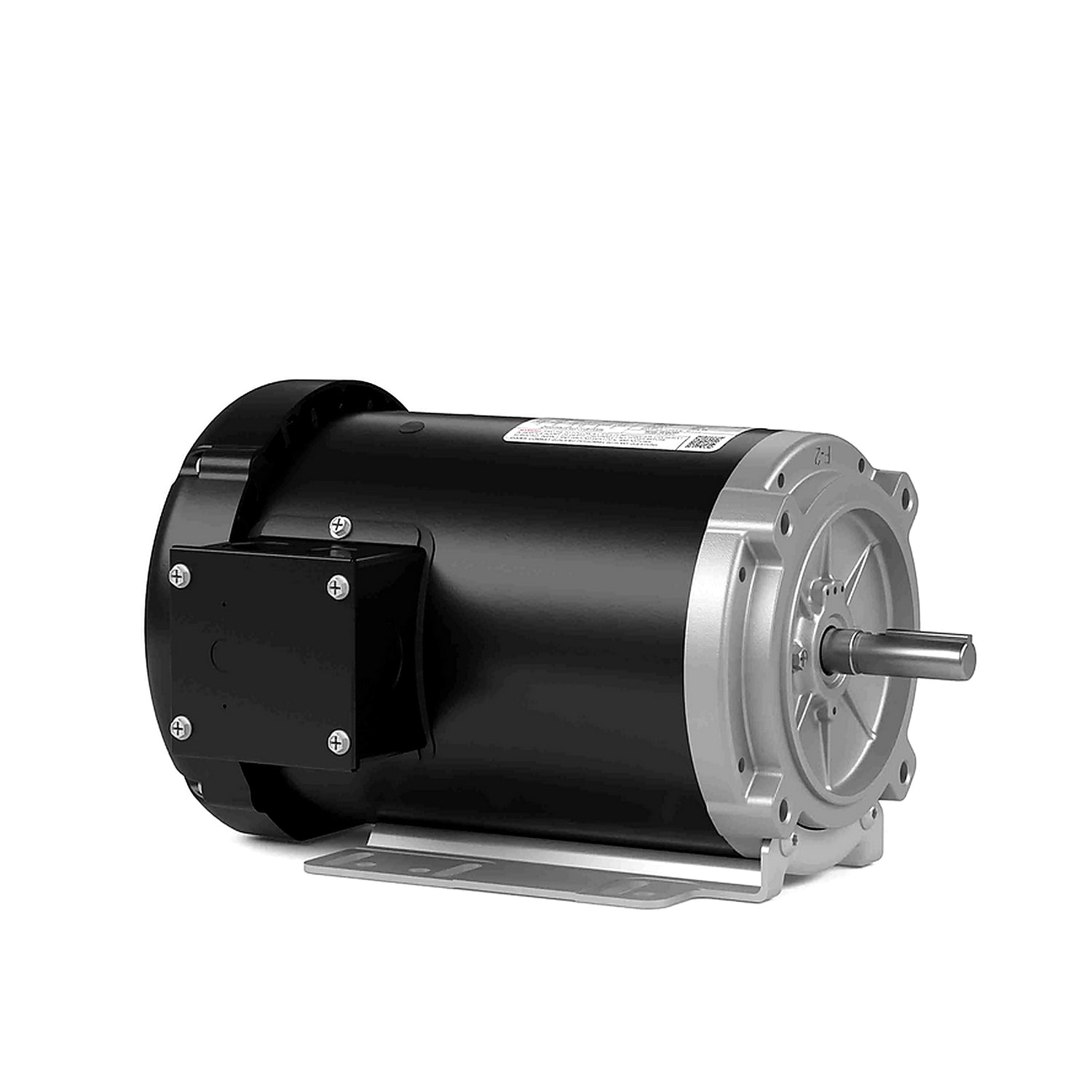

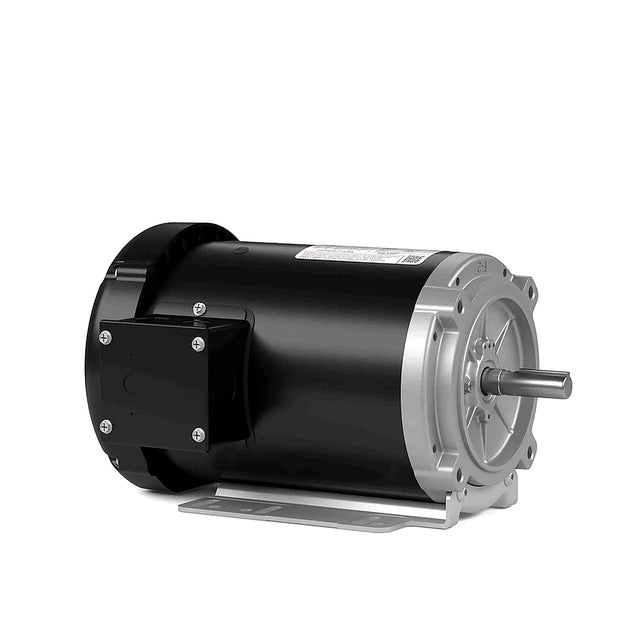

FX12FK003, 0.50 Hp, 1725 RPM, 575 V, 3 Ph, 60 Hz, TEFC, Frame 56C, 056T17F15944

This general-purpose three-phase AC motor delivers 0.50 Hp output at 1725 RPM and operates at 575 V, 60 Hz in a compact 56C frame with totally enclosed fan-cooled construction.

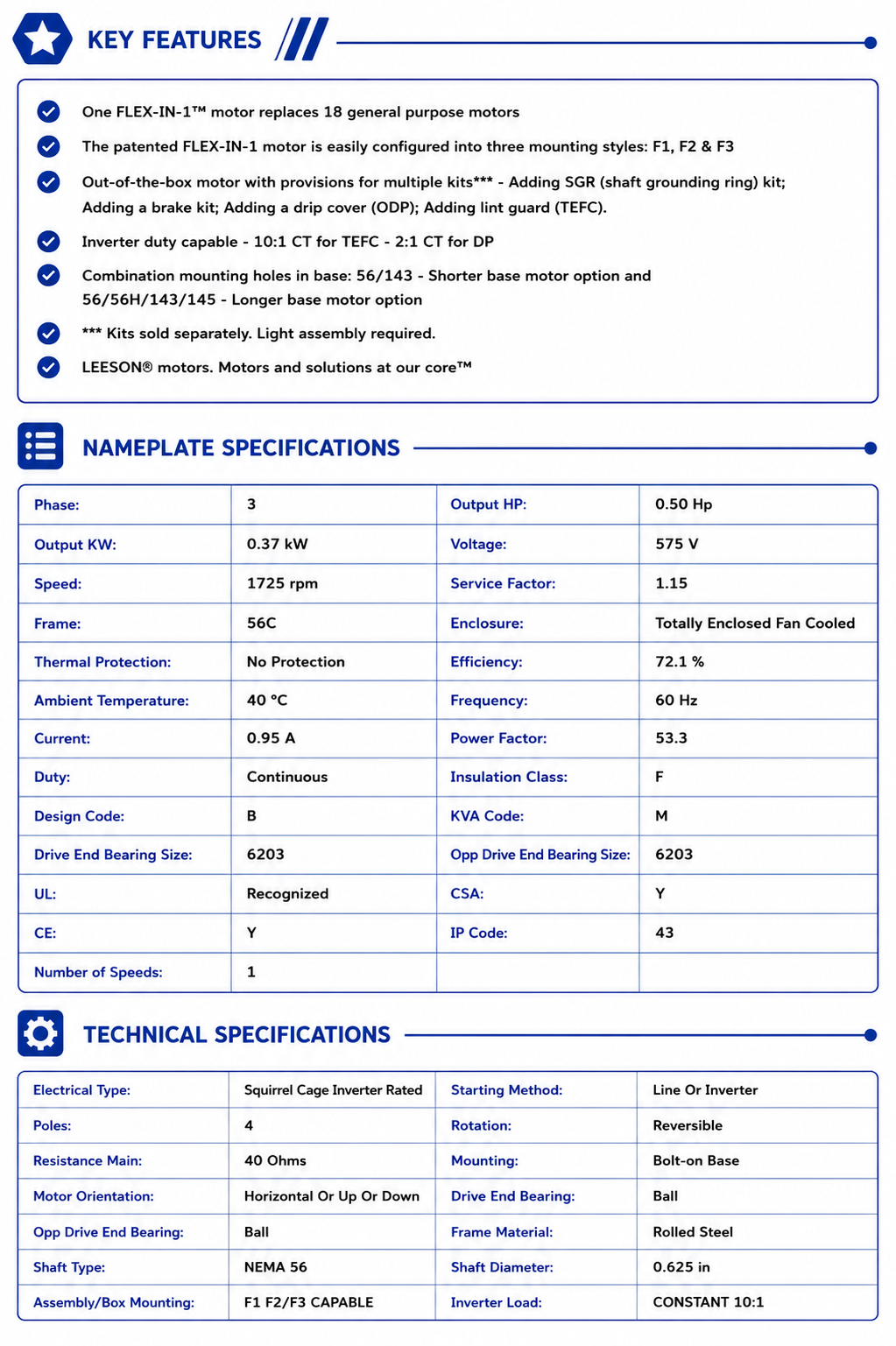

KEY FEATURES

• Model: FX12FK003

• Product Type: General Purpose Motor

• Horsepower: 0.50 Hp (0.37 kW)

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1725 RPM @ 60 Hz

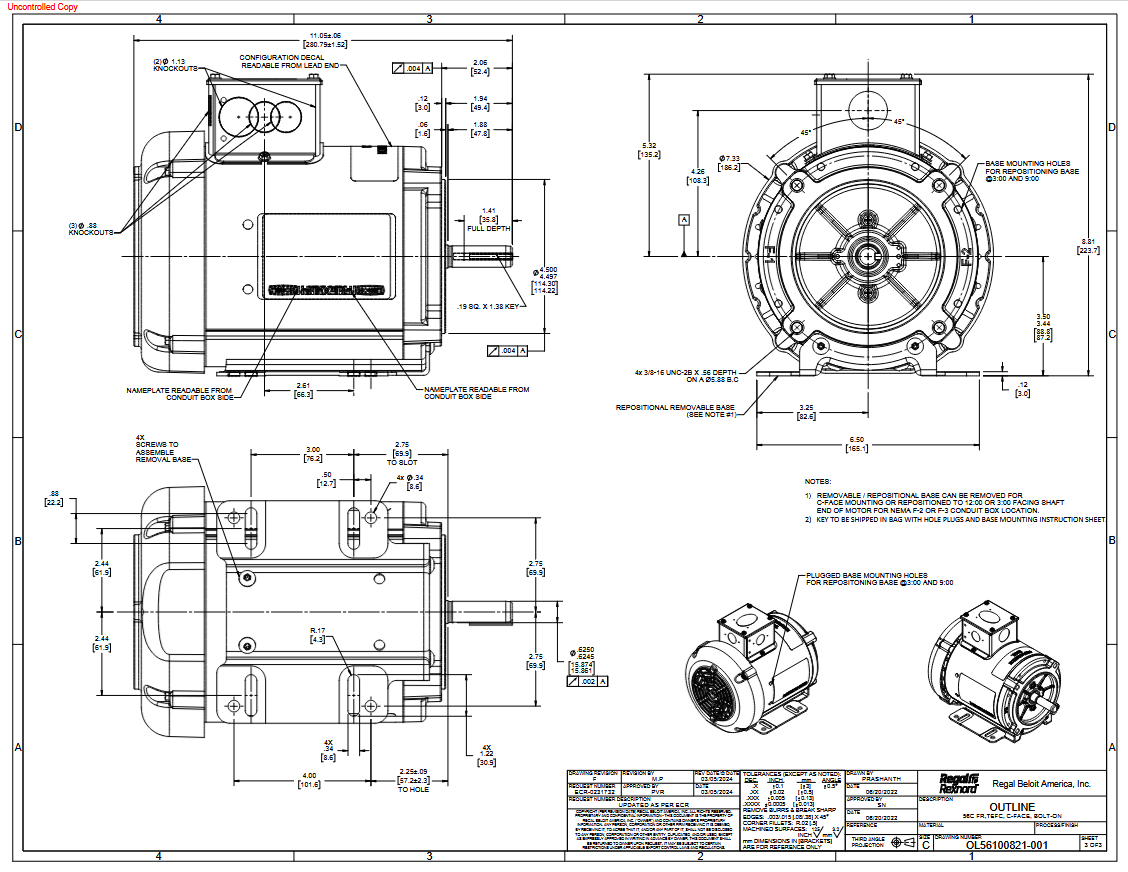

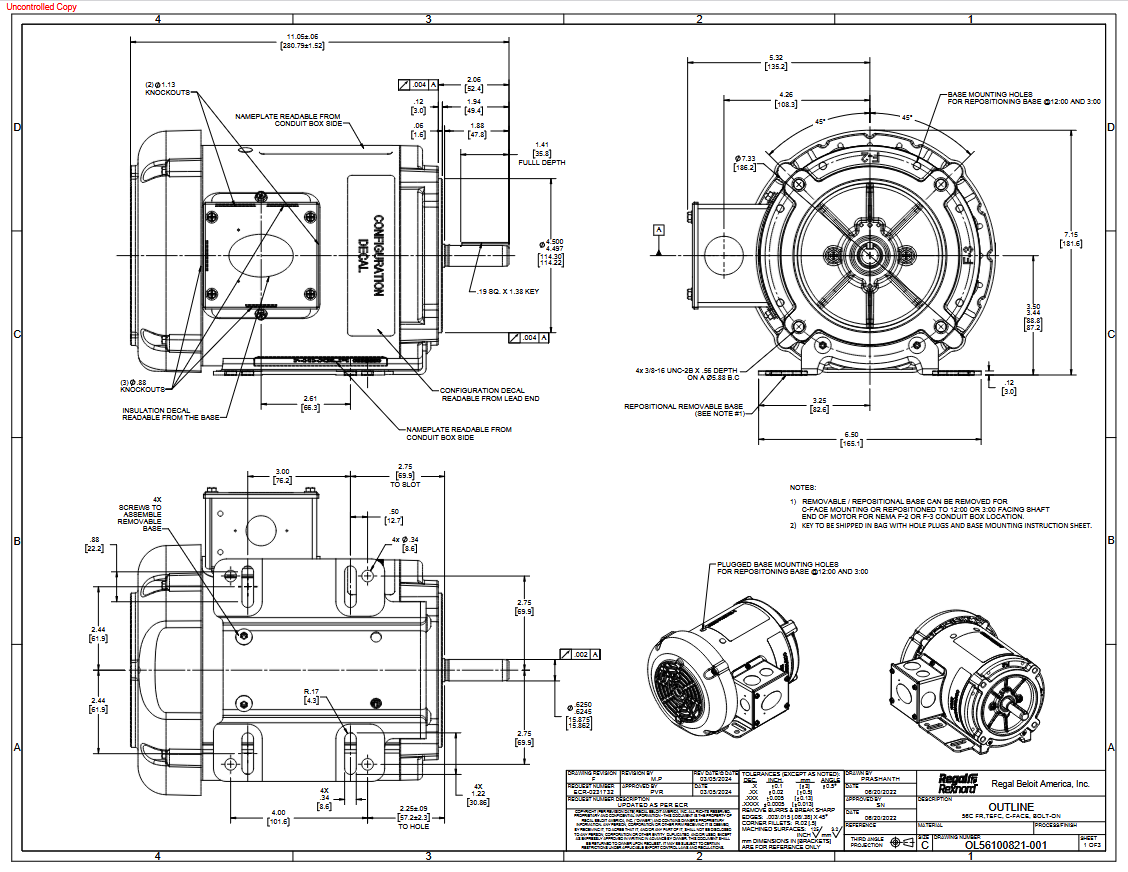

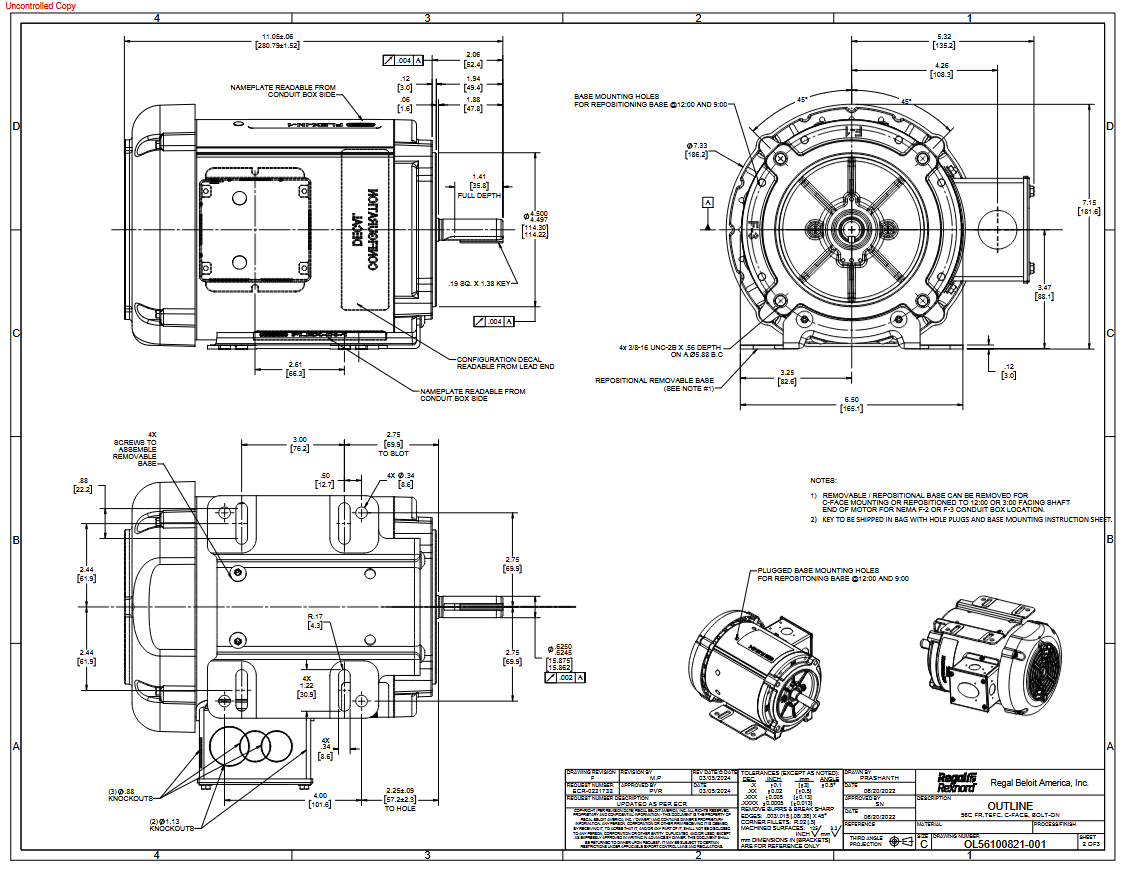

• Frame: 56C

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 72.1 %

• Power Factor: 53.3 %

• Current: 0.95 A

• Duty: Continuous

• Insulation Class: F

• Design Code: B – KVA Code M

• Mounting: F1, F2, F3 Capable

• Shaft: NEMA 56 – 5/8" Diameter

• Bearings: Ball Bearings (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible

• Inverter Duty: Rated – 10:1 Constant Torque

• Number of Speeds: 1

• IP Code: IP43

• Ambient Rating: 40 °C

The motor’s flexible mounting options and inverter-duty capability make it suitable for varied industrial settings, while its TEFC design ensures reliable operation in environments with dust or debris.
