XS1CA2JH, EXPLOSION PROOF, 1Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56H, IP54, CH63ABM1033015B

XS1CA2JH, EXPLOSION PROOF, 1Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56H, IP54, CH63ABM1033015B

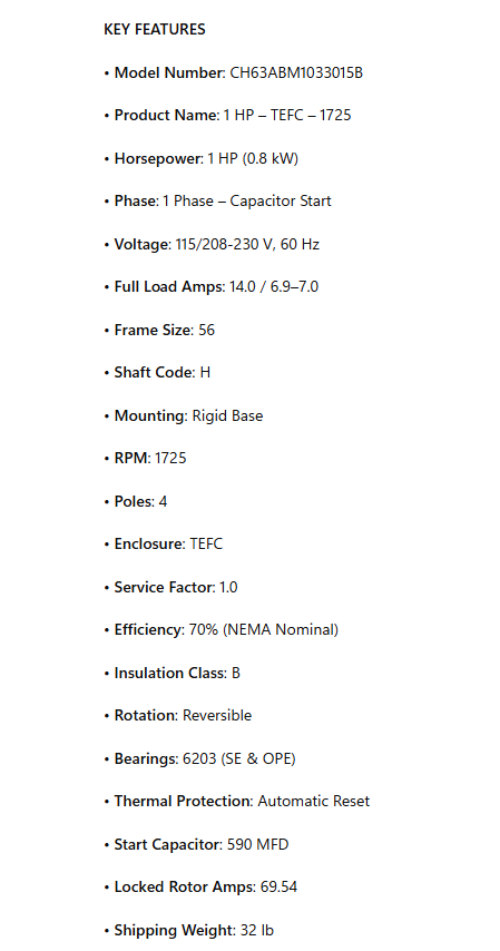

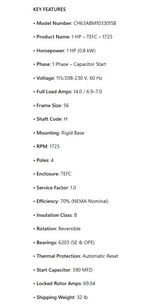

KEY FEATURES

• Model Number: CH63ABM1033015B

• Product Name: 1 HP – TEFC – 1725

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 Phase – Capacitor Start

• Voltage: 115/208-230 V, 60 Hz

• Full Load Amps: 14.0 / 6.9–7.0

• Frame Size: 56

• Shaft Code: H

• Mounting: Rigid Base

• RPM: 1725

• Poles: 4

• Enclosure: TEFC

• Service Factor: 1.0

• Efficiency: 70% (NEMA Nominal)

• Insulation Class: B

• Rotation: Reversible

• Bearings: 6203 (SE & OPE)

• Thermal Protection: Automatic Reset

• Start Capacitor: 590 MFD

• Locked Rotor Amps: 69.54

• Shipping Weight: 32 lb
