Xactone  |  SKU: EMN-018811

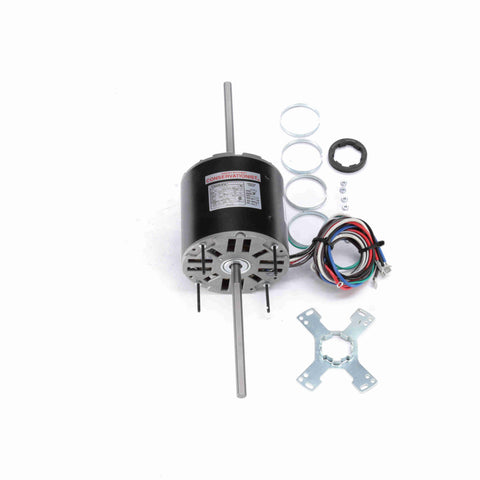

XRA1076, Xactone, Fan Coil & Air Conditioner Motor, 3/4 Hp, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCL.

$308.93
shipping

Estimate shipping

Description

XRA1076, Xactone, replaces Genteq 3698, Century RA1076, US Motor NA1076, Rotom R52489

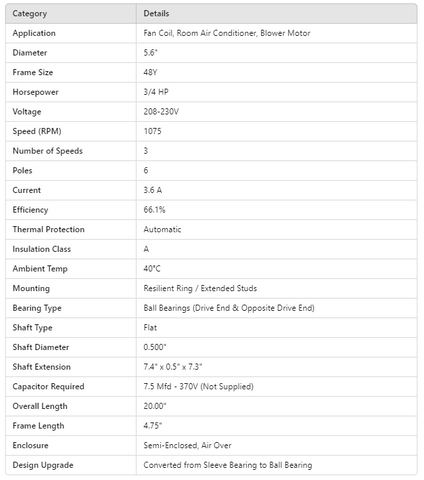

Category Details
Application Fan Coil, Room Air Conditioner, Blower Motor
Diameter 5.6"
Frame Size 48Y
Horsepower 3/4 HP
Voltage 208-230V
Speed (RPM) 1075
Number of Speeds 3
Poles 6
Current 3.6 A
Efficiency 66.1%
Thermal Protection Automatic
Insulation Class A
Ambient Temp 40°C
Mounting Resilient Ring / Extended Studs
Bearing Type Ball Bearings (Drive End & Opposite Drive End)
Shaft Type Flat
Shaft Diameter 0.500"
Shaft Extension 7.4" x 0.5" x 7.3"
Capacitor Required 7.5 Mfd - 370V (Not Supplied)
Overall Length 20.00"
Frame Length 4.75"
Enclosure Semi-Enclosed, Air Over
Design Upgrade Converted from Sleeve Bearing to Ball Bearing
