Xactone  |  SKU: EMN-018803

XRA1056, Xactone, Fan Coil & Air Conditioner Motor, 1/2 Hp, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCL - RA1056

$285.55
shipping

Estimate shipping

Description

XRA1056, Xactone replaces, Genteq 3692, Century RA1056, US Motor NA1056, Rotom R52107

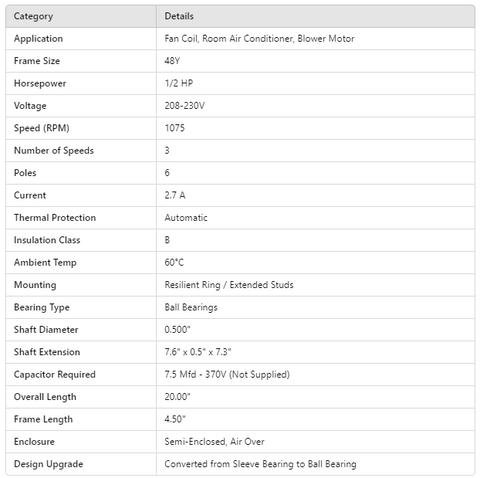

Category Details
Application Fan Coil, Room Air Conditioner, Blower Motor
Frame Size 48Y
Horsepower 1/2 HP
Voltage 208-230V
Speed (RPM) 1075
Number of Speeds 3
Poles 6
Current 2.7 A
Thermal Protection Automatic
Insulation Class B
Ambient Temp 60°C
Mounting Resilient Ring / Extended Studs
Bearing Type Ball Bearings
Shaft Diameter 0.500"
Shaft Extension 7.6" x 0.5" x 7.3"
Capacitor Required 7.5 Mfd - 370V (Not Supplied)
Overall Length 20.00"
Frame Length 4.50"
Enclosure Semi-Enclosed, Air Over
Design Upgrade Converted from Sleeve Bearing to Ball Bearing
