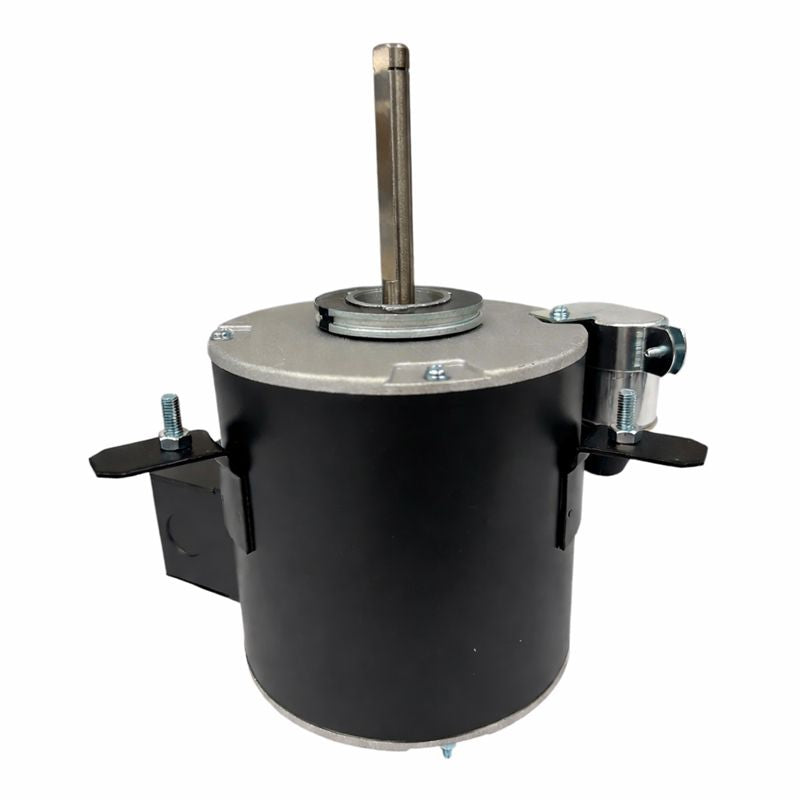

XECAF1617, Blower Motor, 1/4Hp, 1090 RPM, 115V, 1Ph, 60Hz, TEAO, Frame42, CW

XECAF1617, Blower Motor, 1/4Hp, 1090 RPM, 115V, 1Ph, 60Hz, TEAO, Frame42, CW

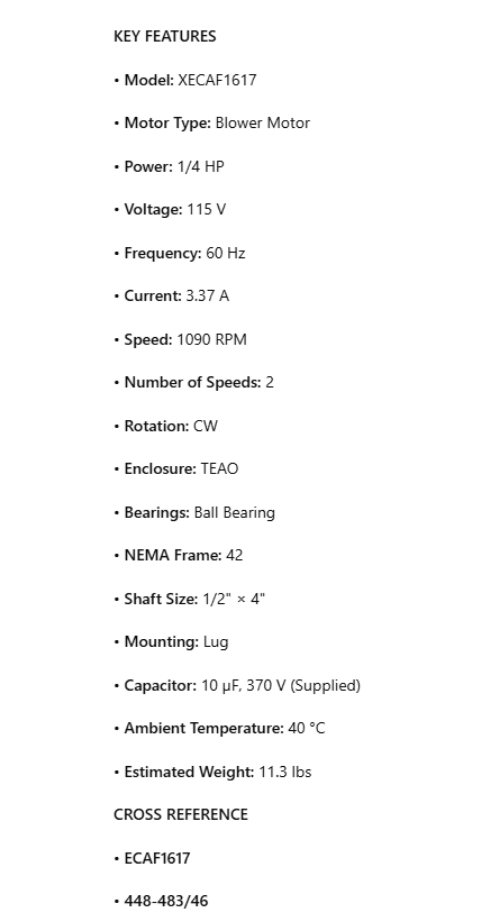

KEY FEATURES

• Model: XECAF1617

• Motor Type: Blower Motor

• Power: 1/4 HP

• Voltage: 115 V

• Frequency: 60 Hz

• Current: 3.37 A

• Speed: 1090 RPM

• Number of Speeds: 2

• Rotation: CW

• Enclosure: TEAO

• Bearings: Ball Bearing

• NEMA Frame: 42

• Shaft Size: 1/2" × 4"

• Mounting: Lug

• Capacitor: 10 µF, 370 V (Supplied)

• Ambient Temperature: 40 °C

• Estimated Weight: 11.3 lbs

CROSS REFERENCE

• ECAF1617

• 448-483/46
