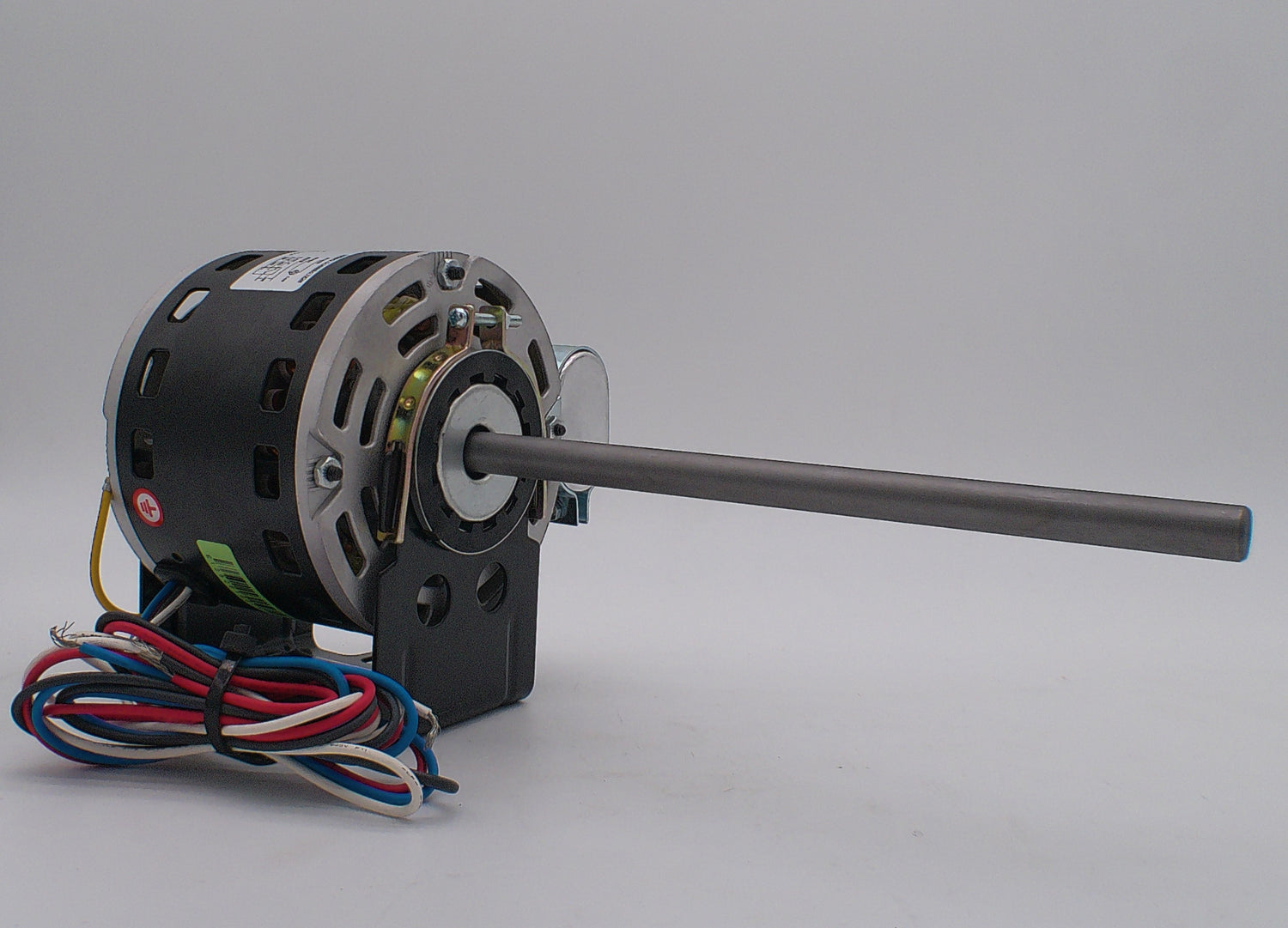

X954, Xactone, 1/30Hp, 1075 Rpm, 115 Volts, Frame:42, YDK120/20-6-25A2,

X954, YDK120/20-6-25A2, Xactone, Replaces Century 954,Trane HVAC Electric Motor (X70500149-01-7),K48HXBHY-954, 5KSP29DK15075, MOT-1875, X70500149-01-

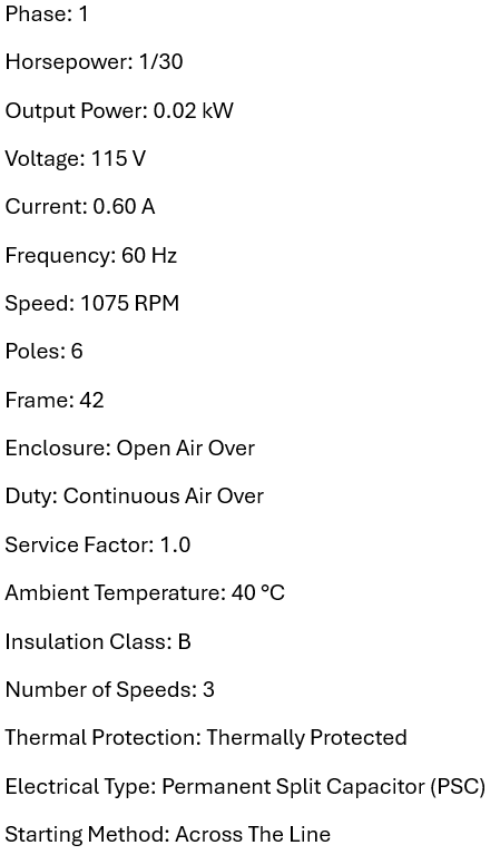

• Phase: 1

• Horsepower: 1/30

• Output Power: 0.02 kW

• Voltage: 115 V

• Current: 0.60 A

• Frequency: 60 Hz

• Speed: 1075 RPM

• Poles: 6

• Frame: 42

• Enclosure: Open Air Over

• Duty: Continuous Air Over

• Service Factor: 1.0

• Ambient Temperature: 40 °C

• Insulation Class: B

• Number of Speeds: 3

• Thermal Protection: Thermally Protected

• Electrical Type: Permanent Split Capacitor (PSC)

• Starting Method: Across The Line

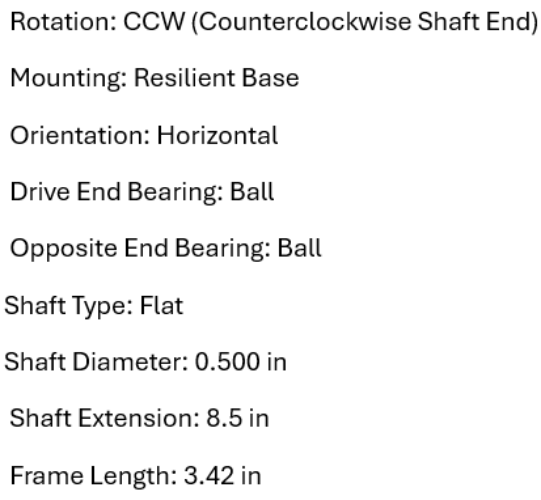

• Rotation: CCW (Counterclockwise Shaft End)

• Mounting: Resilient Base

• Orientation: Horizontal

• Drive End Bearing: Ball

• Opposite End Bearing: Ball

• Shaft Type: Flat

• Shaft Diameter: 0.500 in

• Shaft Extension: 8.5 in

• Frame Length: 3.42 in
