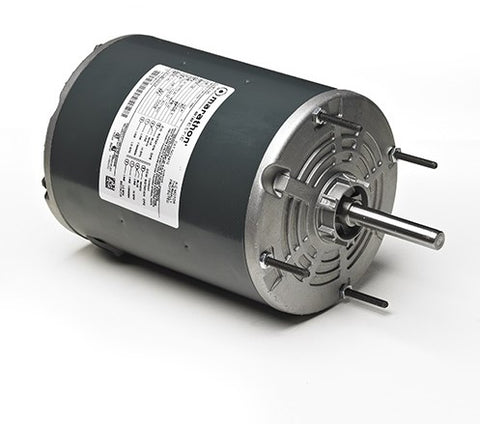

X910, Marathon, 1/4-1/12 Hp, 1800/1200 rpm. 115V, 48, 048S17T366, TEAO,

MARATHON

$342.15

X910, Marathon, 048S17T366, Replace model 2WD48S17T366A,

0.25,0.08 Hp	Output KW:	0.19 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	3.95,2.25 A	Speed:	1725,1140 rpm
Service Factor:	1	Phase:	1
Efficiency:	62 %	Power Factor:	68
Duty:	Continuous	Insulation Class:	B
Design Code:	2VT	KVA Code:	R
Frame:	48	Enclosure:	Totally Enclosed Air Over
Thermal Protection:	Automatic Lock Rotor Only	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	43

Technical Specifications

Electrical Type:	Split Phase	Starting Method:	Across The Line
Poles:	4//6	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Round - Extended Studs
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 48	Overall Length:	11.09 in
Frame Length:	6.50 in	Shaft Diameter:	0.500 in
Shaft Extension:	2.59 in	Assembly/Box Mounting:	F1 Only

Speed Characteristics
