Xactone | SKU:
EMN-018886

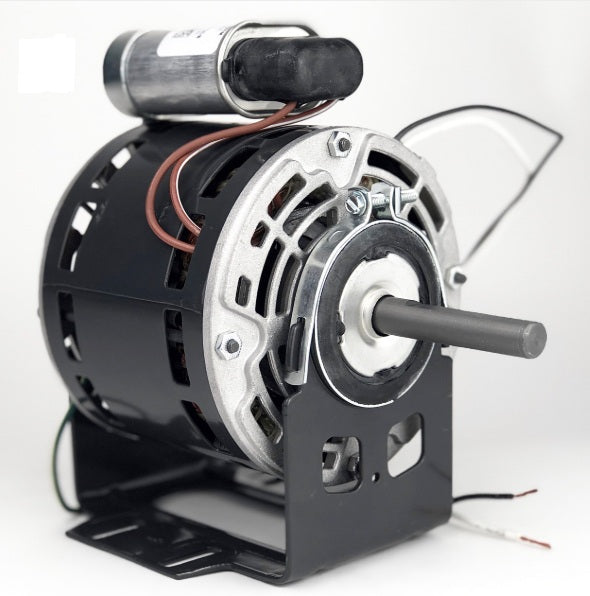

X63821, Xactone, 63821-0, PennBarry, 1/4Hp, 1550 Rpm, 115V, Frame: 42,
Regular price
$468.90
Unit price
/
Unavailable
X63821, Xactone, 63821-0, PennBarry, 1/4Hp, 1550 Rpm, 115V, Frame: 42, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X63821, Xactone, 63821-0, PennBarry, 1/4Hp, 1550 Rpm, 115V, Frame: 42,
Regular price
$468.90
Unit price
/
Unavailable
Description
Description
X63821, Xactone, replaces PenBarry 63821-0, 7185-0219,
YDK120-35-4-185A1,

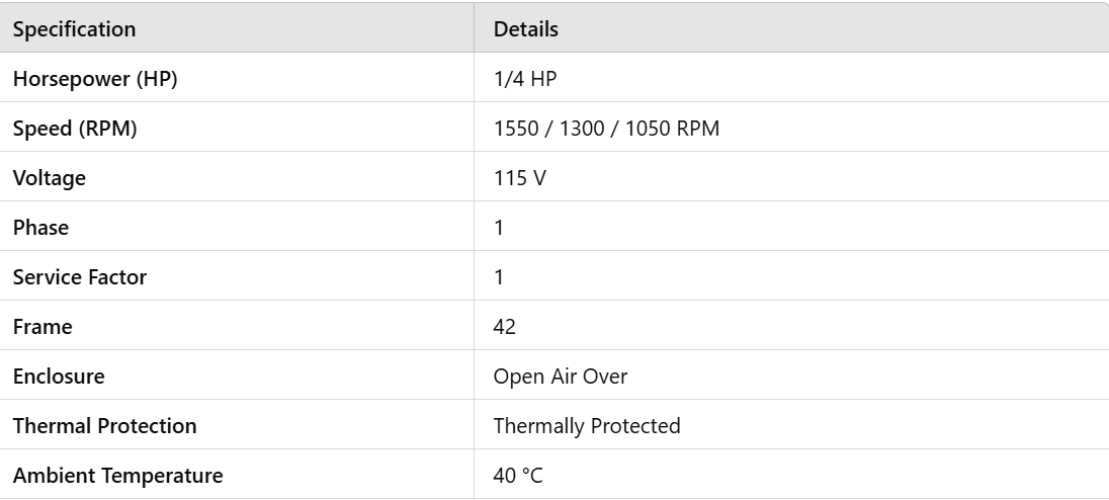

| Specification | Details |
|---|---|
| Horsepower (HP) | 1/4 HP |
| Speed (RPM) | 1550 / 1300 / 1050 RPM |
| Voltage | 115 V |
| Phase | 1 |
| Service Factor | 1 |
| Frame | 42 |
| Enclosure | Open Drip Proof |
| Thermal Protection | Thermally Protected |
| Ambient Temperature | 40 °C |

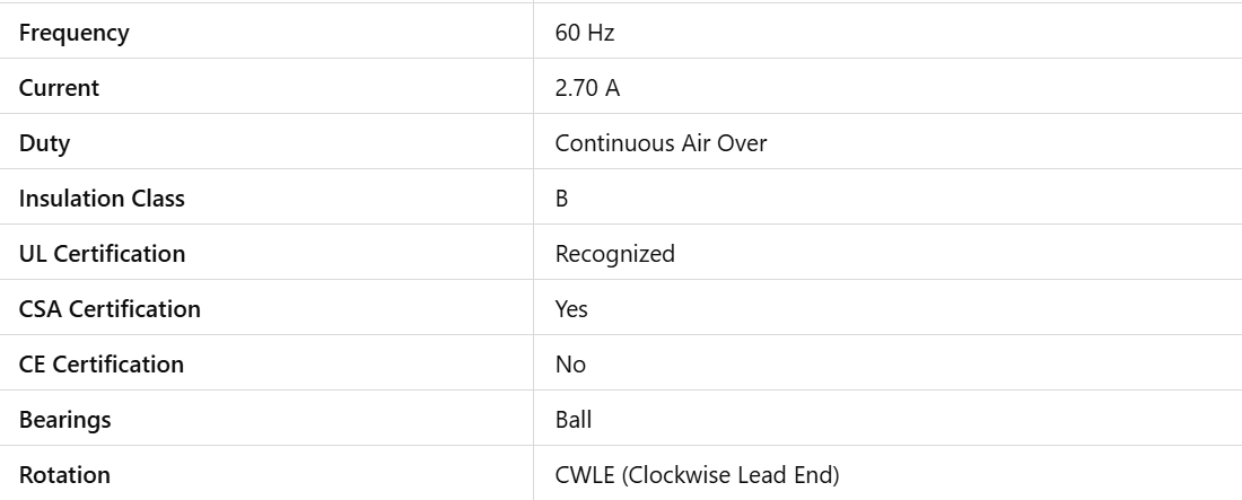

| Frequency | 60 Hz |
| Current | 2.70 A |
| Duty | Continuous Air Over |
| Insulation Class | B |
| UL Certification | Recognized |
| CSA Certification | Yes |
| CE Certification | No |
| Bearings | Ball |
| Rotation | CWLE (Clockwise Lead End) |

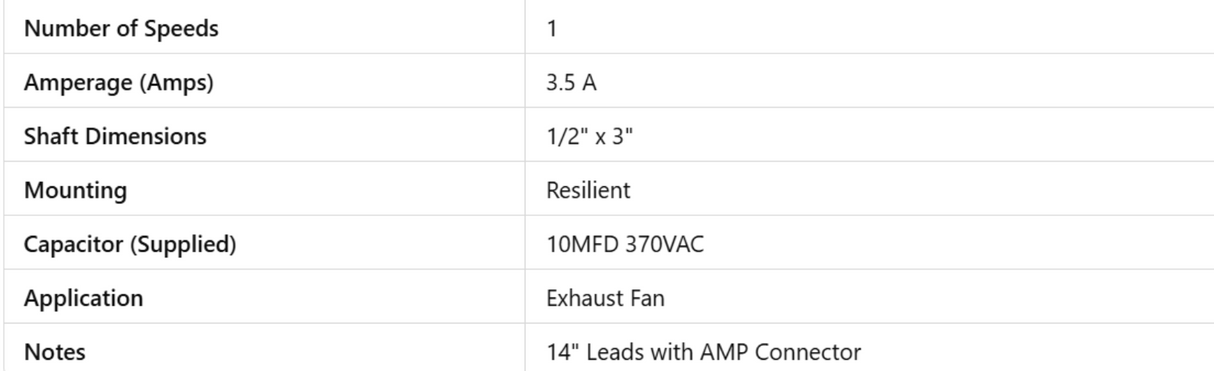

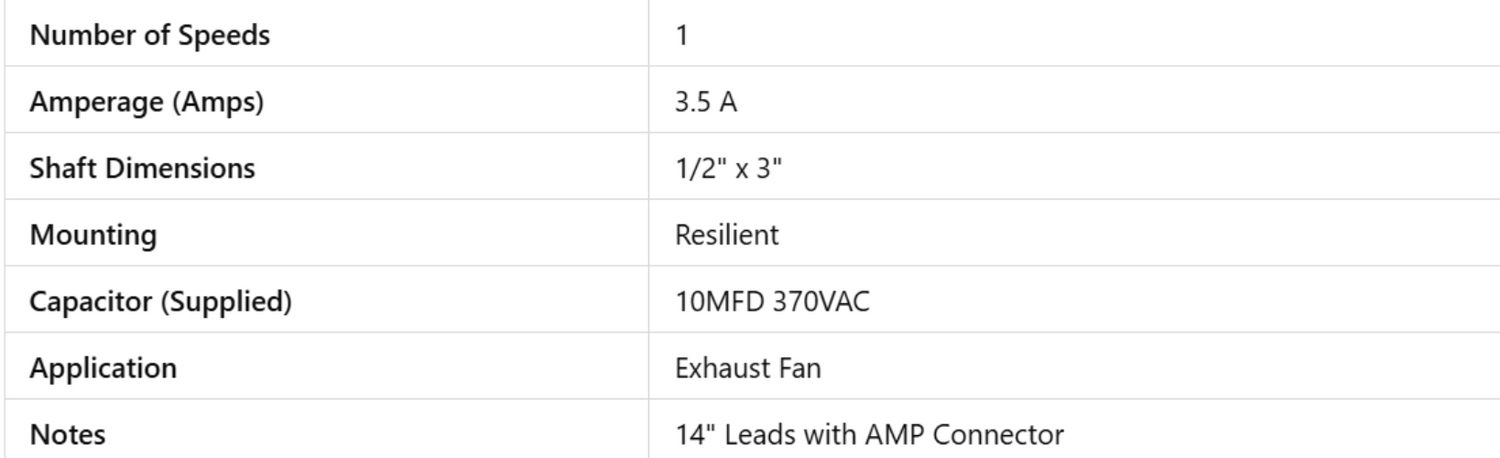

| Number of Speeds | 1 |
| Amperage (Amps) | 3.5 A |
| Shaft Dimensions | 1/2" x 3" |
| Mounting | Resilient |
| Capacitor (Supplied) | 10MFD 370VAC |
| Application | Exhaust Fan |
| Notes | 14" Leads with AMP Connector |
