Xactone | SKU:
EMN-018890
X63748, Xactone, 1/6Hp, 1550 Rpm, 115V, Frame: 42, 63748-0, PennBarry,
Regular price
$347.42
Unit price
/
Unavailable
X63748, Xactone, 1/6Hp, 1550 Rpm, 115V, Frame: 42, 63748-0, PennBarry, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X63748, Xactone, 1/6Hp, 1550 Rpm, 115V, Frame: 42, 63748-0, PennBarry,
Regular price
$347.42
Unit price
/
Unavailable
Description
Description
X63748, Xactone, replaces PennBarry 63748-0, Century OPV748,

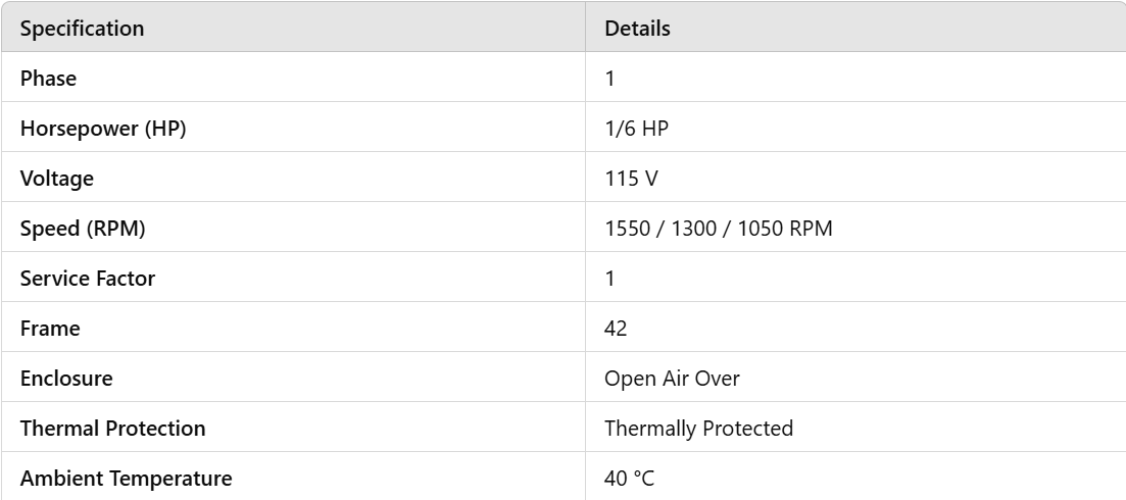

| Specification | Details |
|---|---|
| Phase | 1 |
| Horsepower (HP) | 1/6 HP |
| Voltage | 115 V |
| Speed (RPM) | 1550 / 1300 / 1050 RPM |
| Service Factor | 1 |
| Frame | 42 |
| Enclosure | Open Air Over |
| Thermal Protection | Thermally Protected |
| Ambient Temperature | 40 °C |

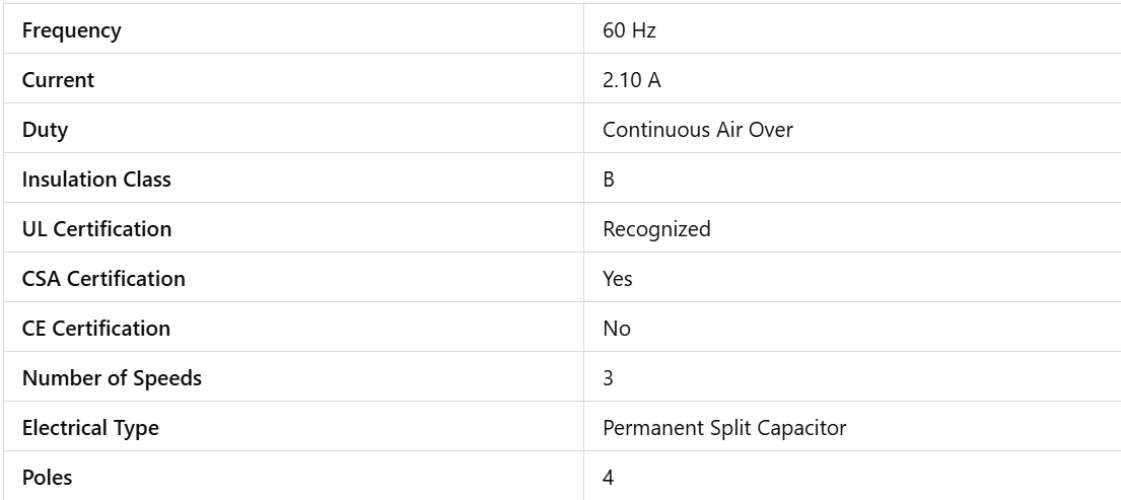

| Frequency | 60 Hz |
| Current | 2.10 A |
| Duty | Continuous Air Over |
| Insulation Class | B |
| UL Certification | Recognized |
| CSA Certification | Yes |
| CE Certification | No |
| Number of Speeds | 3 |
| Electrical Type | Permanent Split Capacitor |
| Poles | 4 |

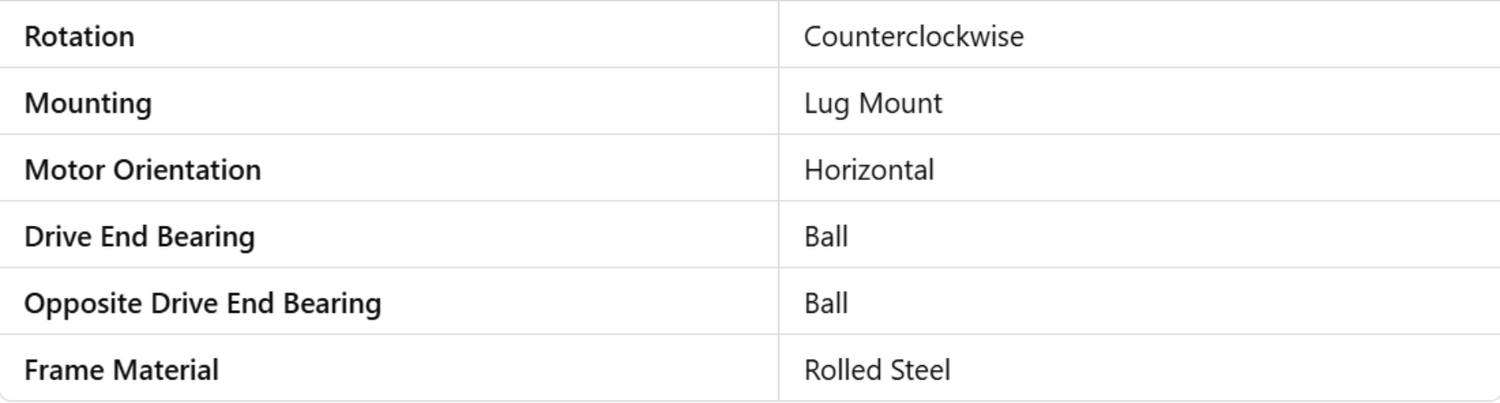

| Rotation | Counterclockwise |
| Mounting | Lug Mount |
| Motor Orientation | Horizontal |
| Drive End Bearing | Ball |
| Opposite Drive End Bearing | Ball |
| Frame Material | Rolled Steel |
