Xactone | SKU:
EMN-018889
X63747, Xactone, 1/7Hp, 1550 Rpm, 115V, Frame:42, 63747-0, PennBarry,
Regular price
$311.22
Unit price
/
Unavailable
X63747, Xactone, 1/7Hp, 1550 Rpm, 115V, Frame:42, 63747-0, PennBarry, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X63747, Xactone, 1/7Hp, 1550 Rpm, 115V, Frame:42, 63747-0, PennBarry,
Regular price
$311.22
Unit price
/
Unavailable
Description
Description

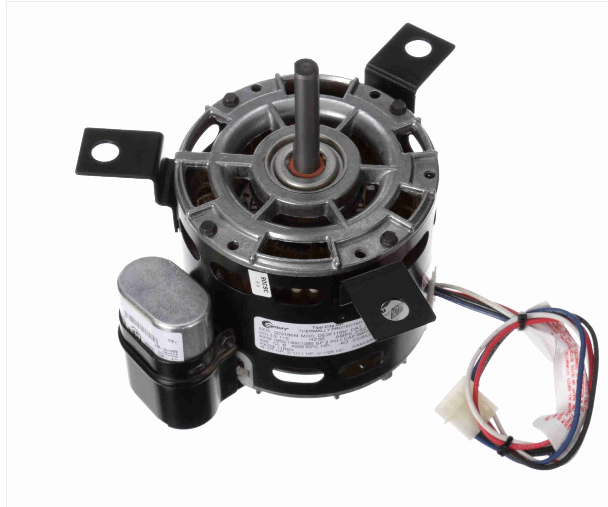

X63747, Xactone, replaces 63747-0, PennBarry, 7185-0264, Fasco, DE2F7085-T, AO Smith

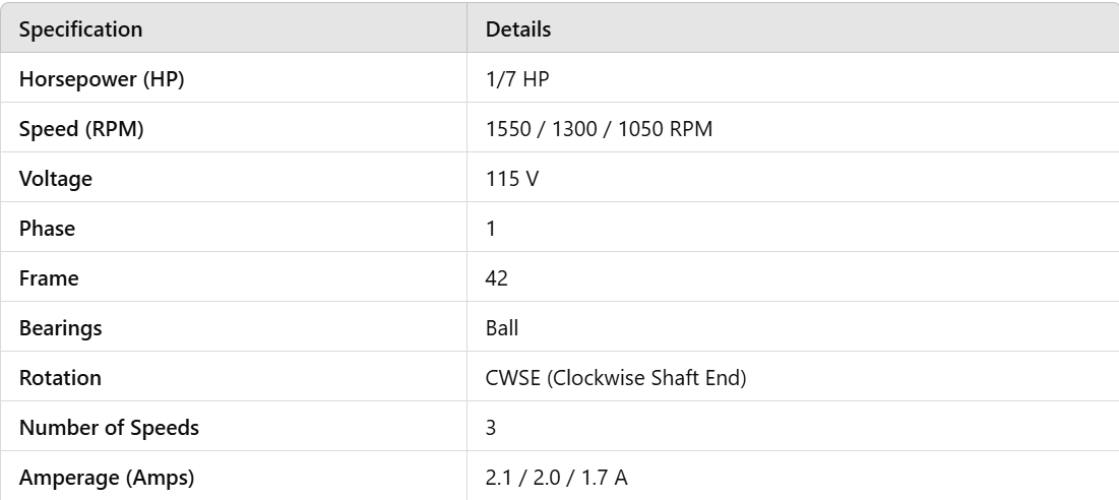

| Specification | Details |
|---|---|
| Horsepower (HP) | 1/7 HP |
| Speed (RPM) | 1550 / 1300 / 1050 RPM |
| Voltage | 115 V |
| Phase | 1 |
| Frame | 42 |
| Bearings | Ball |
| Rotation | CWSE (Clockwise Shaft End) |
| Number of Speeds | 3 |
| Amperage (Amps) | 2.1 / 2.0 / 1.7 A |

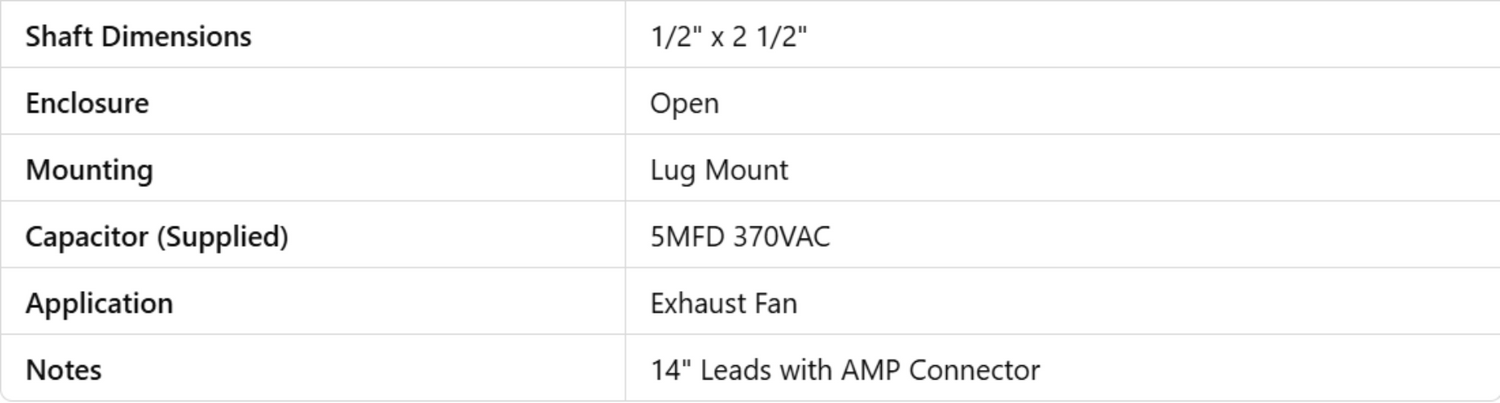

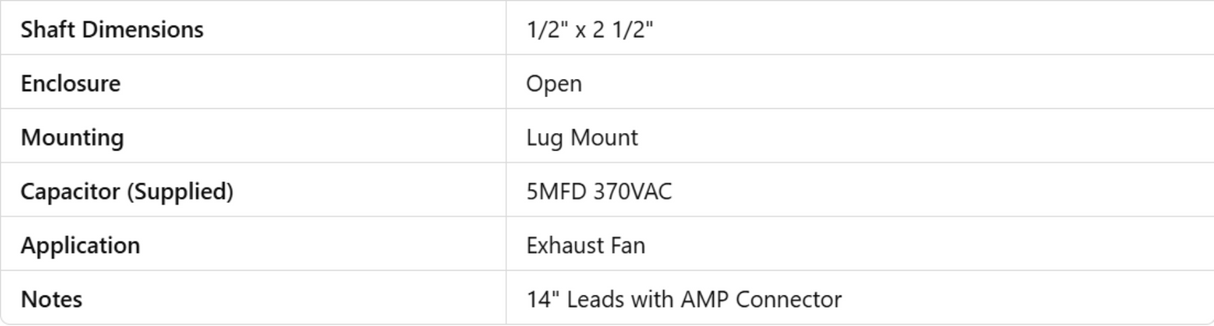

| Shaft Dimensions | 1/2" x 2 1/2" |
| Enclosure | Open |
| Mounting | Lug Mount |
| Capacitor (Supplied) | 5MFD 370VAC |
| Application | Exhaust Fan |
| Notes | 14" Leads with AMP Connector |
