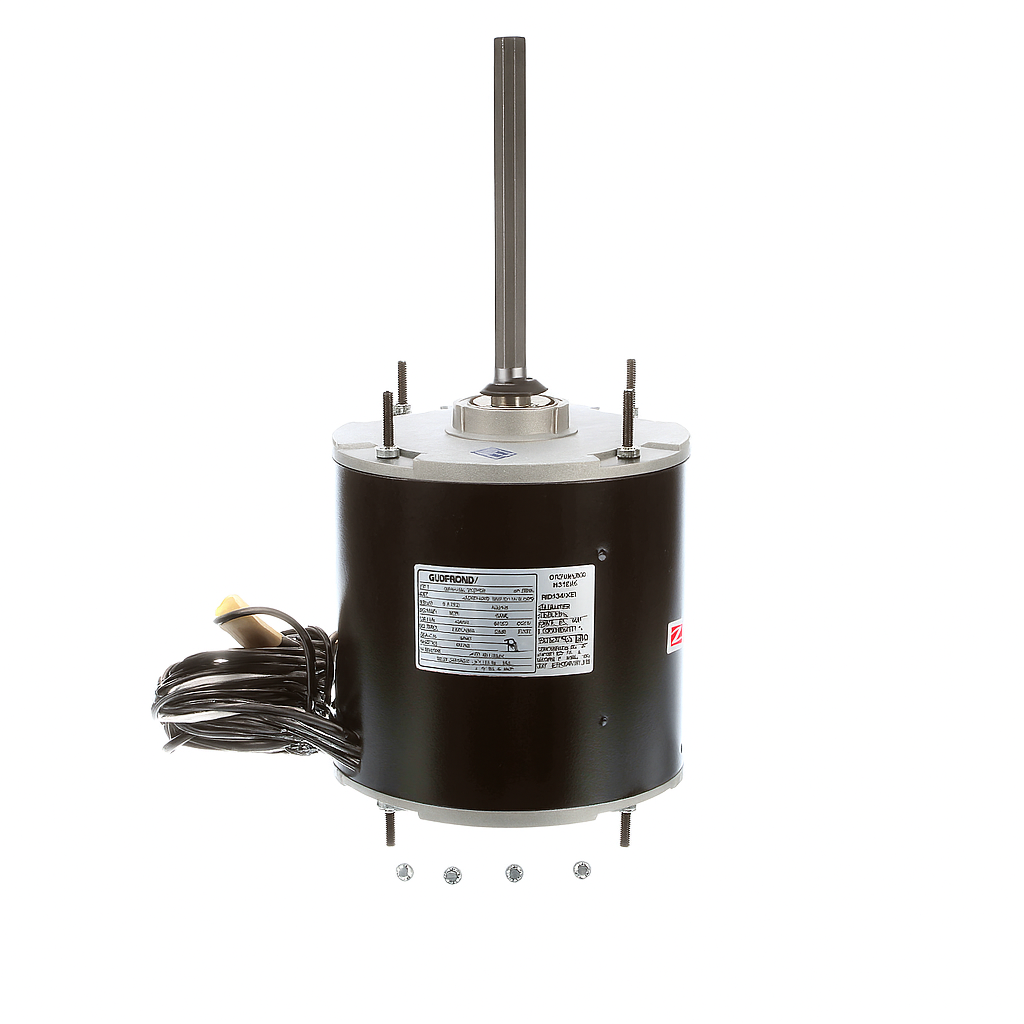

X5FE1056S, Xactone, 1/2Hp, 1075 RPM , 575V, Teao, Frame: 48, Century,

X5FE1056S, Xactone, replaces 5FE1056S, CENTURY, AO SMITH, SS3760, RMT0033, RefPlus

Replacement motor for A.O. Smith 9426, Century 168792, Fasco D2752, GE 3760 / 5KCP39PGT377, Carrier HC44GE575 / HC44GE576, Trane X70670711-010 and many other OEM motor part numbers.

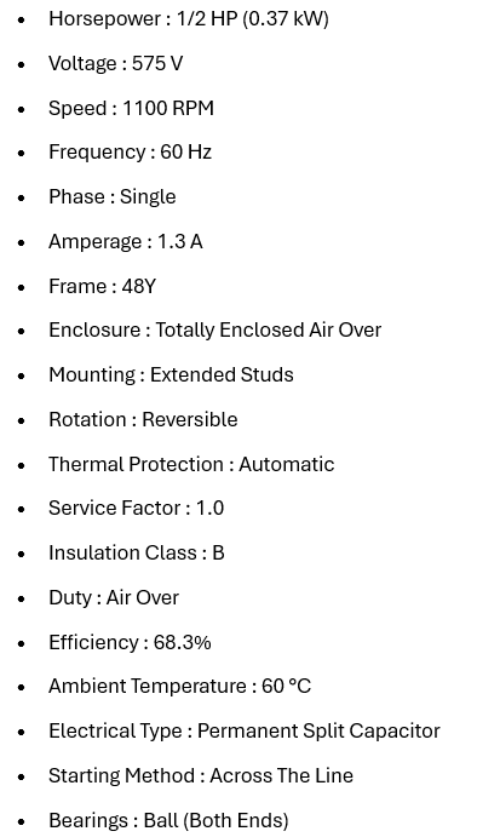

• Horsepower : 1/2 HP (0.37 kW)

• Voltage : 575 V

• Speed : 1100 RPM

• Frequency : 60 Hz

• Phase : Single

• Amperage : 1.3 A

• Frame : 48Y

• Enclosure : Totally Enclosed Air Over

• Mounting : Extended Studs

• Rotation : Reversible

• Thermal Protection : Automatic

• Service Factor : 1.0

• Insulation Class : B

• Duty : Air Over

• Efficiency : 68.3%

• Ambient Temperature : 60 °C

• Electrical Type : Permanent Split Capacitor

• Starting Method : Across The Line

• Bearings : Ball (Both Ends)

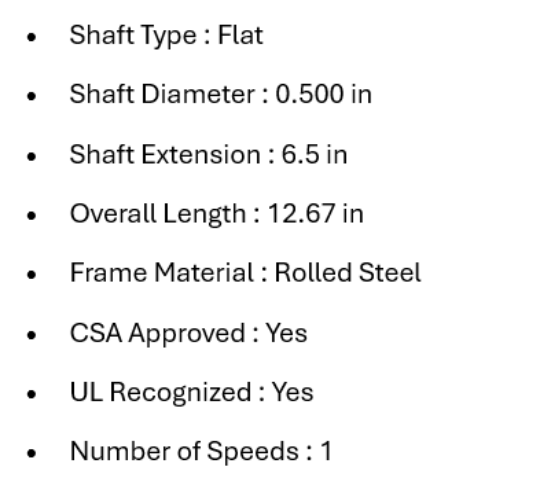

• Shaft Type : Flat

• Shaft Diameter : 0.500 in

• Shaft Extension : 6.5 in

• Overall Length : 12.67 in

• Frame Material : Rolled Steel

• CSA Approved : Yes

• UL Recognized : Yes

• Number of Speeds : 1

Cross References: A.O. Smith 9426, F48AJ72A01, F48H87A01, F48M48A50, F48SN6L42B1; Carrier HC44GE575, HC44GE576, HC44VL853; Century 5FE1056S, 5FE1056SV1, 168792; Emerson 1098H, K55HXJZA2361, K55ZZCME1567, K55ZZCMU1638, K55ZZCZP5712, K55ZZCZP6712, K55ZZELZ7411, K55ZZERS7488, K55ZZLHB3717, K55ZZLPA3835, K55ZZPYJ1757, K55ZZWNZ1358, K55ZZWPC1363, KA55ZZGNM1892, KA55ZZGNN1897; Fasco D2752; General Electric 3760, 5KCP39GGL415, 5KCP39MGM579, 5KCP39MGM854, 5KCP39MGU147, 5KCP39NGF294, 5KCP39PG250, 5KCP39PGF557, 5KCP39PGF577, 5KCP39PGH752, 5KCP39PGL666, 5KCP39PGT377, 5KCP39SGF967, 5KCP39SGL416; Lennox 28G8901, 37C8001, 79J8301; Marathon 48A11T497, 48A11T11034, 48A11T11043, X400-575, X453; Mars 03760; OmniDrive SS3760; Rheem 51-42534-03, SA70228; Rotom R42606; Trane 21C724128P01, C727586P02, X70670705-030, X70670711-010; Universal Electric 9426, HF3K034, HF3K7034, HF3L082, HF3T038; Wagner WG840760; York 024-27670-000; M0026-1.
