Xactone | SKU:
EMN-018925

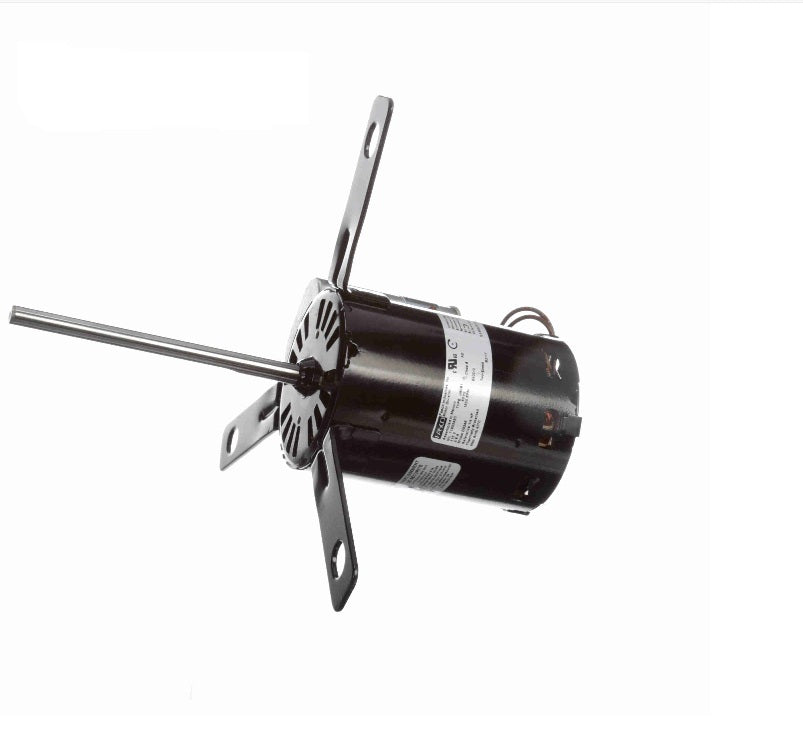

X56346, Xactone, 1/4Hp, 1550 Rpm, 115 Volts, Frame: 3.3, OAO, 56346-0,
Regular price
$295.00
Unit price
/
Unavailable
X56346, Xactone, 1/4Hp, 1550 Rpm, 115 Volts, Frame: 3.3, OAO, 56346-0, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X56346, Xactone, 1/4Hp, 1550 Rpm, 115 Volts, Frame: 3.3, OAO, 56346-0,
Regular price
$295.00
Unit price
/
Unavailable
Description
Description
X56346, Xactone, replaces 56346, 56346-0, PennBarry, OPV346, Century, D0346, Fasco

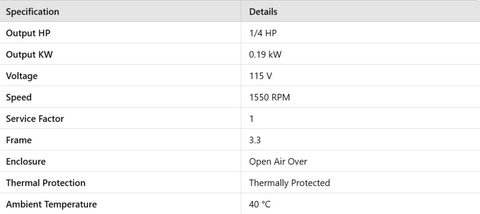

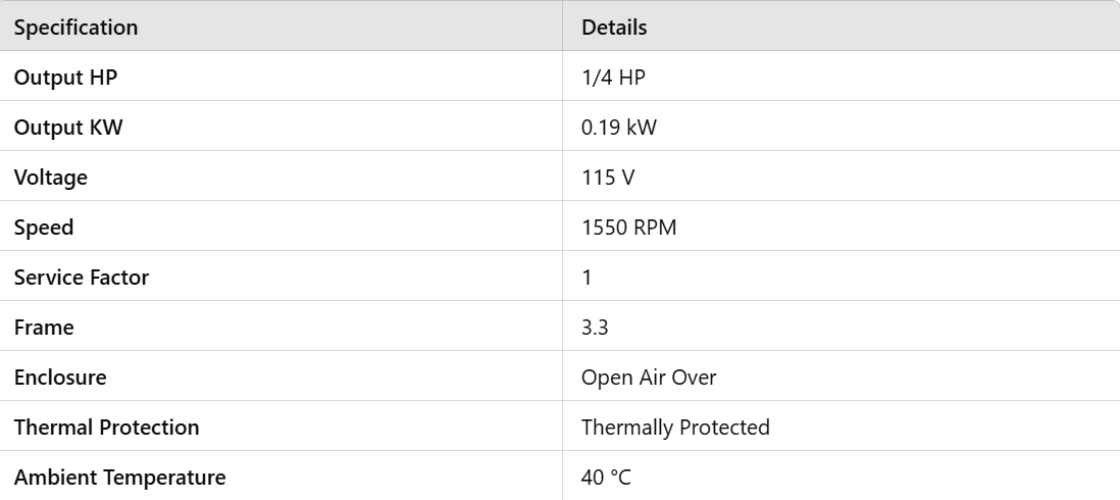

| Specification | Details |
|---|---|
| Output HP | 1/4 HP |
| Output KW | 0.19 kW |
| Voltage | 115 V |
| Speed | 1550 RPM |
| Service Factor | 1 |
| Frame | 3.3 |
| Enclosure | Open Air Over |
| Thermal Protection | Thermally Protected |
| Ambient Temperature | 40 °C |

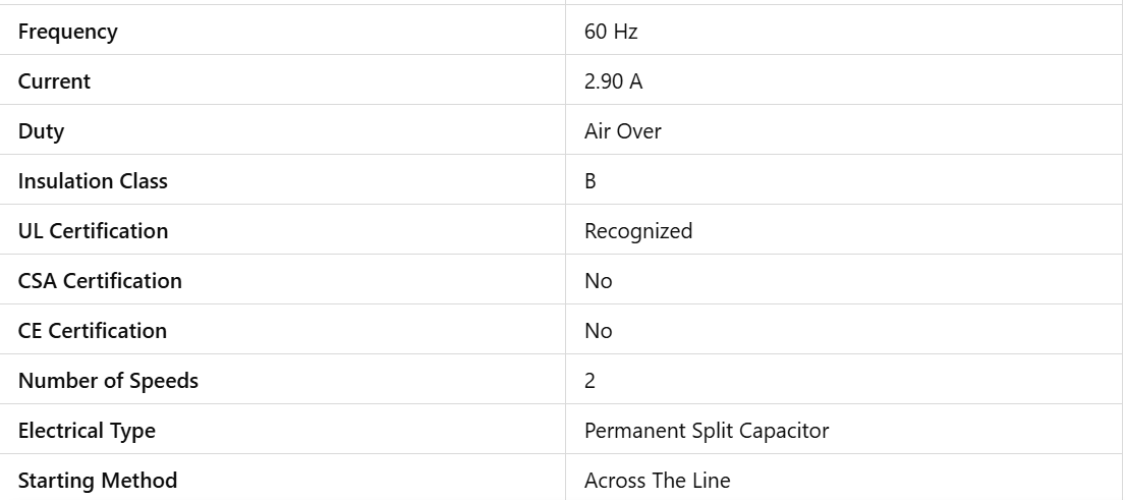

| Frequency | 60 Hz |
| Current | 2.90 A |
| Duty | Air Over |
| Insulation Class | B |
| UL Certification | Recognized |
| CSA Certification | No |
| CE Certification | No |
| Number of Speeds | 2 |
| Electrical Type | Permanent Split Capacitor |
| Starting Method | Across The Line |

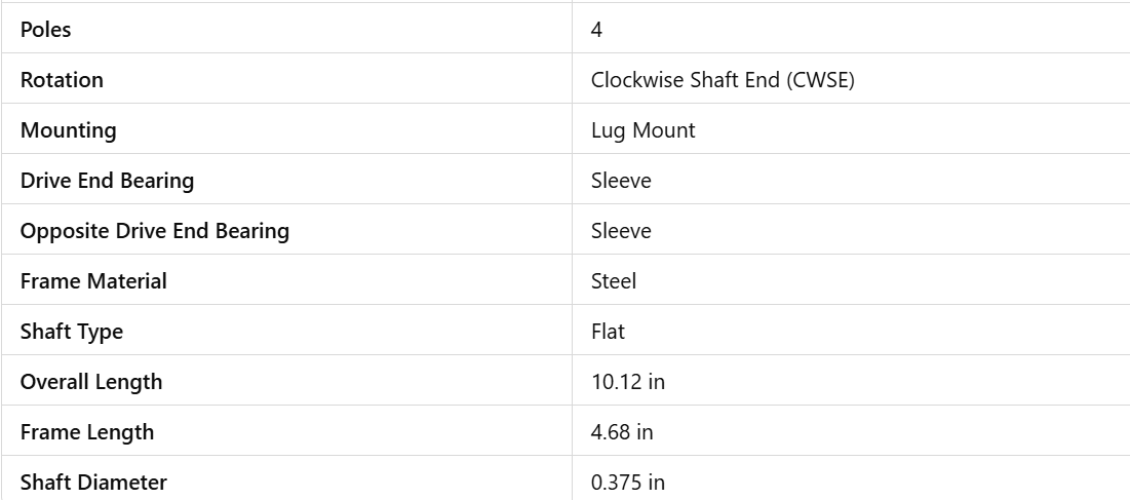

| Poles | 4 |
| Rotation | Clockwise Shaft End (CWSE) |
| Mounting | Lug Mount |
| Drive End Bearing | Sleeve |
| Opposite Drive End Bearing | Sleeve |
| Frame Material | Steel |
| Shaft Type | Flat |
| Overall Length | 10.12 in |
| Frame Length | 4.68 in |
| Shaft Diameter | 0.375 in |
