Xactone | SKU:
EMN-018892

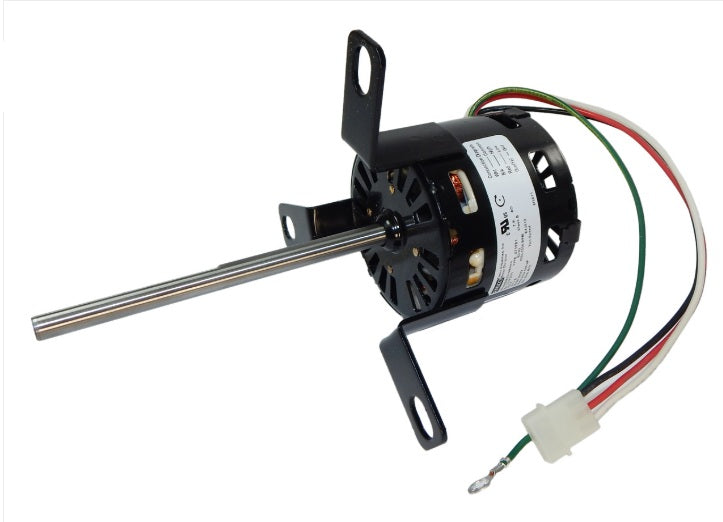

X56343, Xactone, 1/40Hp, 1550 Rpm, 115 Volts, Frame:3.3, OAO, 56343-0,
Regular price
$239.00
Unit price
/
Unavailable
X56343, Xactone, 1/40Hp, 1550 Rpm, 115 Volts, Frame:3.3, OAO, 56343-0, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X56343, Xactone, 1/40Hp, 1550 Rpm, 115 Volts, Frame:3.3, OAO, 56343-0,
Regular price
$239.00
Unit price
/
Unavailable
Description
Description
X56343, Xactone, replaces 56343-0, 56343, PennBarry, D0343, Fasco

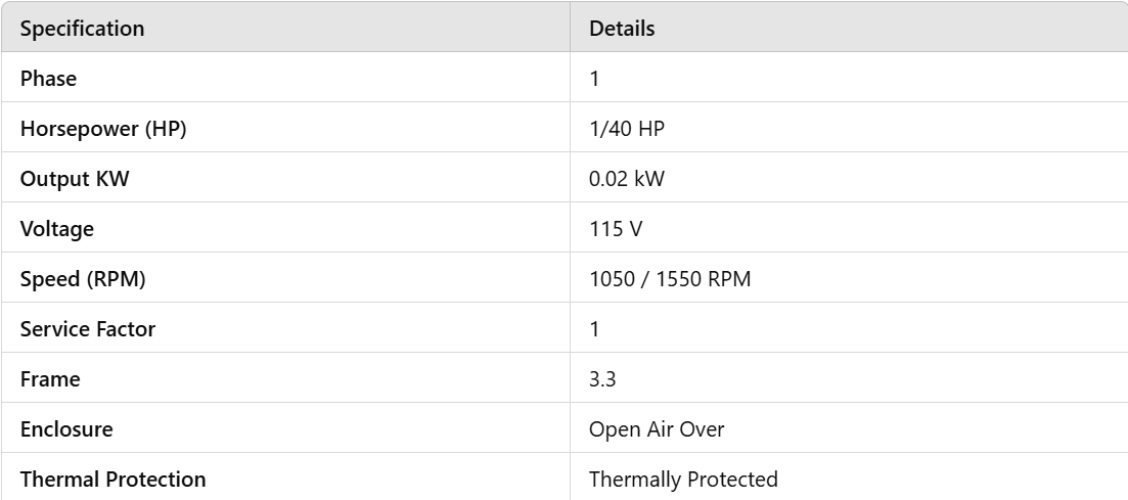

| Specification | Details |
|---|---|
| Phase | 1 |
| Horsepower (HP) | 1/40 HP |
| Output KW | 0.02 kW |
| Voltage | 115 V |
| Speed (RPM) | 1050 / 1550 RPM |
| Service Factor | 1 |
| Frame | 3.3 |
| Enclosure | Open Air Over |
| Thermal Protection | Thermally Protected |

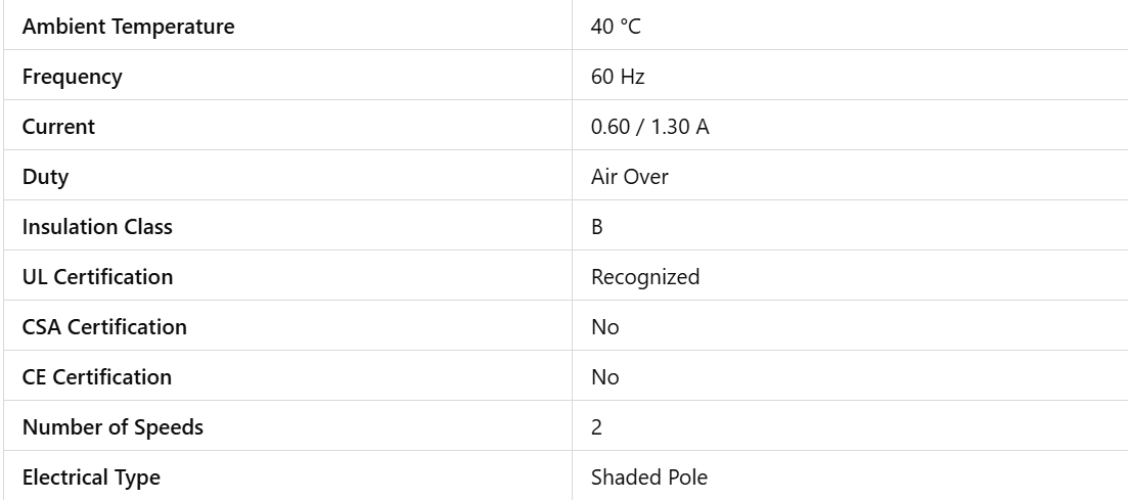

| Ambient Temperature | 40 °C |
| Frequency | 60 Hz |
| Current | 0.60 / 1.30 A |
| Duty | Air Over |
| Insulation Class | B |
| UL Certification | Recognized |
| CSA Certification | No |
| CE Certification | No |
| Number of Speeds | 2 |
| Electrical Type | Shaded Pole |

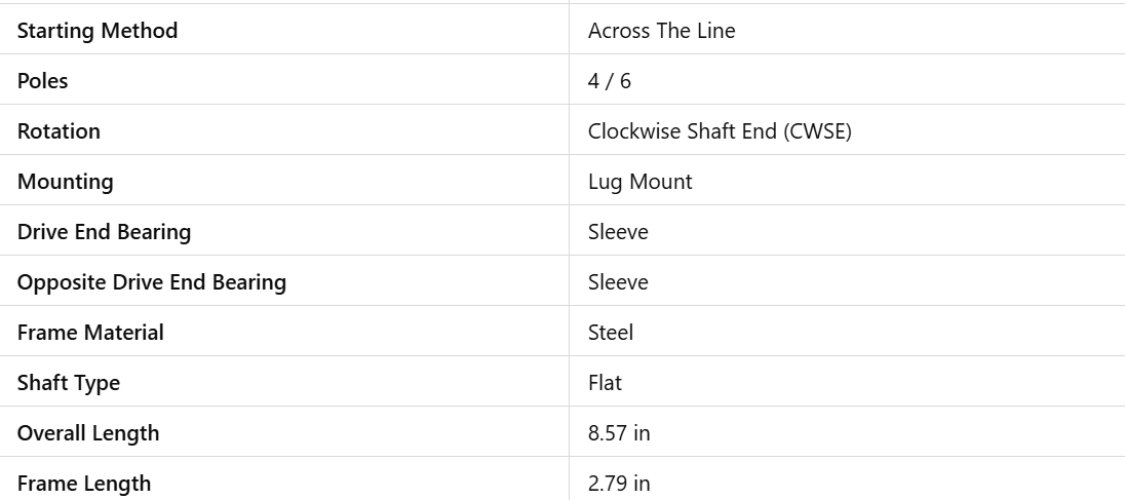

| Starting Method | Across The Line |
| Poles | 4 / 6 |
| Rotation | Clockwise Shaft End (CWSE) |
| Mounting | Lug Mount |
| Drive End Bearing | Sleeve |
| Opposite Drive End Bearing | Sleeve |
| Frame Material | Steel |
| Shaft Type | Flat |
| Overall Length | 8.57 in |
| Frame Length | 2.79 in |
| Shaft Diameter | 0.375 in |
| Shaft Extension | 5.50 in |
