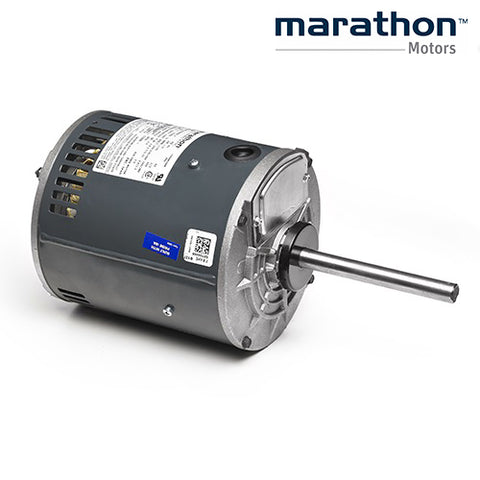

X524, Marathon, 1.5 HP, 1200 Rpm, 600V, FR:56, Y056T11O5307, Condenser, 3ph

MARATHON

$659.41

X524, MARATHON, Y056T11O5307, REPLACE H963, CENTURY

Nameplate Specifications

Output HP :	1.50 HP	Output KW :	1.1 kW
Frequency :	60 Hz	Voltage :	575 V
Current :	2.2 A	Speed :	1140 RPM
Service Factor :	1	Phase :	3
Efficiency :	78.5 %	Duty :	Continous
Insulation Class :	H	Design Code :	NO DESIGN CODE
KVA Code :	J	Frame :	56Z
Enclosure :	Open Air Over	Overload Protector :	Automatic
Ambient Temperature :	70 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized ( Not Protector)
CSA :	Y	CE :	N
IP Code :	10

Technical Specifications

Electrical Type :	Squirrel Cage Induction Run	Starting Method :	Across The Line
Poles :	6	Rotation :	Reversible
Mounting :	Round Belly Band	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	Single Special Extension
Overall Length :	15.68 in	Frame Length :	8.56 in
Shaft Diameter :	0.625 in	Shaft Extension :	5.06 in
Assembly/Box Mounting :	F1 Only	UPC :	722856038487
Weight :	37.00 LB
