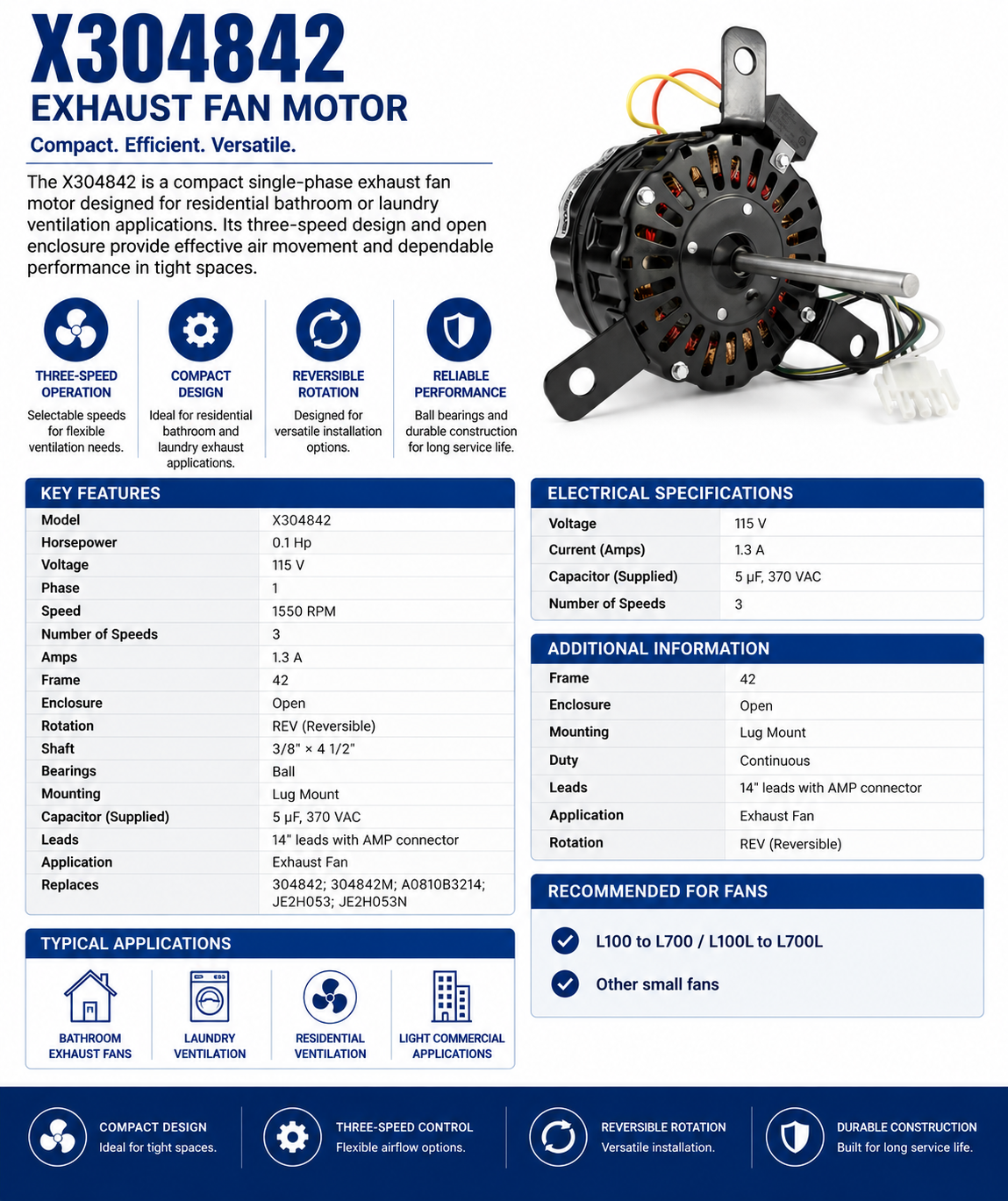

X304842, 0.1Hp, 1550RPM, 115V, 1Ph, 60Hz, Open (REV), Frame 42

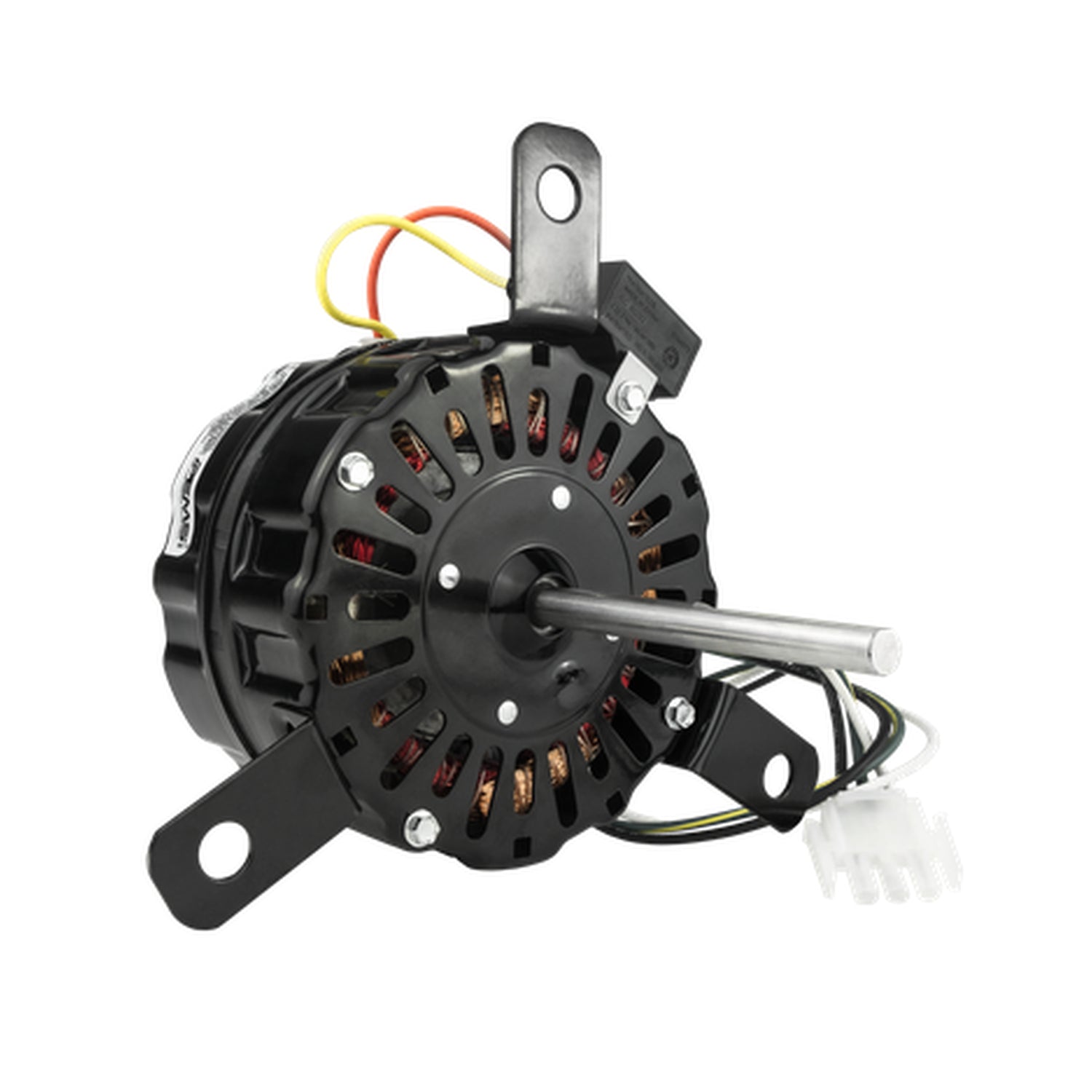

This compact single-phase exhaust fan motor delivers moderate airflow for residential bathroom or laundry ventilation applications, featuring a three-speed design and open enclosure for effective air movement.

KEY FEATURES

• Model: X304842

• Horsepower: 0.1 Hp

• Voltage: 115 V

• Speed: 1550 RPM

• Frame: 42

• Enclosure: Open

• Phase: 1

• Rotation: REV (reversible)

• Number of Speeds: 3

• Amps: 1.3 A

• Shaft: 3/8" × 4 1/2"

• Bearings: Ball

• Mounting: Lug Mount

• Capacitor (Supplied): 5 µF, 370 VAC

• Application: Exhaust Fan

• Notes: 14" leads with AMP connector

• Replaces: 304842; 304842M; A0810B3214; JE2H053; JE2H053N

This motor’s compact size, three-speed capability, and reversible open design make it well-suited for versatile exhaust fan installations in tight residential spaces.
