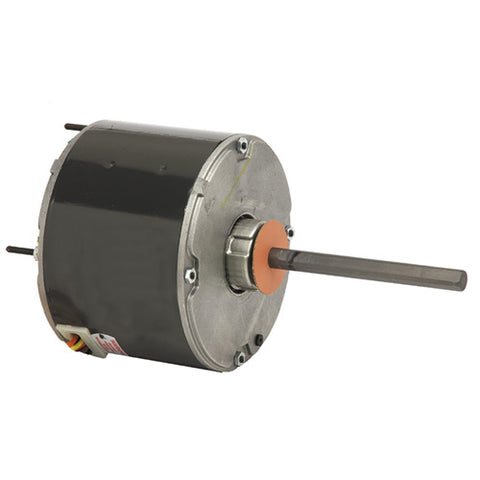

X1296, K055PUK1683012B, 1/3Hp, 825 Rpm, 575V, Frame:48, Teao,F48T33A50,

X1296, K055PUK1683012B, Us motors, replaces SS3757, Omnidrive, F48T33A50, Ao smith, Us Motors K55HXRPU-2981, SA71296, YDK140/45-8-245H1,X1296, Y7S859F0011, 6007533, E256965,

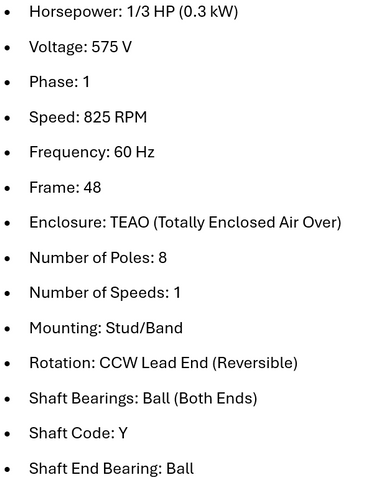

• Horsepower: 1/3 HP (0.3 kW)

• Voltage: 575 V

• Phase: 1

• Speed: 825 RPM

• Frequency: 60 Hz

• Frame: 48

• Enclosure: TEAO (Totally Enclosed Air Over)

• Number of Poles: 8

• Number of Speeds: 1

• Mounting: Stud/Band

• Rotation: CCW Lead End (Reversible)

• Shaft Bearings: Ball (Both Ends)

• Shaft Code: Y

• Shaft End Bearing: Ball

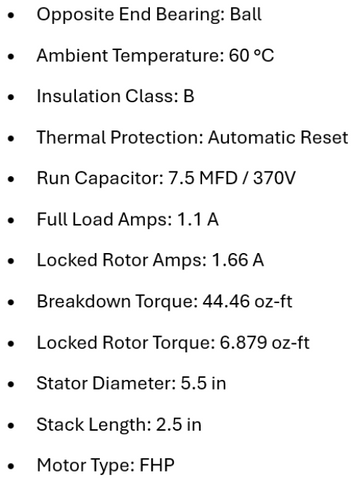

• Opposite End Bearing: Ball

• Ambient Temperature: 60 °C

• Insulation Class: B

• Thermal Protection: Automatic Reset

• Run Capacitor: 7.5 MFD / 370V

• Full Load Amps: 1.1 A

• Locked Rotor Amps: 1.66 A

• Breakdown Torque: 44.46 oz-ft

• Locked Rotor Torque: 6.879 oz-ft

• Stator Diameter: 5.5 in

• Stack Length: 2.5 in

• Motor Type: FHP
