Xactone | SKU:
EMN-017370

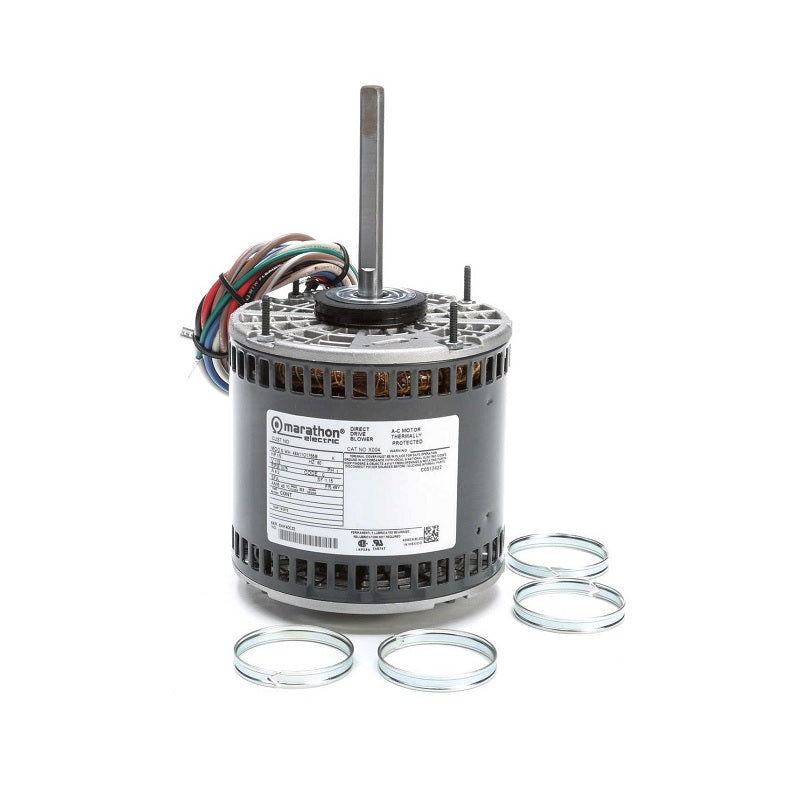

X004, Marathon, 1/2Hp, 1075/3Spd, 115V, Fr:48, 048A11O1755, FML1056, X033, 048A11O1674
Regular price
$312.80
Unit price
/
Unavailable
X004, Marathon, 1/2Hp, 1075/3Spd, 115V, Fr:48, 048A11O1755, FML1056, X033, 048A11O1674 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
X004, Marathon, 1/2Hp, 1075/3Spd, 115V, Fr:48, 048A11O1755, FML1056...
Regular price
$312.80
Unit price
/
Unavailable
Description
Description

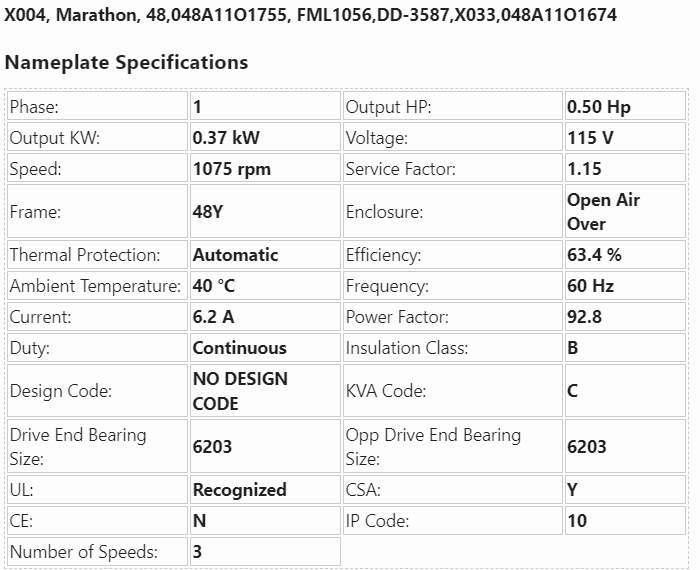

X004, Marathon, 48,048A11O1755, FML1056,DD-3587,X033,048A11O1674
Nameplate Specifications
| Phase: | 1 | Output HP: | 0.50 Hp |
| Output KW: | 0.37 kW | Voltage: | 115 V |
| Speed: | 1075 rpm | Service Factor: | 1.15 |
| Frame: | 48Y | Enclosure: | Open Air Over |
| Thermal Protection: | Automatic | Efficiency: | 63.4 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 6.2 A | Power Factor: | 92.8 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | NO DESIGN CODE | KVA Code: | C |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 10 |
| Number of Speeds: | 3 |

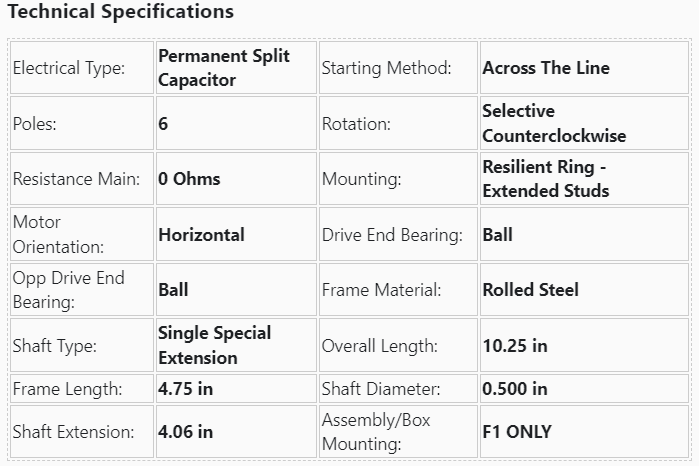

Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Ring - Extended Studs |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Overall Length: | 10.25 in |
| Frame Length: | 4.75 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 4.06 in | Assembly/Box Mounting: | F1 ONLY |

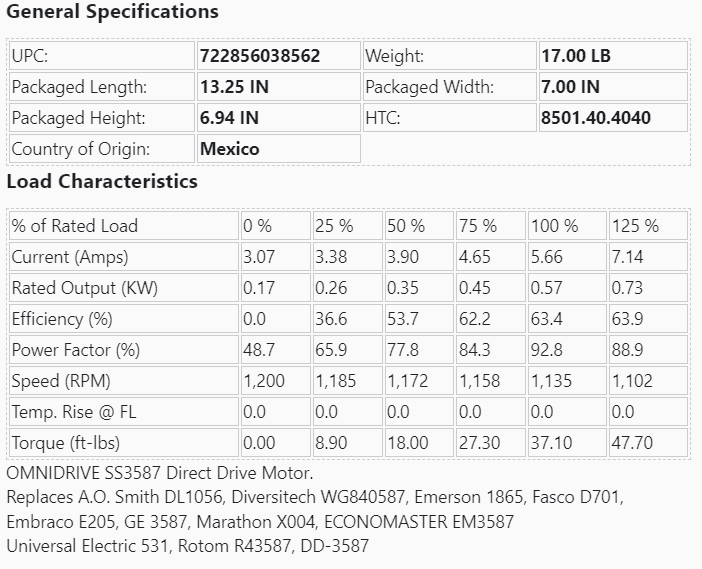

General Specifications
| UPC: | 722856038562 | Weight: | 17.00 LB |
| Packaged Length: | 13.25 IN | Packaged Width: | 7.00 IN |
| Packaged Height: | 6.94 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % |
| Current (Amps) | 3.07 | 3.38 | 3.90 | 4.65 | 5.66 | 7.14 |
| Rated Output (KW) | 0.17 | 0.26 | 0.35 | 0.45 | 0.57 | 0.73 |
| Efficiency (%) | 0.0 | 36.6 | 53.7 | 62.2 | 63.4 | 63.9 |
| Power Factor (%) | 48.7 | 65.9 | 77.8 | 84.3 | 92.8 | 88.9 |
| Speed (RPM) | 1,200 | 1,185 | 1,172 | 1,158 | 1,135 | 1,102 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Torque (ft-lbs) | 0.00 | 8.90 | 18.00 | 27.30 | 37.10 | 47.70 |
OMNIDRIVE SS3587 Direct Drive Motor.
Replaces A.O. Smith DL1056, Diversitech WG840587, Emerson 1865, Fasco D701, Embraco E205, GE 3587, Marathon X004, ECONOMASTER EM3587
Universal Electric 531, Rotom R43587, DD-3587
