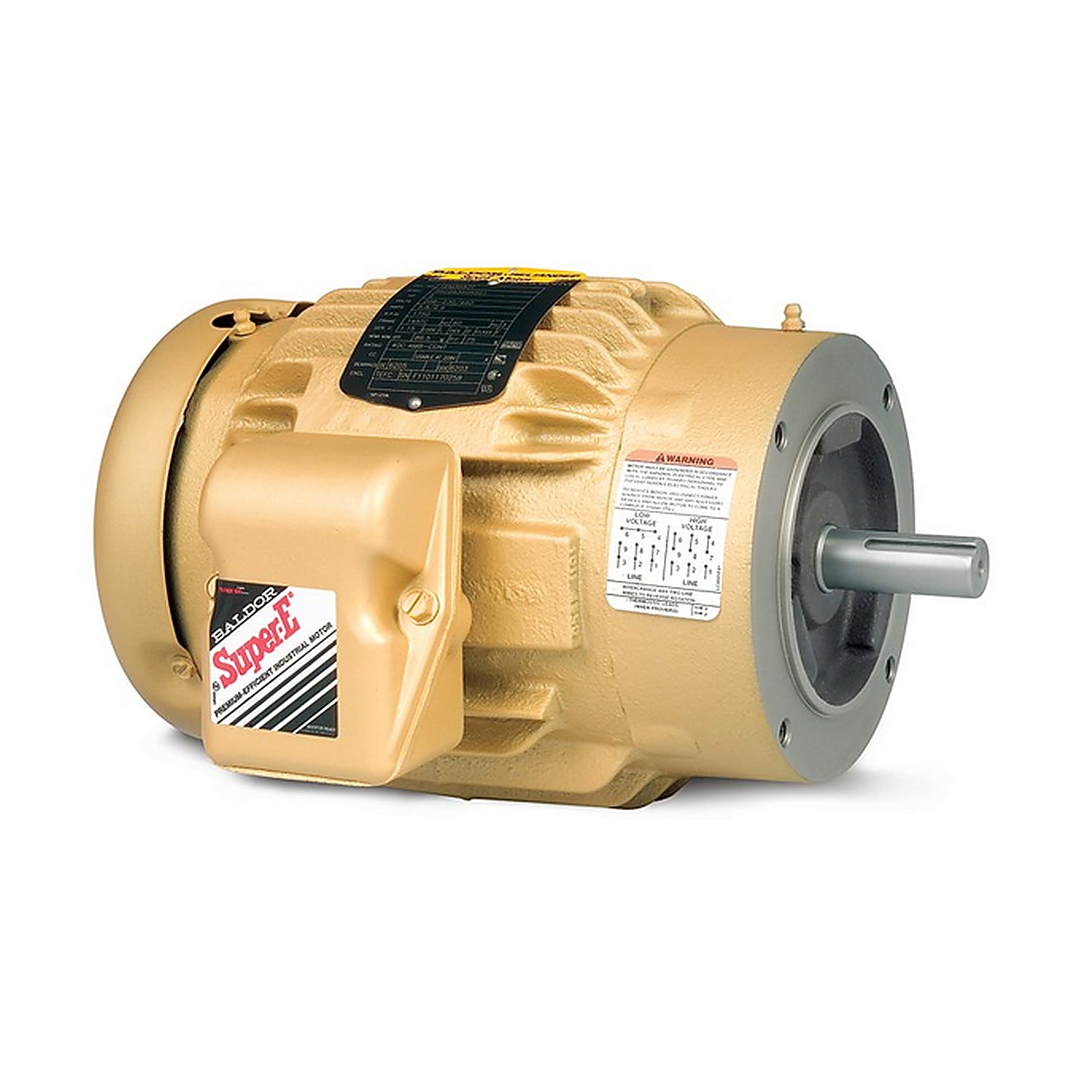

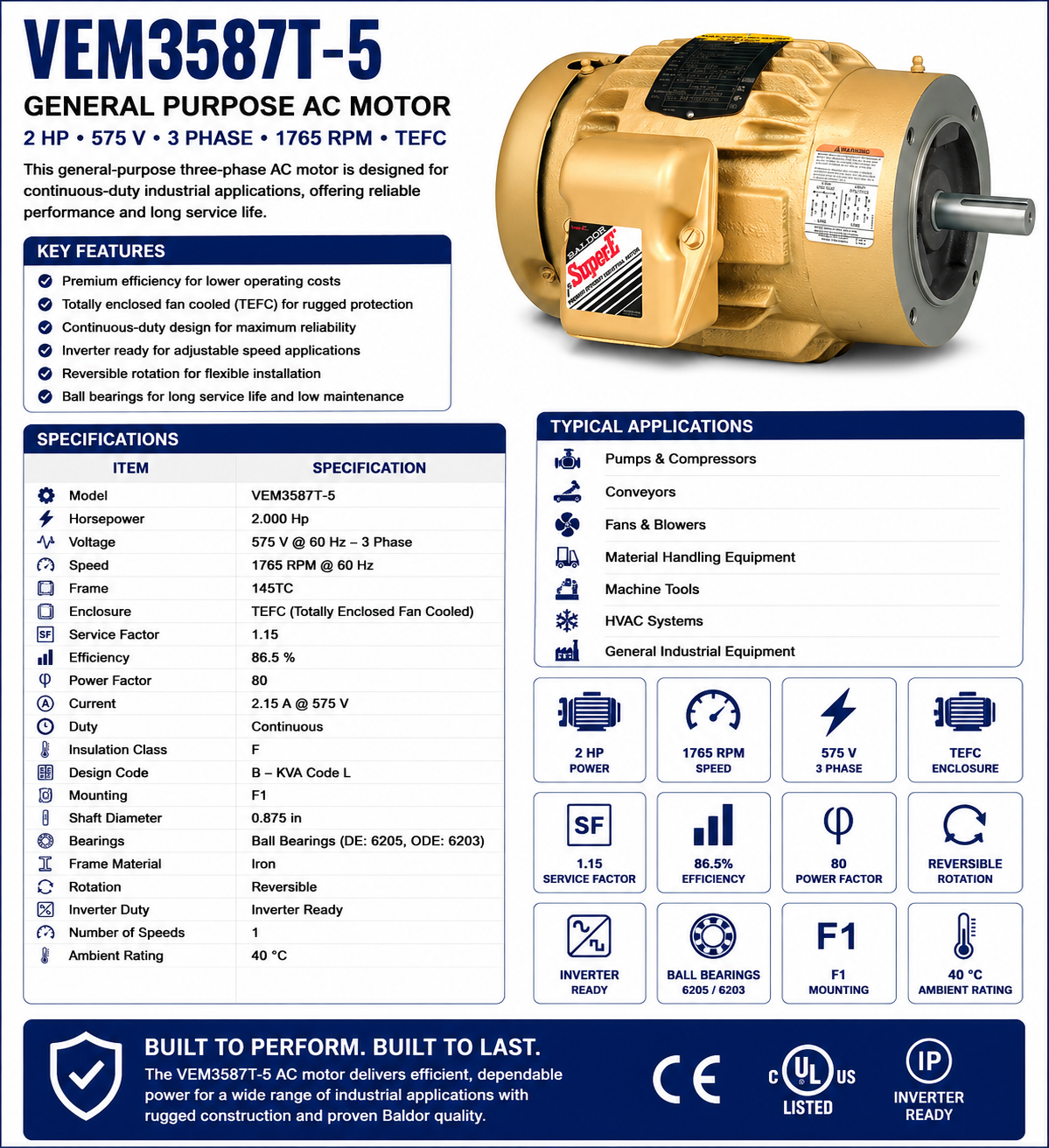

VEM3587T-5, 2Hp, 1765 RPM, 575 V, 3Ph, 60 Hz, TEFC, Frame 145TC, 05C053X552G1

This general-purpose three-phase AC motor is designed for continuous-duty industrial applications, offering 2 Hp output at 60 Hz with TEFC (Totally Enclosed Fan Cooled) protection in a 145TC frame.

KEY FEATURES

• Model: VEM3587T-5

• Horsepower: 2.000 Hp

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1765 RPM @ 60 Hz

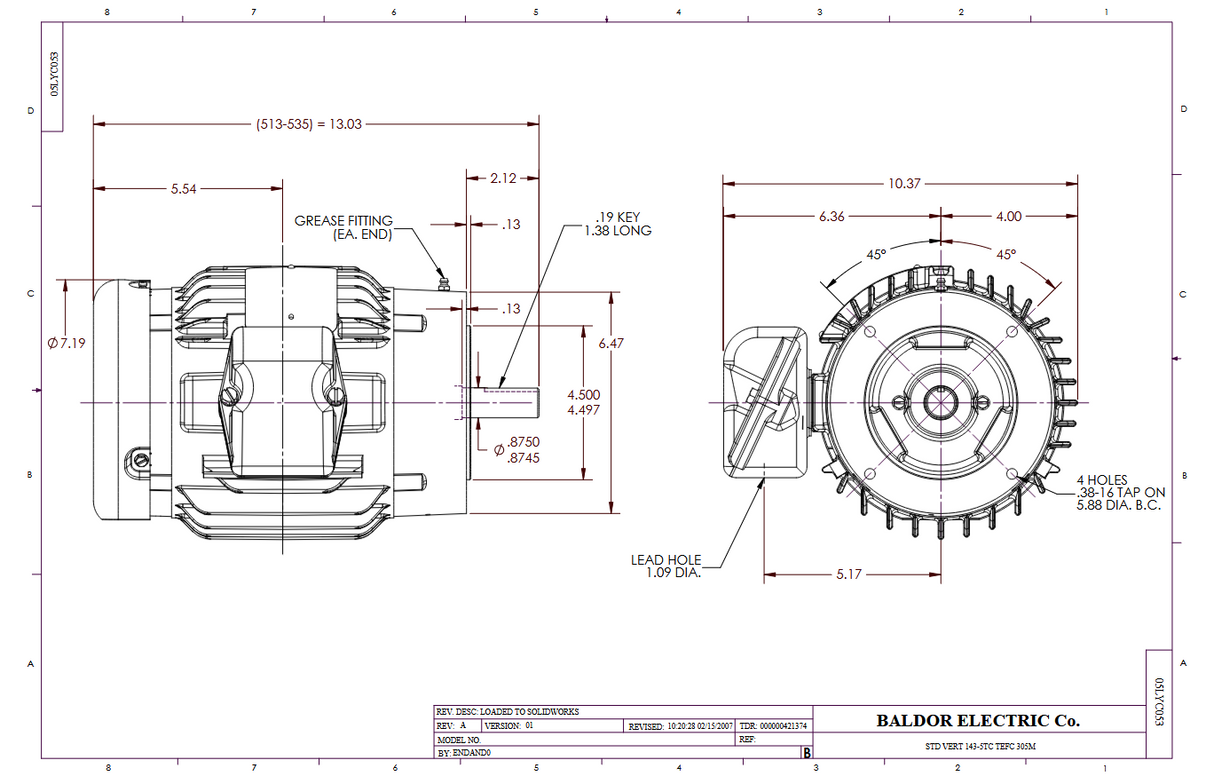

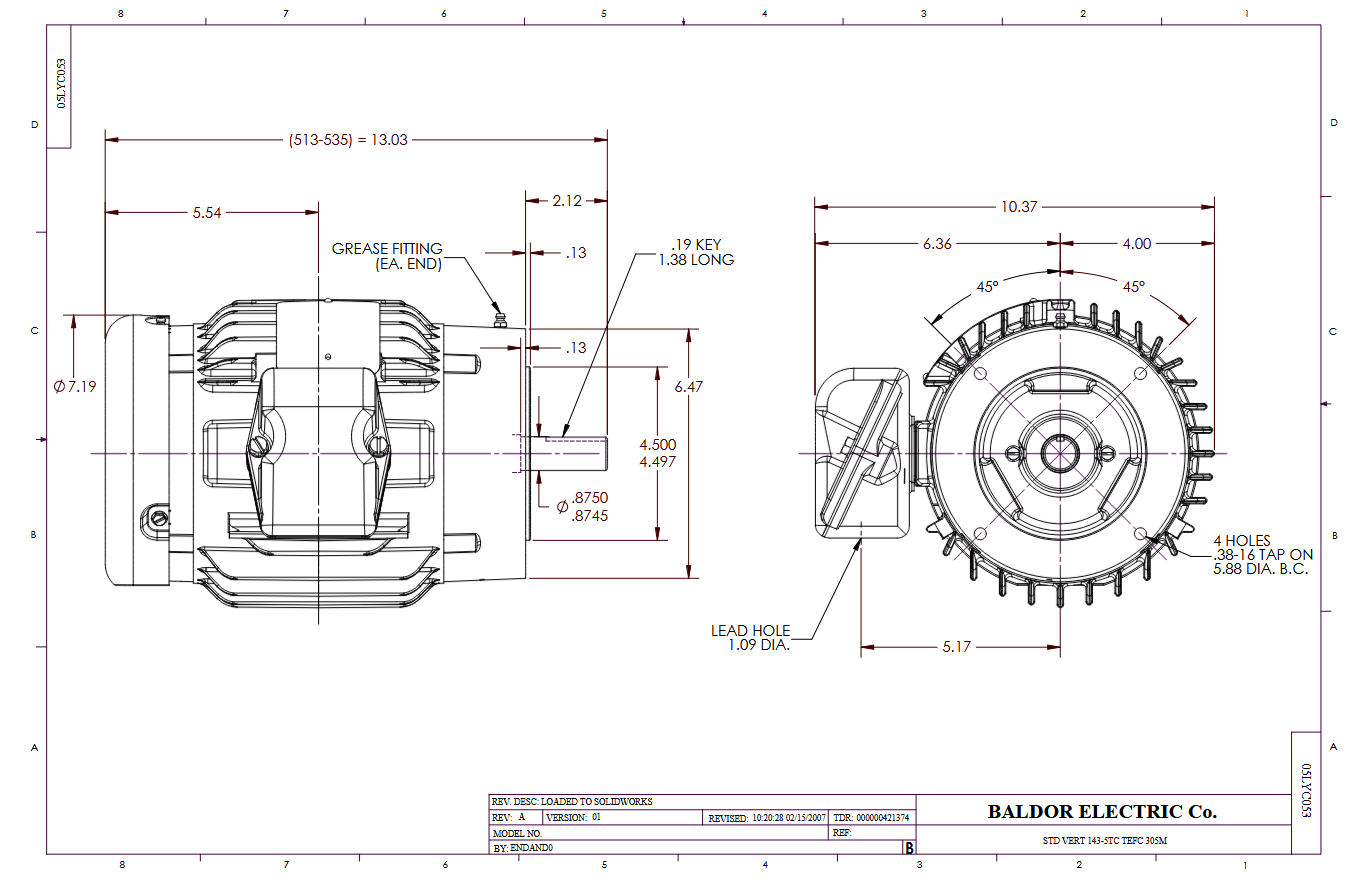

• Frame: 145TC

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 86.5 %

• Power Factor: 80

• Current: 2.15 A @ 575 V

• Duty: Continuous

• Insulation Class: F

• Design Code: B – KVA Code L

• Mounting: F1

• Shaft: 0.875 in diameter

• Bearings: Ball Bearings (DE: 6205, ODE: 6203)

• Frame Material: Iron

• Rotation: Reversible

• Inverter Duty: Inverter Ready

• Number of Speeds: 1

• Ambient Rating: 40 °C
