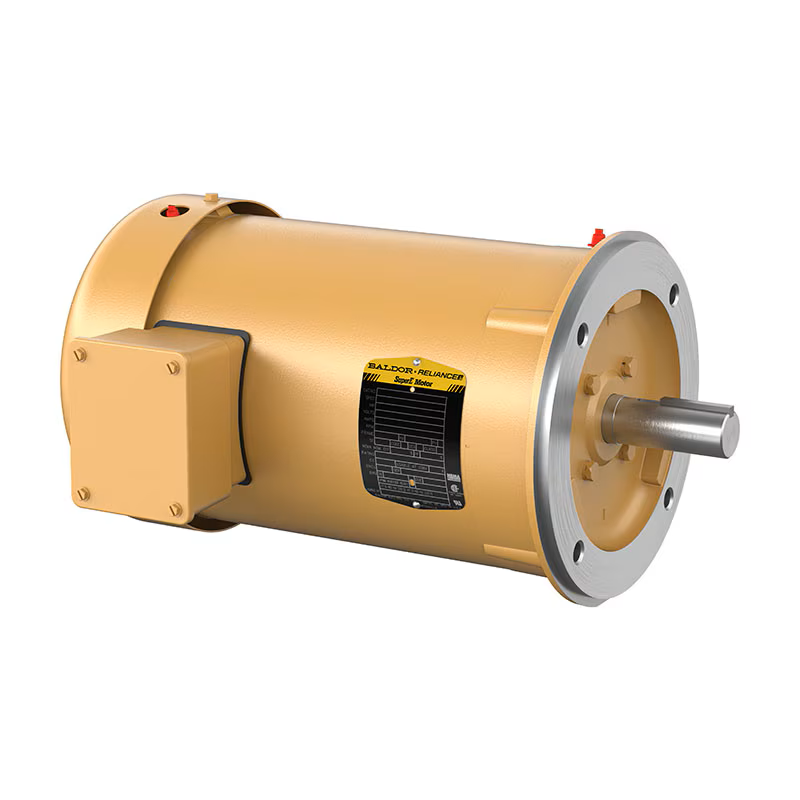

VEM3550, General Purpose Motors, 1.5Hp, 3500 RPM, 208-230/460V, 3Ph, 60Hz, Frame 56C, TEFC, F1, 35J302M760

VEM3550, General Purpose Motors, 1.5Hp, 3500 RPM, 208-230/460V,  3Ph, 60Hz, Frame 56C, TEFC, F1, 35J302M760

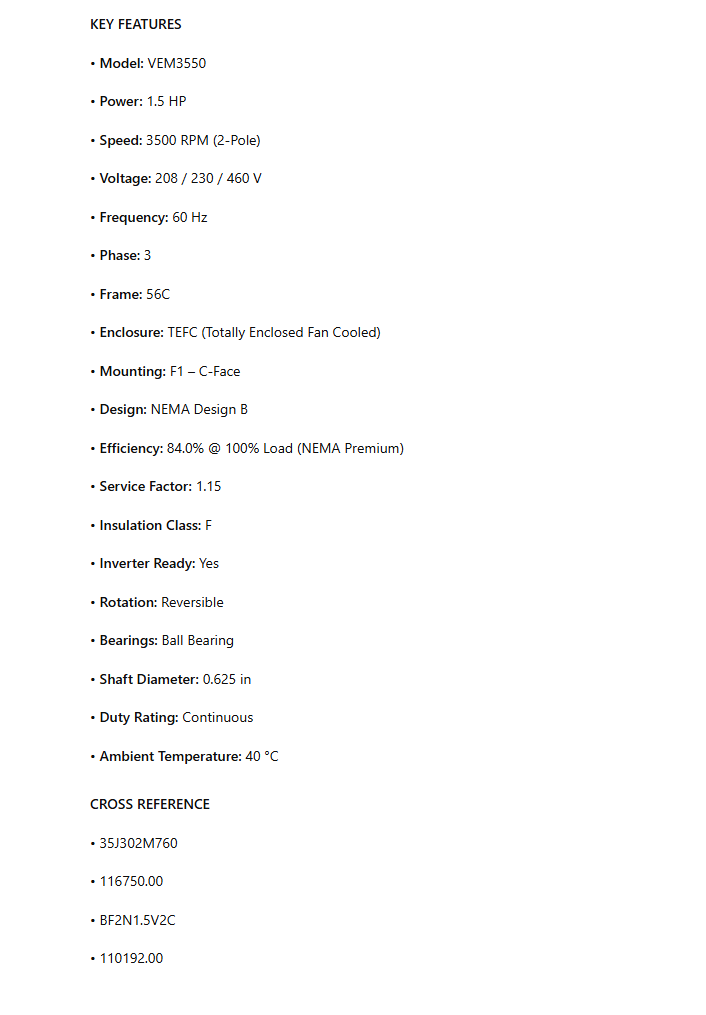

KEY FEATURES

• Model: VEM3550

• Power: 1.5 HP

• Speed: 3500 RPM (2-Pole)

• Voltage: 208 / 230 / 460 V

• Frequency: 60 Hz

• Phase: 3

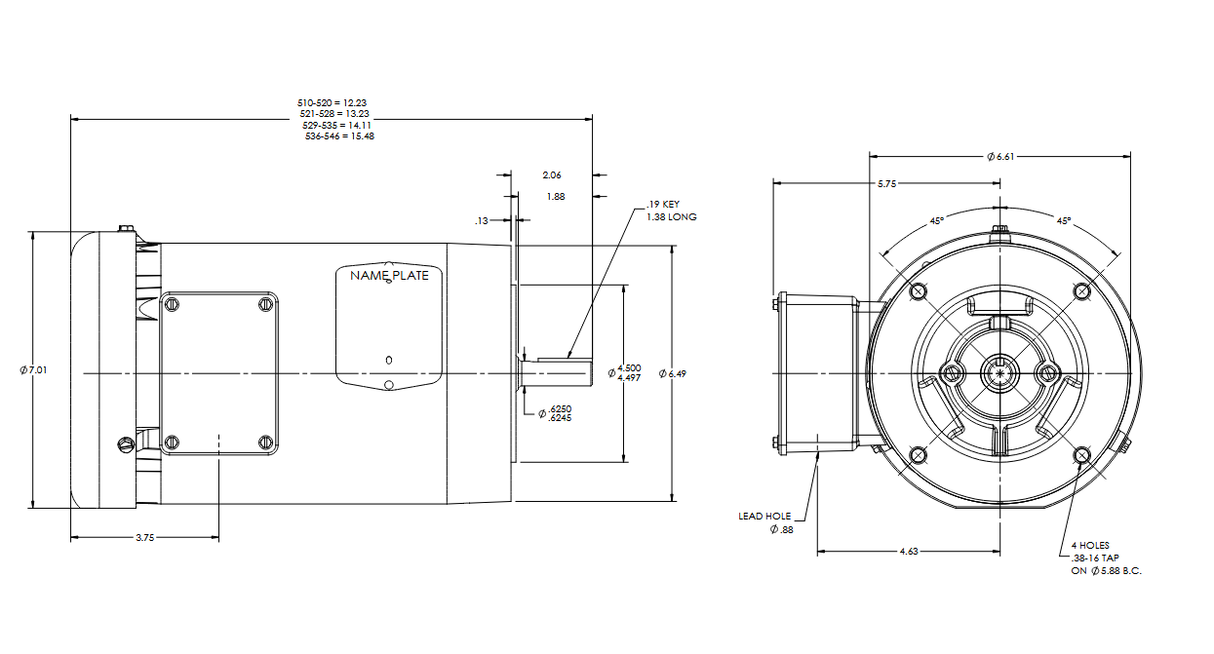

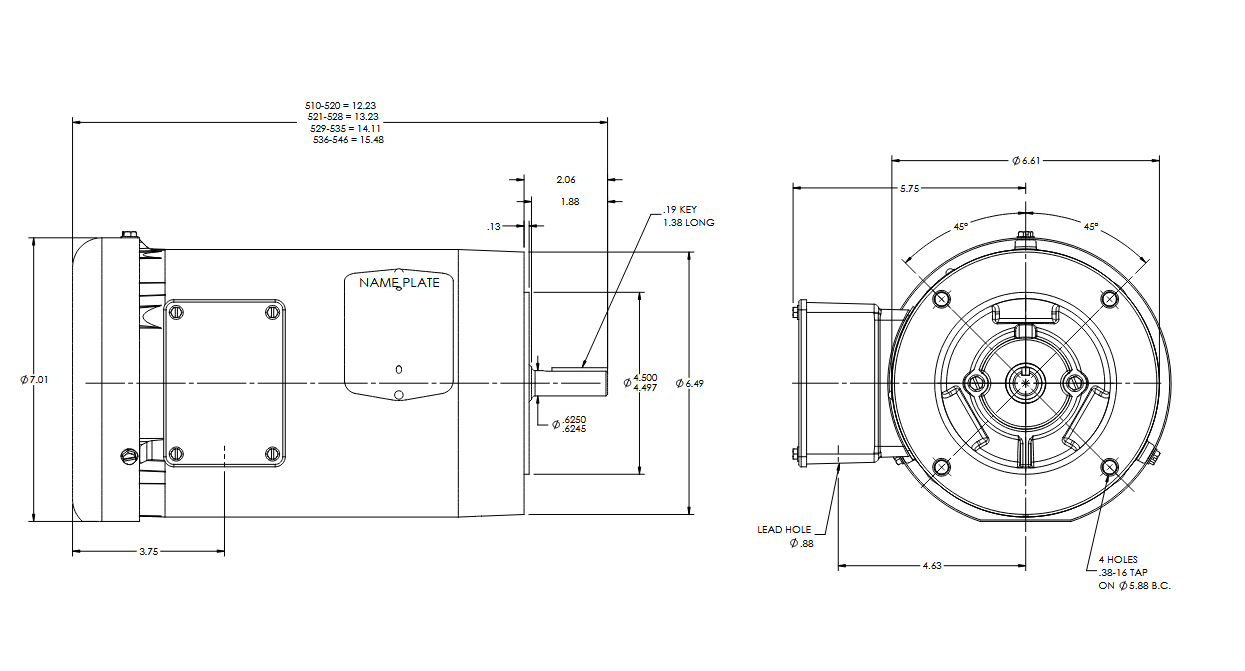

• Frame: 56C

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Mounting: F1 – C-Face

• Design: NEMA Design B

• Efficiency: 84.0% @ 100% Load (NEMA Premium)

• Service Factor: 1.15

• Insulation Class: F

• Inverter Ready: Yes

• Rotation: Reversible

• Bearings: Ball Bearing

• Shaft Diameter: 0.625 in

• Duty Rating: Continuous

• Ambient Temperature: 40 °C

CROSS REFERENCE

• 35J302M760

• 116750.00

• BF2N1.5V2C

• 110192.00
