FUJI ELECTRIC  |  SKU: EMN-016924

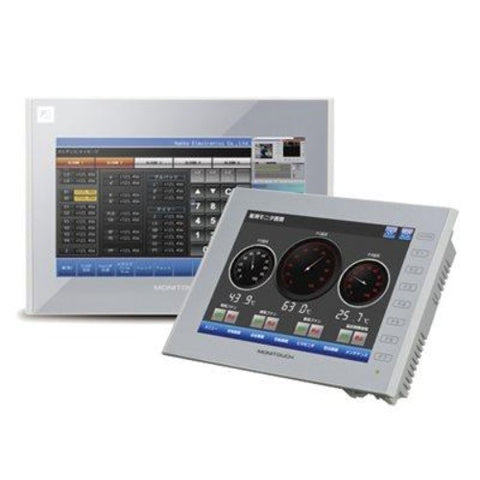

V9070IWRLD, Fuji Electric, Touch screen panel,HMI,10" WVGA TFT, 16.7M color,

$5,530.02
shipping

Estimate shipping

Description
  • V9070IWRLD, Fuji Electric,
  • Model :V9070iWRLD
  • Display Size :7.0"
  • Resolution :800 x 480
  • Touch Screen :Analog
  • Device Specification :Analog Touch, Builtin Lan Port, extended wire LAN I/F, 24VDC
  • Bezel Color :Silver
  • Serial (Dsub9pins) :RS-232C, RS-485(two-wire system), RS-422(four-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
  • Serial(RJ45) :2 channel
  • Wireless LAN :Complies with IEEE802.11b/g/n(2.4GHz)
  • Wired LAN :2ch, Baud rate: 100Mbps, 10Mbps
  • Audio Output :NA
  • Power Supply :24VDC
  • Standards & Enclosure :Front: IP65 equivalent (when using waterproof gasket), IP40 equivalent (when not using waterproof gasket), Back: IP20 equivalent
  • Dimensions :201.6mm x 147.6mm x 60.3mm
  • Weight :3
