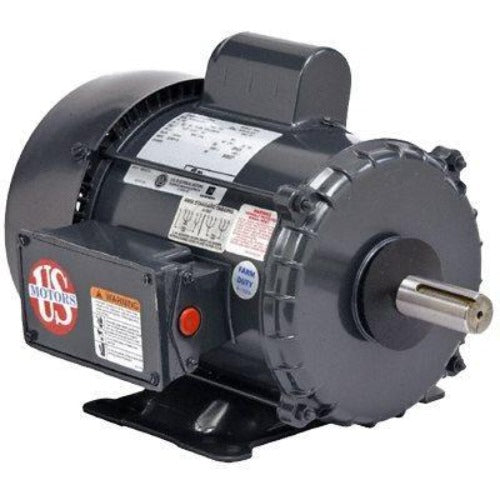

Us motors, FD13CM2P, 1/3 hp, 1800 rpm, 115/230v, fr:56, tefc, fd161C,

US MOTORS

$353.30

FD13CM2P, REPLACED F101 MARATHON, 056C17F5324,

Horsepower :1/3
Voltage :115/230
Amps :6.60/3.30
RPM :1800
Frequency :60 Hz
"C" Dim. :10-7/8"
Enclosure :Totally Enclosed Fan Cooled
Type :Capacitor Start
Speeds :1
Diameter :6-1/2"
Frame :56
Efficiency :59.5%
Bearings :Ball
Rotation :Reversible
Protector :Manual
Service Factor :1.15
Phase :1
Ambient Temp. :40°C
Feature(s) :Class 'B' Insulation, Rigid Base
Weight (lbs.) :25
