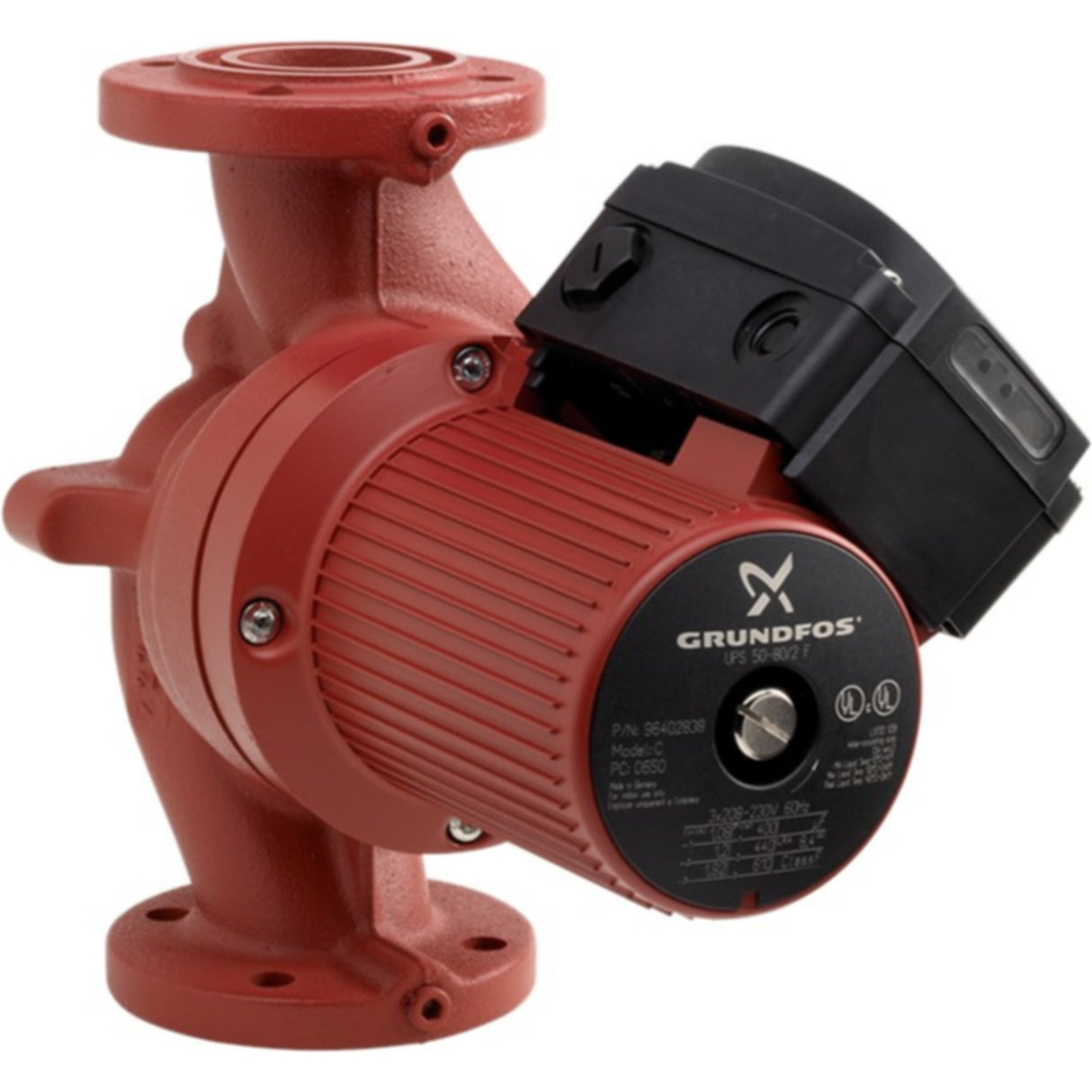

UP 43-110 F, 0.75Hp, 590W, 115/230 V, 1 Ph, 60 Hz, Cast Iron Flanged Circulator Pump, 96439643

This single-speed inline circulator pump is engineered for hydronic heating and cooling systems, offering reliable, maintenance‑free operation with a built‑in motor protection and quiet performance.

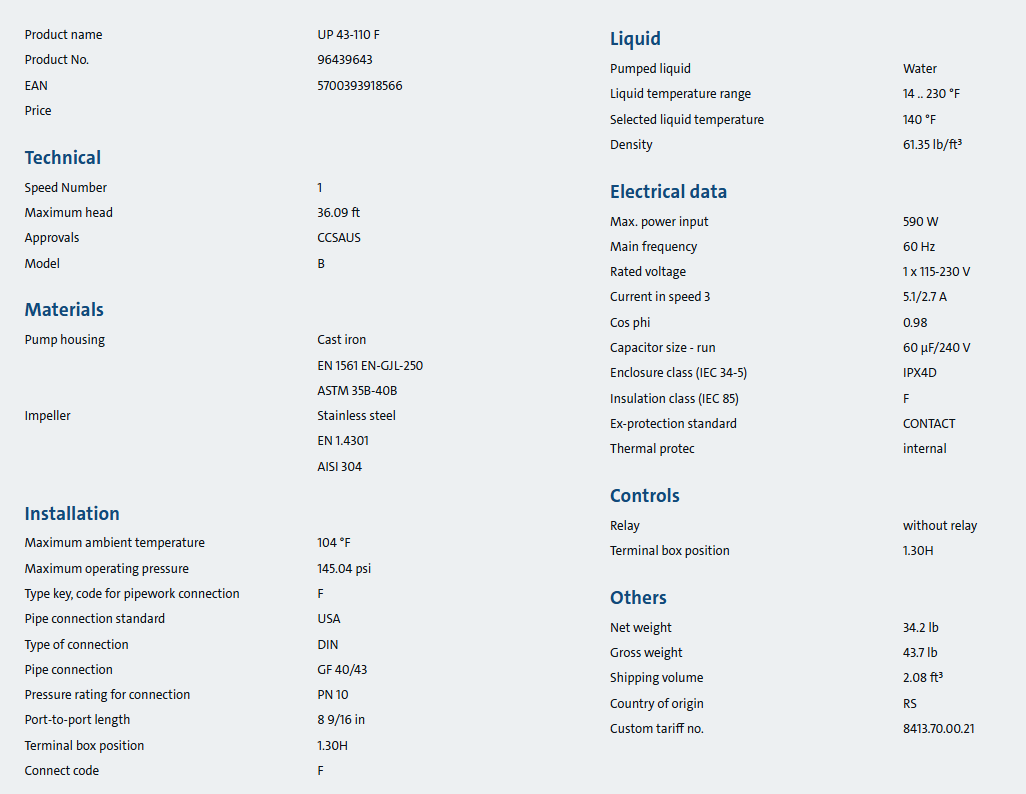

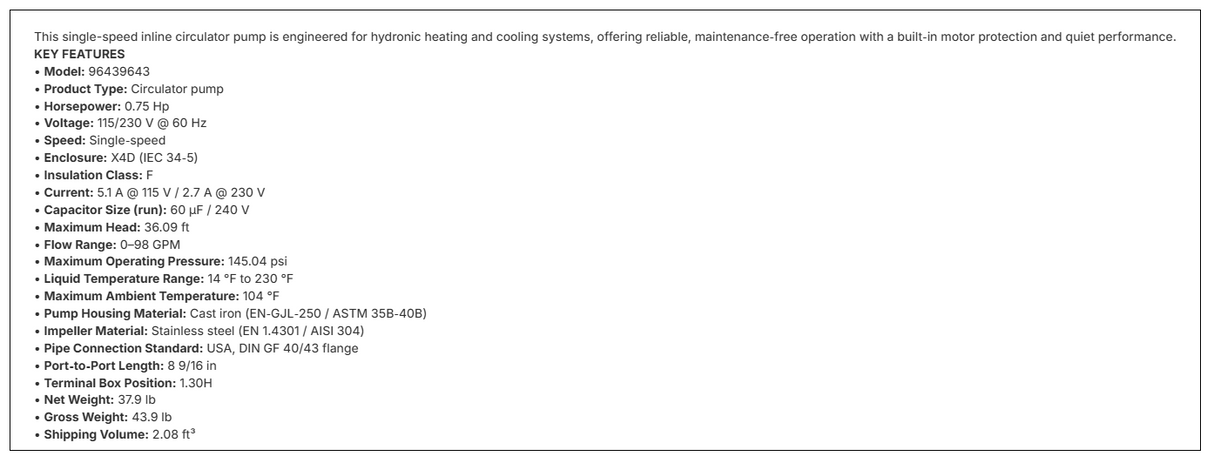

KEY FEATURES

• Model: 96439643

• Product Type: Circulator pump

• Horsepower: 0.75 Hp

• Voltage: 115/230 V @ 60 Hz

• Speed: Single‑speed

• Enclosure: X4D (IEC 34‑5)

• Insulation Class: F

• Current: 5.1 A @ 115 V / 2.7 A @ 230 V

• Capacitor Size (run): 60 µF / 240 V

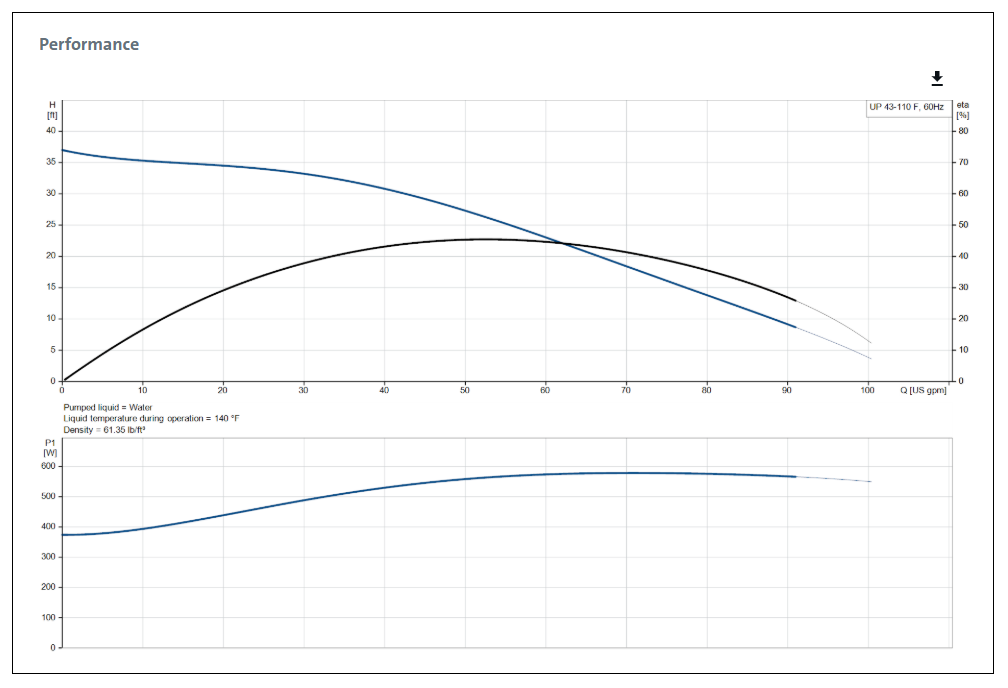

• Maximum Head: 36.09 ft

• Flow Range: 0–98 GPM

• Maximum Operating Pressure: 145.04 psi

• Liquid Temperature Range: 14 °F to 230 °F

• Maximum Ambient Temperature: 104 °F

• Pump Housing Material: Cast iron (EN‑GJL‑250 / ASTM 35B‑40B)

• Impeller Material: Stainless steel (EN 1.4301 / AISI 304)

• Pipe Connection Standard: USA, DIN GF 40/43 flange

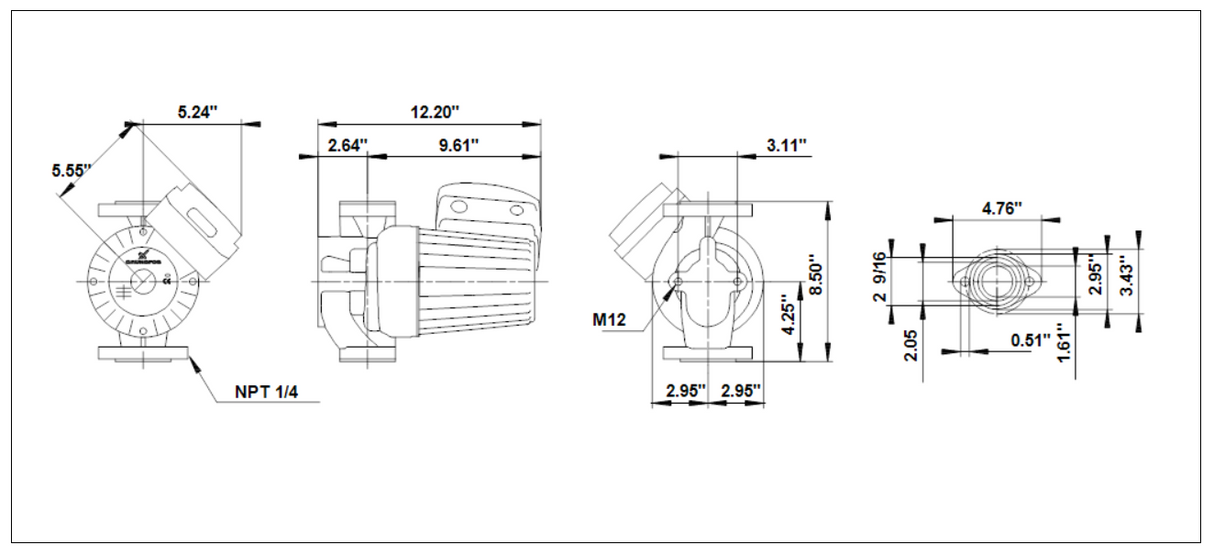

• Port‑to‑Port Length: 8 9/16 in

• Terminal Box Position: 1.30H

• Net Weight: 37.9 lb

• Gross Weight: 43.9 lb

• Shipping Volume: 2.08 ft³

CROSS REFERENCE

• ArmFLo E24.2 (182212-653)
