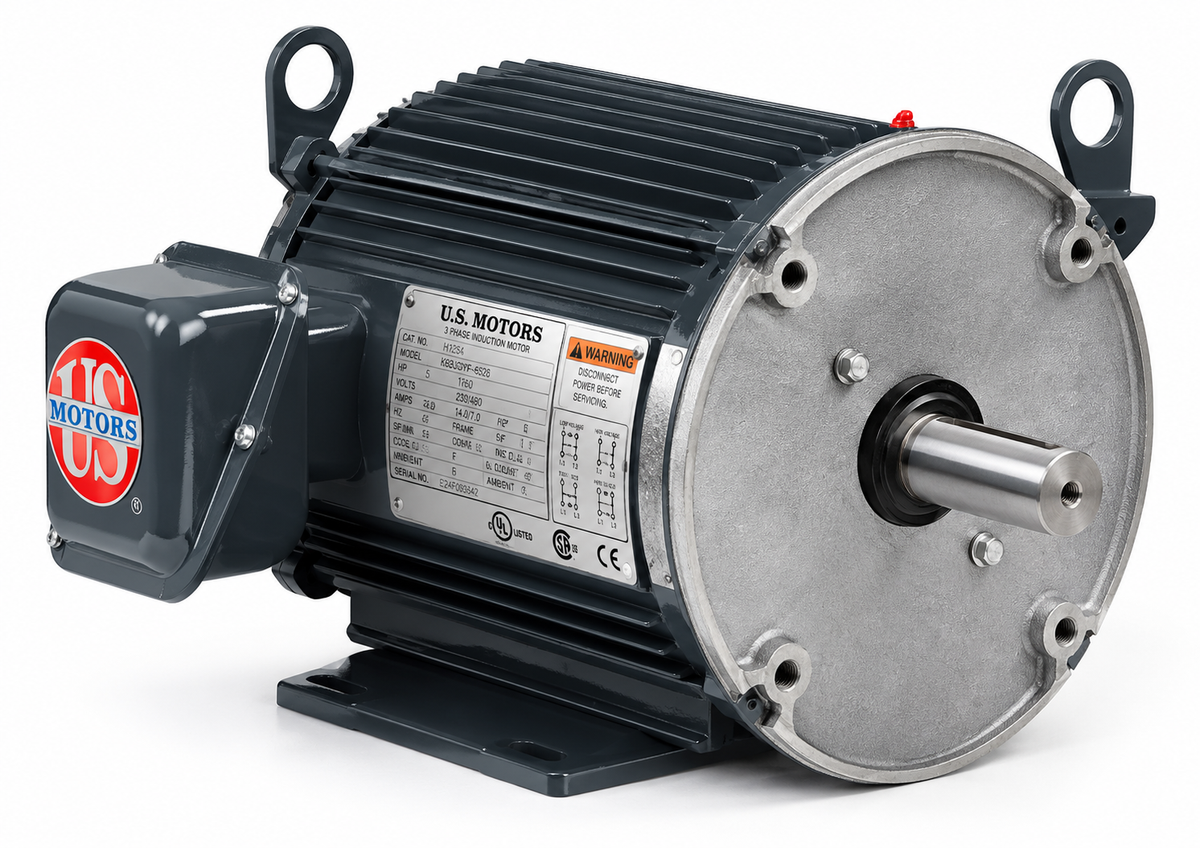

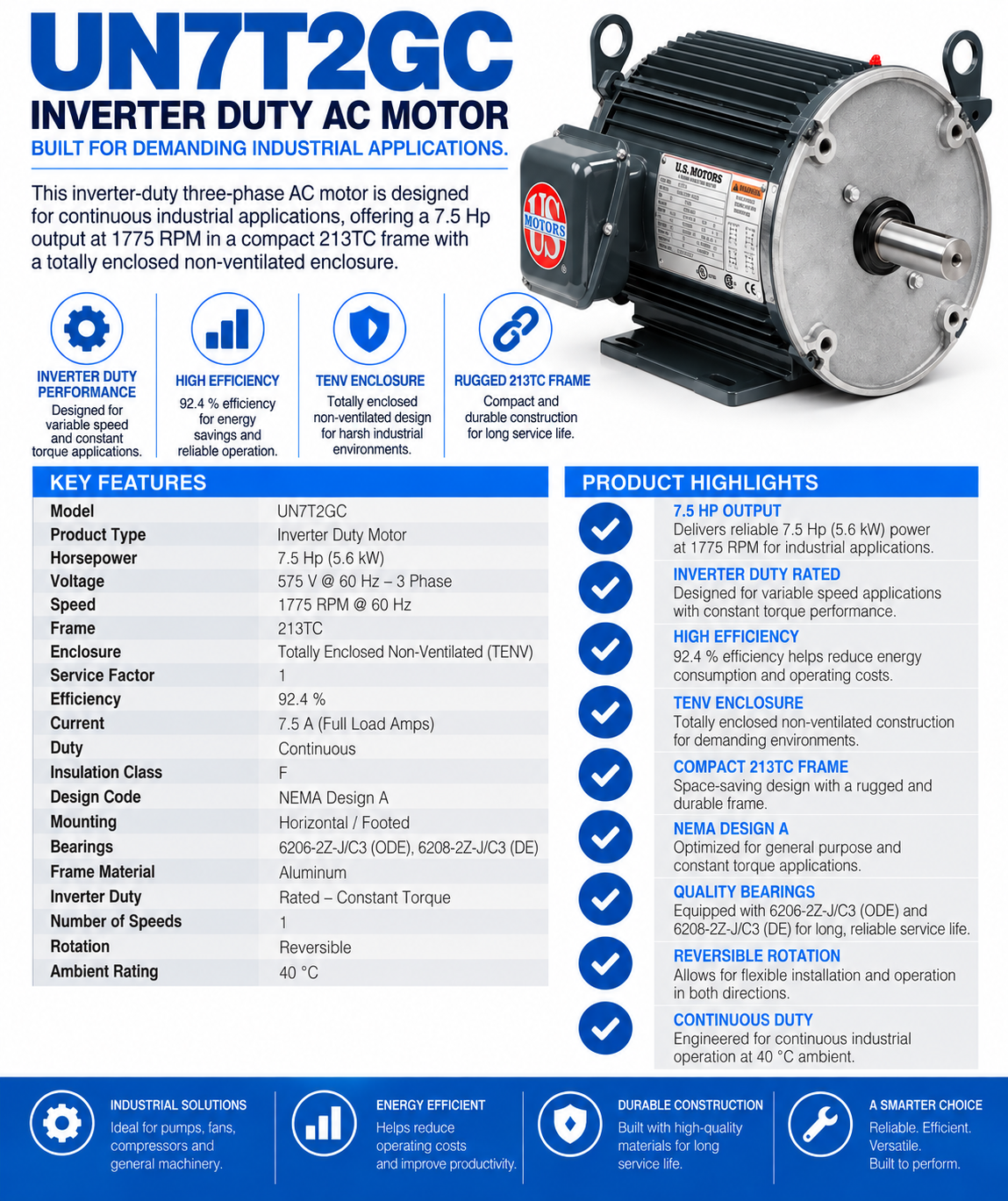

UN7T2GC, 7.5Hp, 1775 RPM, 575 V, 3‑Phase, 60 Hz, TENV (Totally Enclosed Non‑Ventilated), Frame 213TC, BV09

This inverter‑duty three‑phase AC motor is designed for continuous industrial applications, offering a 7.5 Hp output at 1775 RPM in a compact 213TC frame with a totally enclosed non‑ventilated enclosure.

KEY FEATURES

• Model: UN7T2GC

• Product Type: Inverter Duty Motor

• Horsepower: 7.5 Hp (5.6 kW)

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1775 RPM @ 60 Hz

• Frame: 213TC

• Enclosure: Totally Enclosed Non‑Ventilated (TENV)

• Rotation: Reversible

• Service Factor: 1

• Efficiency: 92.4 %

• Current: 7.5 A (Full Load Amps)

• Duty: Continuous

• Insulation Class: F

• Design Code: NEMA Design A

• Mounting: Horizontal / Footed

• Bearings: 6206‑2Z‑J/C3 (Opposite End), 6208‑2Z‑J/C3 (Shaft End)

• Frame Material: Aluminum

• Inverter Duty: Rated – Constant Torque

• Number of Speeds: 1

• Ambient Rating: 40 °C
