Industrial Supply & Co  |  SKU: EMN-017268

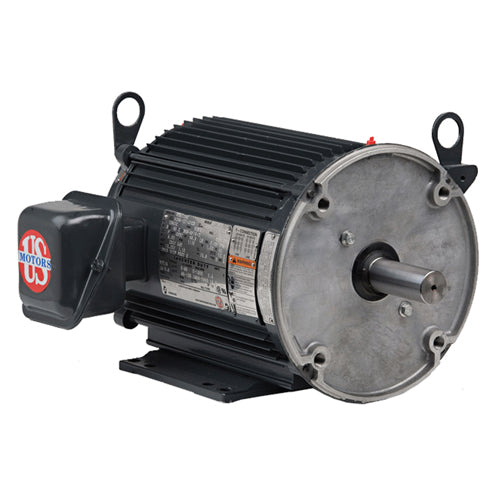

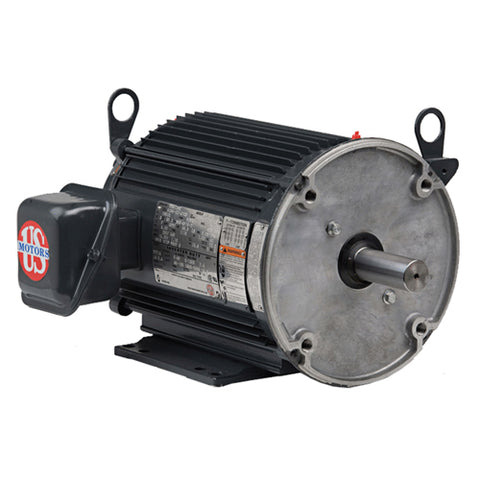

UN2T2GC, Accu-Torq, 2 Hp, 1800 Rpm, 575V, Fr:145TC, TENV, Us Motors,

$1,126.56
shipping

Estimate shipping

Description

UN2T2GC, Accu-Torq, Nidec, Us Motors,Model # FD98,Y557 Marathon,145THTN6060, IDVSNM3587T-5, 05E534X086G1

Motors are designed for use in applications where full torque at zero speed is required. Nidec had high-performance, high power, and light weight all in mind when designing and manufacturing these electric motors.

  • MaxGuard® inverter-rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
  • Constant torque operation from 0 to base speed on vector drive.
  • Double-shielded ball bearings provide longer service life.
  • Normally closed thermostats (one per phase, Class F or H as noted).

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 575 V
Current: 2.4 A Speed: 1750 rpm
Service Factor: 1 Phase: 3
Efficiency: 85.5 % Power Factor: 78
Duty: Continuous Insulation Class: F
Design Code: INV KVA Code: M
Frame: 145TC Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Thermostat Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1

Technical Specifications

Electrical Type: Squirrel Cage Inverter Duty Starting Method: Inverter Only
Poles: 4 Rotation: Reversible
Resistance Main: 6.48 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 14.68 in
Frame Length: 6.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1/F2 CAPABLE
Inverter Load: CONSTANT 5000:1

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (LB-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 18.50 617.0 28.50 475.0 1,500 79.5 2.00
Full Load 3.00 100.0 6.00 100.0 1,750 2.00
No Load 1.70 57.0 0.00 0.0 1,800 2.00
2/3 21.00 700.0 23.00 383.0 1,200 2.00
Pull-Up 22.50 750.0 19.50 325.0 900 2.00
Locked-Rotor 25.00 833.0 21.80 363.0 0 65.0 2.00
1/3 24.00 800.0 18.50 308.0 600 2.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 200 %
Current (Amps) 1.36 1.52 1.68 2.00 2.40 2.80 3.20 4.24
Rated Output (KW) 0.11 0.50 0.90 1.30 1.80 2.20 2.70 3.60
Efficiency (%) 0.0 73.5 82.0 84.0 85.5 85.0 84.0 80.0
Power Factor (%) 7.8 34.5 53.5 66.0 78.0 81.0 83.0 84.0
Speed (RPM) 1,800 1,788 1,776 1,765 1,750 1,740 1,725 1,700
Temp. Rise @ FL 0.0 0.0 0.0 0.0 85.0 0.0 0.0 0.0
Torque (LB-FT) 0.00 1.50 3.00 4.50 6.00 7.50 9.10 12.00
