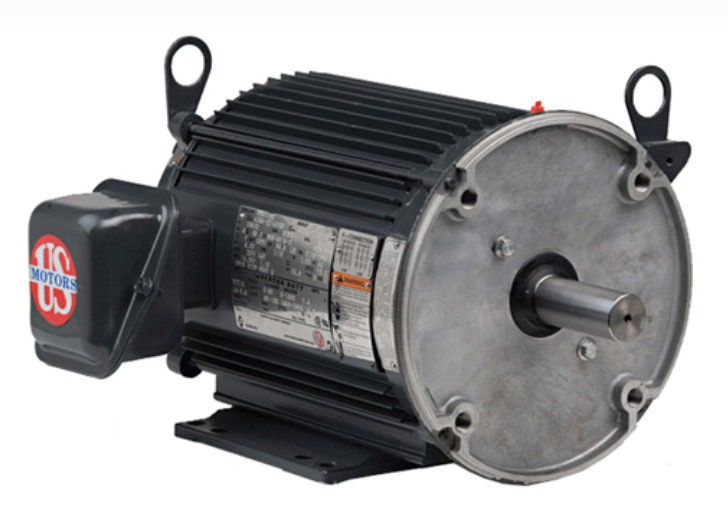

UN12T2GC, ACCU-TORQ VECTOR DUTY, 1/2Hp, 1750 RPM, 575V, 3PH, 60Hz, TENV, Frame 56C, FD90

UN12T2GC, ACCU-TORQ VECTOR DUTY, 1/2Hp, 1750 RPM, 575V, 3PH, 60Hz, TENV, Frame 56C, FD90

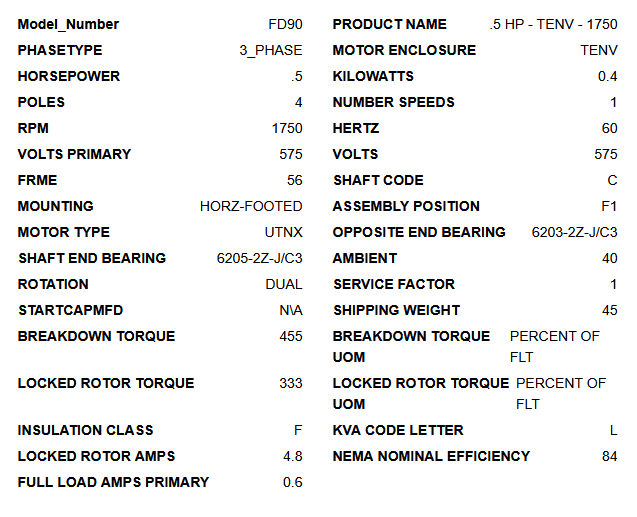

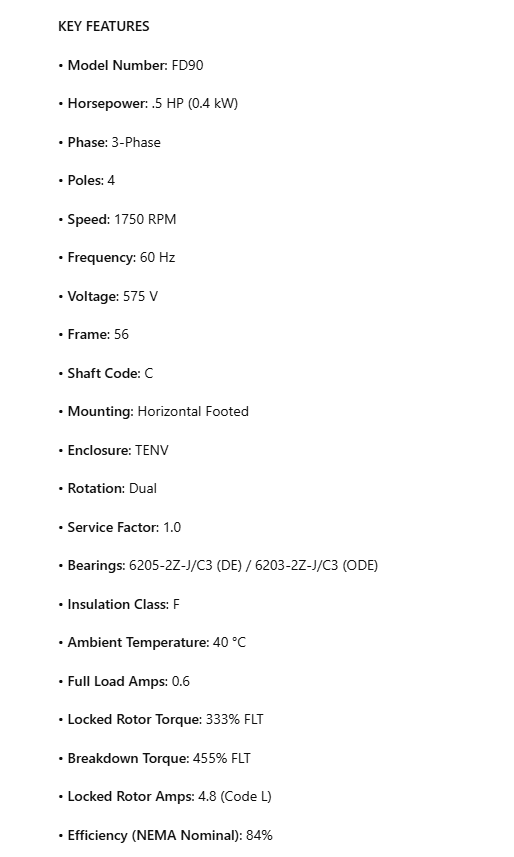

KEY FEATURES

• Model Number: FD90

• Horsepower: .5 HP (0.4 kW)

• Phase: 3-Phase

• Poles: 4

• Speed: 1750 RPM

• Frequency: 60 Hz

• Voltage: 575 V

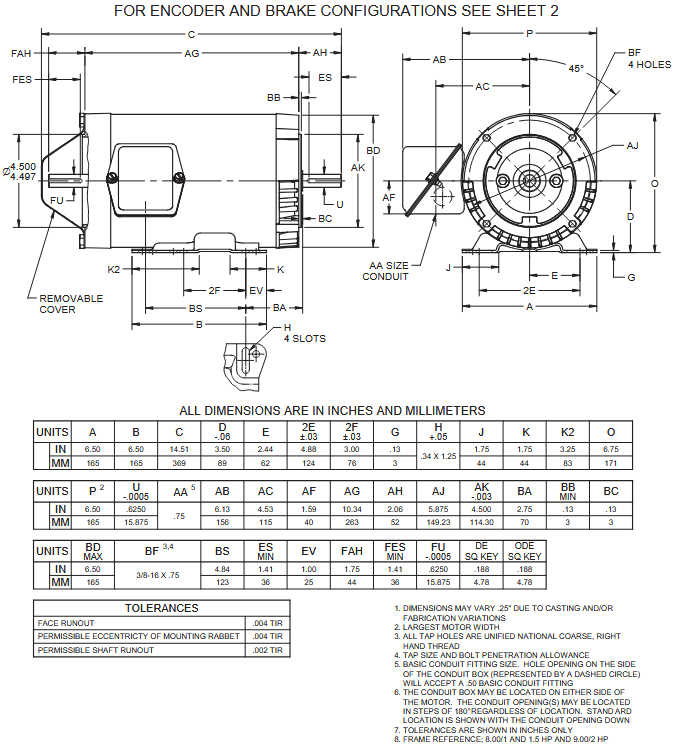

• Frame: 56

• Shaft Code: C

• Mounting: Horizontal Footed

• Enclosure: TENV

• Rotation: Dual

• Service Factor: 1.0

• Bearings: 6205-2Z-J/C3 (DE) / 6203-2Z-J/C3 (ODE)

• Insulation Class: F

• Ambient Temperature: 40 °C

• Full Load Amps: 0.6

• Locked Rotor Torque: 333% FLT

• Breakdown Torque: 455% FLT

• Locked Rotor Amps: 4.8 (Code L)

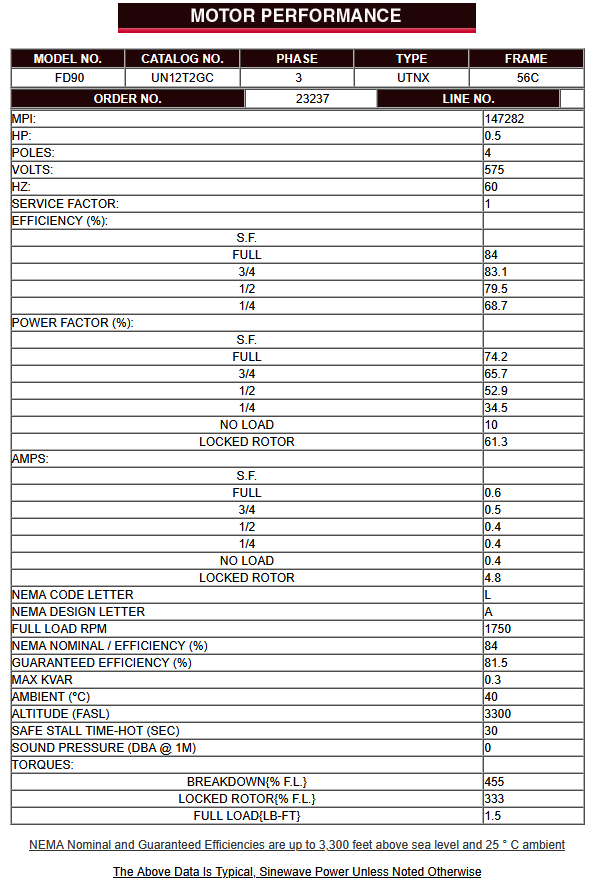

• Efficiency (NEMA Nominal): 84%
