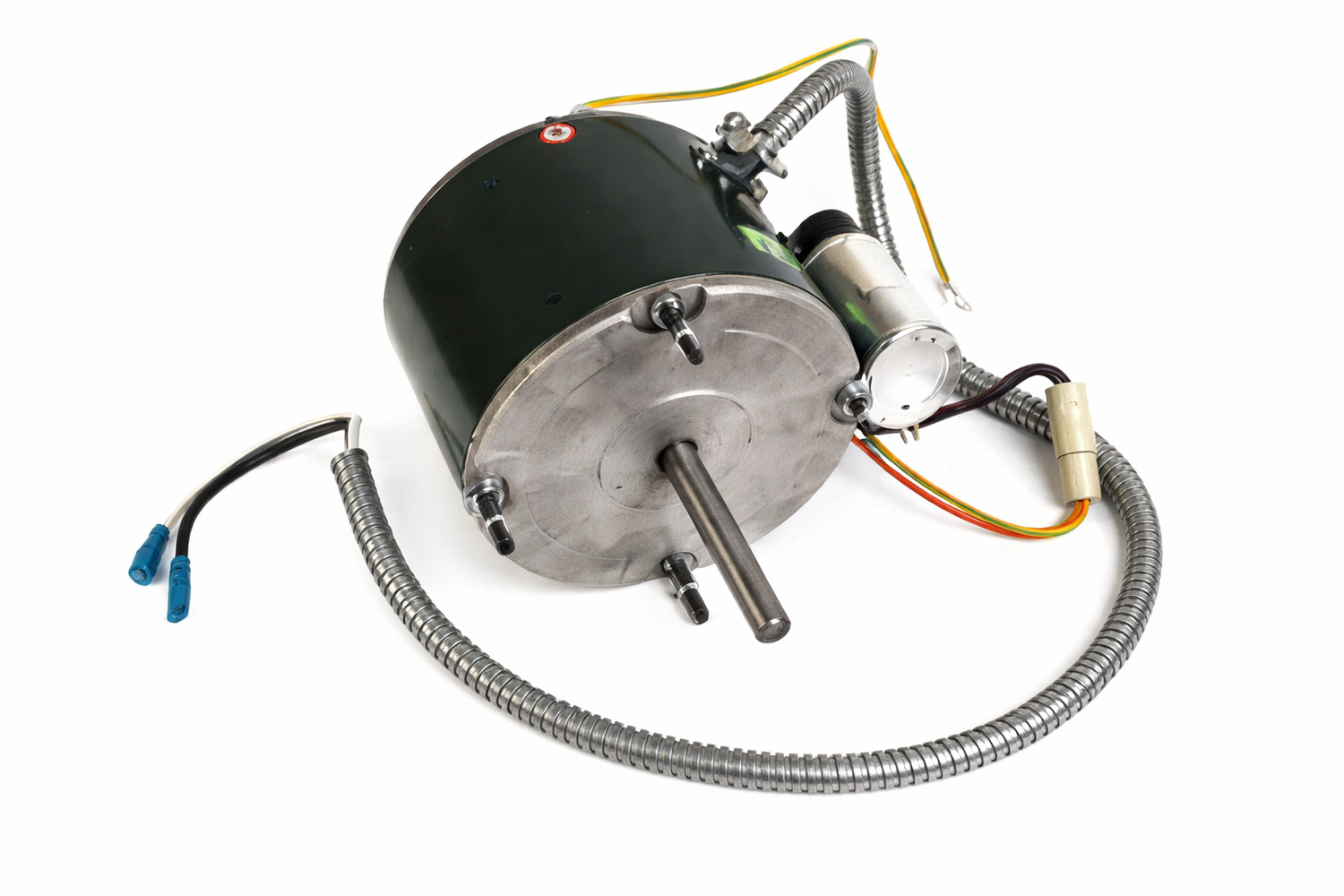

UHM14B, OEM Replacement Motor, 1/4Hp, 1075 RPM, 115V, 1Ph, Frame 48, Reversible

UHM14B, OEM Replacement Motor, 1/4Hp, 1075 RPM, 115V, 1Ph, Frame 48, Reversible

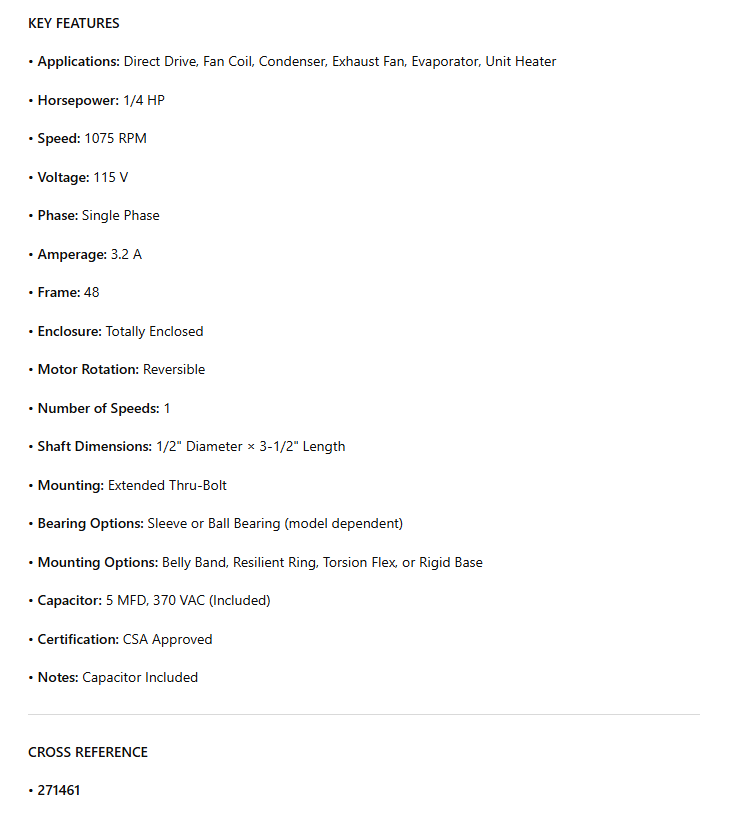

KEY FEATURES

• Applications: Direct Drive, Fan Coil, Condenser, Exhaust Fan, Evaporator, Unit Heater

• Horsepower: 1/4 HP

• Speed: 1075 RPM

• Voltage: 115 V

• Phase: Single Phase

• Amperage: 3.2 A

• Frame: 48

• Enclosure: Totally Enclosed

• Motor Rotation: Reversible

• Number of Speeds: 1

• Shaft Dimensions: 1/2" Diameter × 3-1/2" Length

• Mounting: Extended Thru-Bolt

• Bearing Options: Sleeve or Ball Bearing (model dependent)

• Mounting Options: Belly Band, Resilient Ring, Torsion Flex, or Rigid Base

• Capacitor: 5 MFD, 370 VAC (Included)

• Certification: CSA Approved

• Notes: Capacitor Included

CROSS REFERENCE

• 271461
