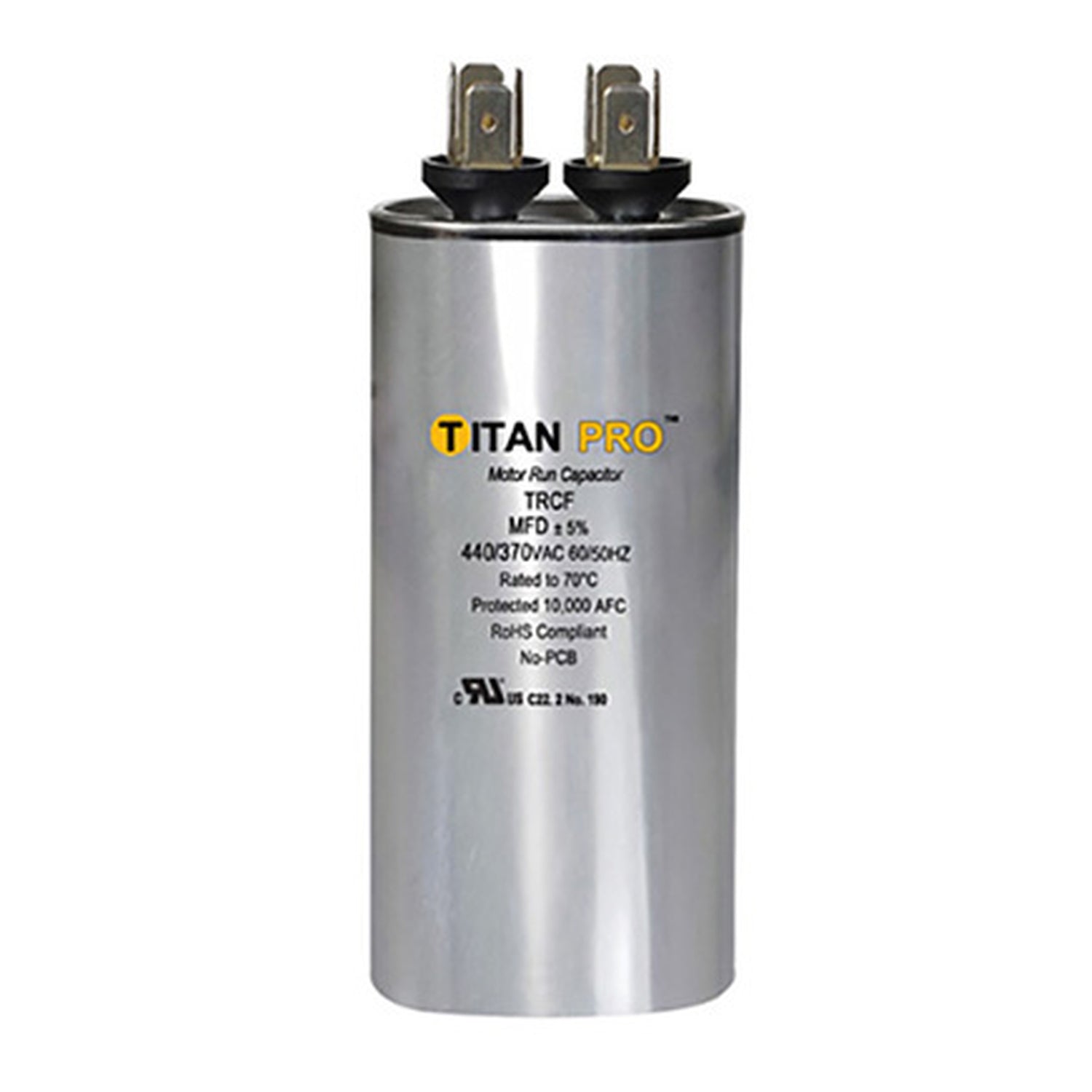

TRCF30, 30 µF, 440/370 V, Round Run Capacitor

This single-section run capacitor is designed for AC motor applications, offering a compact round aluminum can construction with reliable dielectric performance and extended operational life.

KEY FEATURES

• Model: TRCF30

• Product Type: Capacitor

• Capacitance: 30 µF

• Voltage Rating: 440/370 V AC @ 50/60 Hz

• Shape: Round

• Diameter: 1.97 in

• Height: 3.35 in

• Material: Aluminum can

• Dielectric Material: Metalized polypropylene film

• Oil Type: Soybean-based

• Operating Temperature Range: -40 °C to 70 °C

• Tolerance: ±5 %

• Operational Life: 60 000 hours

• Terminal Type: Standard blade terminals

• Standards Compliance: UL (Canada & US), CSA C22.2, IEC 60252, EIA‑456‑A

• Safety Feature: Second-generation anti‑explosion safety switch

• Testing: 100 % electrical testing

• RoHS Compliance: Yes

This run capacitor stands out for its long life expectancy and robust safety features, making it a dependable choice for HVAC and refrigeration motor applications.
