WEG  |  SKU: EMN-019185

TF000104W01DOE, Rolled Steel 1Hp 1750 Rpm 4P 56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

$426.36
shipping

Estimate shipping

Description

TF000104W01DOE,  Rolled Steel 1Hp 1750 Rpm 4P 56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

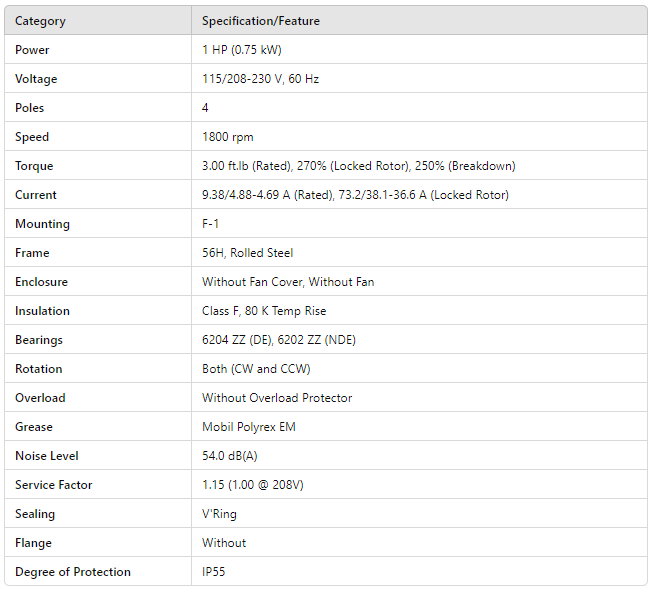

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 115/208-230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 3.00 ft.lb (Rated), 270% (Locked Rotor), 250% (Breakdown)
Current 9.38/4.88-4.69 A (Rated), 73.2/38.1-36.6 A (Locked Rotor)
Mounting F-1
Frame 56H, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 54.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange Without
Degree of Protection IP55
