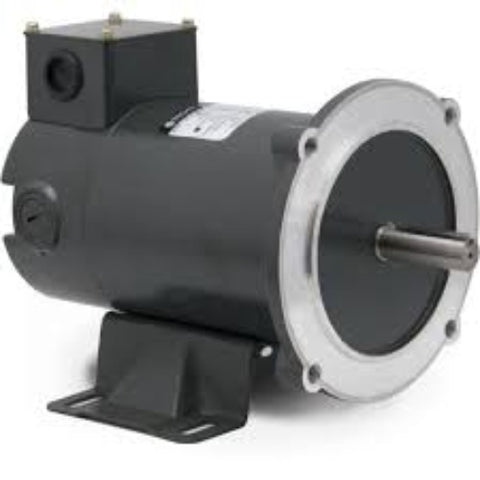

Techtop, DC41N, 1/2 Hp, 1800 RPM, 90Vdc, FR:56, TENV, MM5090NV, CDP3330
TECHTOP, DC41N, Replace Baldor CDP3330, Maxmotion MM5090FC , LEESON 098000.00, C42D17FK1C,
- 1/2 HP
- 1800 RPM
- 90 VDC
- FRAME:56C
- TENV ENCLOSURE
- REVERSING
- SEVERE DUTY RATING
- 20:1 Constant Torque speed range
- 1.15 Service Factor
- 1045 Steel shaft
- Corrosion resistant hardware
The standard degree of enclosure protection is IP44 (Weather Proof). Conduit box lid and body are sealed with fitted foam gaskets.
PRODUCT OVERVIEW
Designed for use on SCR and PWM type direct current adjustable speed drives and on acrossthe-line DC controls. Ideal applications include conveyors, turntables, packaging or anywhere adjustable speed and constant torque is required.
