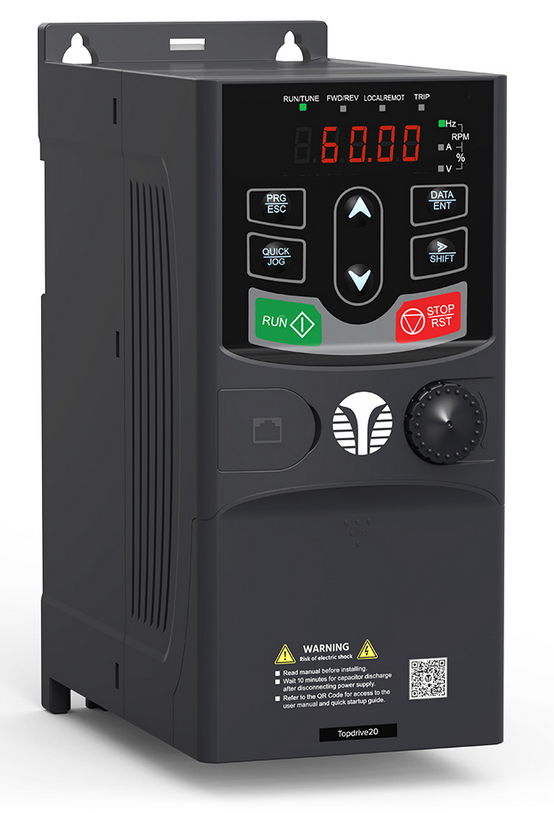

TD20-1R5G-4, AC Drives 2Hp, 4.2A, 460V 3AC INPUT/460V 3AC OUTPUT, FRAME 2, IP20

TD20-1R5G-4, AC Drives 2Hp, 4.2A, 460V 3AC INPUT/460V 3AC OUTPUT, FRAME 2, IP20

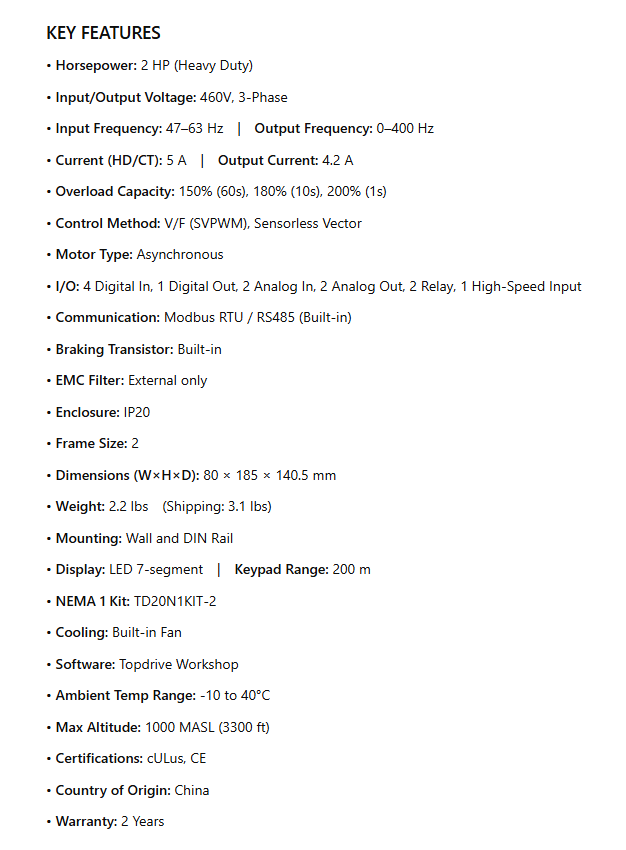

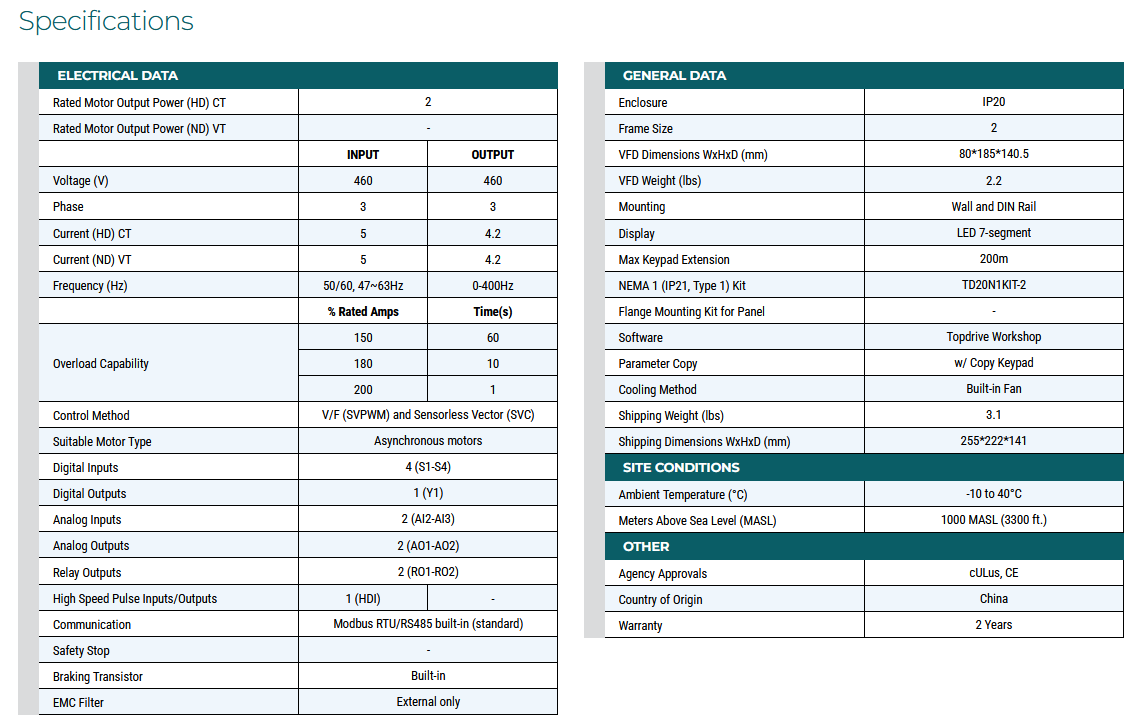

KEY FEATURES

• Horsepower: 2 HP (Heavy Duty)

• Input/Output Voltage: 460V, 3-Phase

• Input Frequency: 47–63 Hz | Output Frequency: 0–400 Hz

• Current (HD/CT): 5 A | Output Current: 4.2 A

• Overload Capacity: 150% (60s), 180% (10s), 200% (1s)

• Control Method: V/F (SVPWM), Sensorless Vector

• Motor Type: Asynchronous

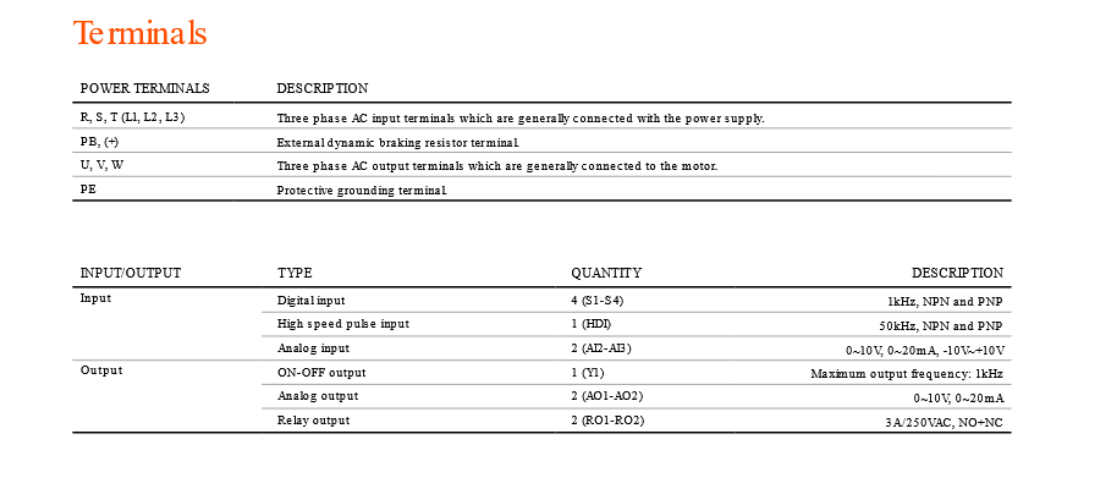

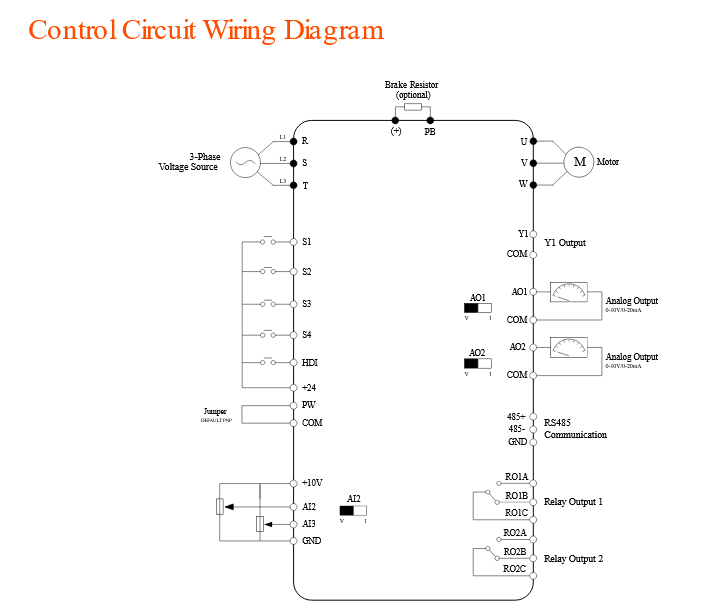

• I/O: 4 Digital In, 1 Digital Out, 2 Analog In, 2 Analog Out, 2 Relay, 1 High-Speed Input

• Communication: Modbus RTU / RS485 (Built-in)

• Braking Transistor: Built-in

• EMC Filter: External only

• Enclosure: IP20

• Frame Size: 2

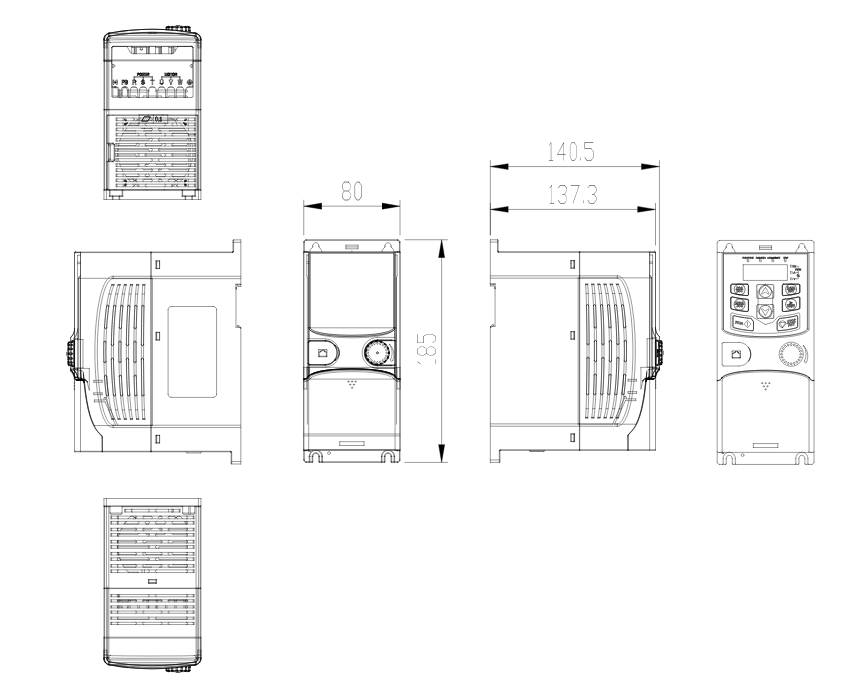

• Dimensions (W×H×D): 80 × 185 × 140.5 mm

• Weight: 2.2 lbs (Shipping: 3.1 lbs)

• Mounting: Wall and DIN Rail

• Display: LED 7-segment | Keypad Range: 200 m

• NEMA 1 Kit: TD20N1KIT-2

• Cooling: Built-in Fan

• Software: Topdrive Workshop

• Ambient Temp Range: -10 to 40°C

• Max Altitude: 1000 MASL (3300 ft)

• Certifications: cULus, CE

• Country of Origin: China

• Warranty: 2 Years

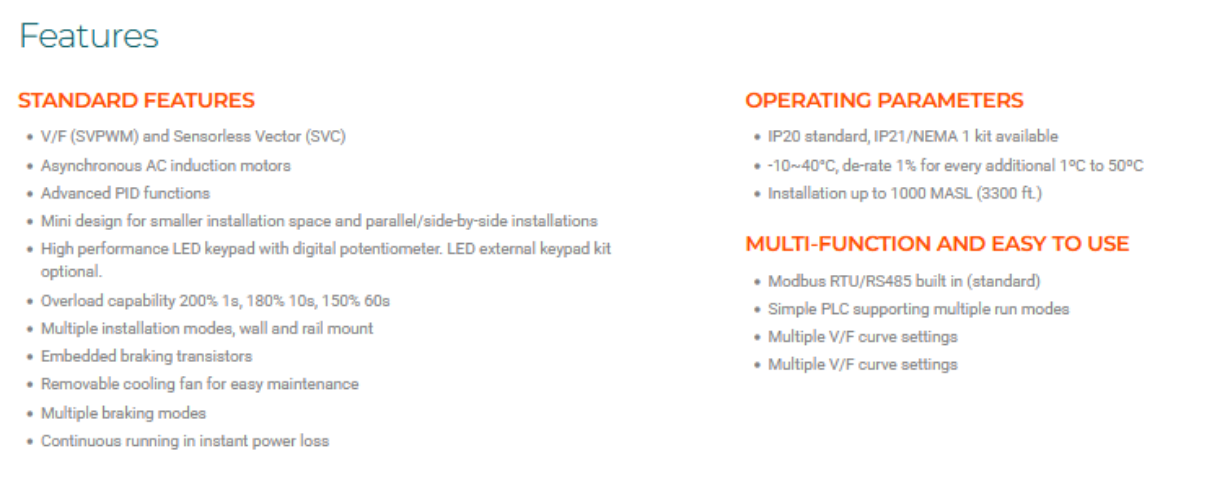

Features
