US Motors - Nidec | SKU:
EMN-018305

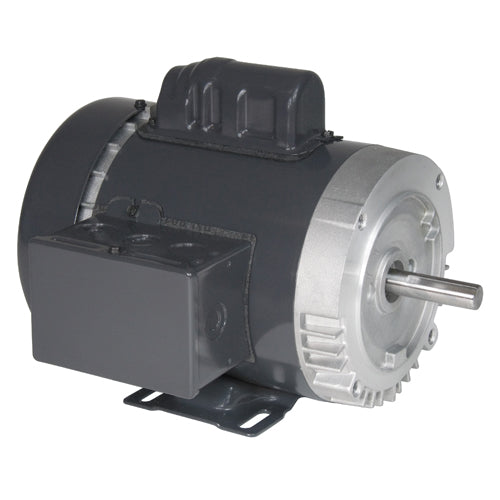

T2C2JHC, US Motors, 2 Hp, 1725 Rpm, 115-230 Volts, Frame:56, TEFC,
Regular price
$588.97
Unit price
/
Unavailable
T2C2JHC, US Motors, 2 Hp, 1725 Rpm, 115-230 Volts, Frame:56, TEFC, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
T2C2JHC, US Motors, 2 Hp, 1725 Rpm, 115-230 Volts, Frame:56, TEFC,
Regular price
$588.97
Unit price
/
Unavailable
Description
Description
T2C2JHC, US Motors

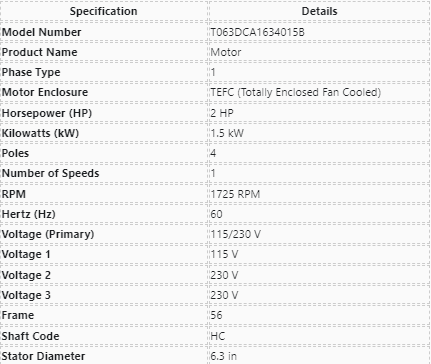

| Specification | Details |
|---|---|
| Model Number | T063DCA1634015B |
| Product Name | Motor |
| Phase Type | 1 |
| Motor Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Horsepower (HP) | 2 HP |
| Kilowatts (kW) | 1.5 kW |
| Poles | 4 |
| Number of Speeds | 1 |
| RPM | 1725 RPM |
| Hertz (Hz) | 60 |
| Voltage (Primary) | 115/230 V |
| Voltage 1 | 115 V |
| Voltage 2 | 230 V |
| Voltage 3 | 230 V |
| Frame | 56 |
| Shaft Code | HC |
| Stator Diameter | 6.3 in |

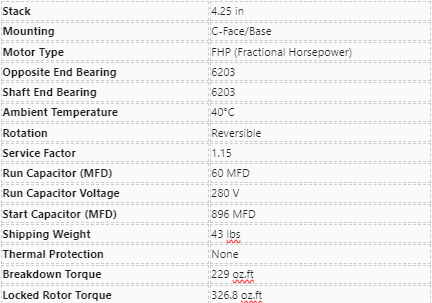

| Stack | 4.25 in |
| Mounting | C-Face/Base |
| Motor Type | FHP (Fractional Horsepower) |
| Opposite End Bearing | 6203 |
| Shaft End Bearing | 6203 |
| Ambient Temperature | 40°C |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Run Capacitor (MFD) | 60 MFD |
| Run Capacitor Voltage | 280 V |
| Start Capacitor (MFD) | 896 MFD |
| Shipping Weight | 43 lbs |
| Thermal Protection | None |
| Breakdown Torque | 229 oz.ft |
| Locked Rotor Torque | 326.8 oz.ft |
| Insulation Class | F |
| KVA Code Letter | H |
| Locked Rotor Amps | 113 A |
| NEMA Nominal Efficiency | 81.5% |
| Full Load Amps (Primary) | 18.9/10.3-9.4 A |
| Service Factor Amps (Primary) | 20.6/10.3 A |
