BALDOR | SKU:
EMN-018443
SPM3461, Baldor, 1/2Hp, 1800 Rpm, 230-460 Volts, Frame: 48, Tefc,
Regular price
$679.87
Unit price
/
Unavailable
SPM3461, Baldor, 1/2Hp, 1800 Rpm, 230-460 Volts, Frame: 48, Tefc, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
SPM3461, Baldor, 1/2Hp, 1800 Rpm, 230-460 Volts, Frame: 48, Tefc,
Regular price
$679.87
Unit price
/
Unavailable
Description
Description
SPM3461, Baldor

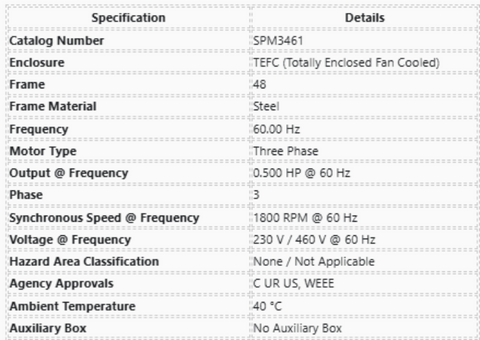

| Specification | Details |
|---|---|
| Catalog Number | SPM3461 |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60.00 Hz |
| Motor Type | Three Phase |
| Output @ Frequency | 0.500 HP @ 60 Hz |
| Phase | 3 |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz |
| Voltage @ Frequency | 230 V / 460 V @ 60 Hz |
| Hazard Area Classification | None / Not Applicable |
| Agency Approvals | C UR US, WEEE |
| Ambient Temperature | 40 °C |
| Auxiliary Box | No Auxiliary Box |
| Bearing Grease Type | Polyrex EM (-20°F to +300°F) |
| Current @ Voltage | 1.5 A @ 230 V, 0.75 A @ 460 V |
| Design Code | B |
| Duty Rating | Continuous (CONT) |
| Efficiency @ 100% Load | 81.5 % |
| Electrically Isolated Bearing | No |
| Feedback Device | No Feedback |
| Front Shaft Indicator | None |
| Heater Indicator | No Heater |
| Insulation Class | F |
| Inverter Code | Not Inverter |
| KVA Code | K |
| Motor Lead Termination | Flying Leads |
| Motor Lead Quantity/Wire Size | 9 @ 18 AWG |
| Mounting Arrangement | F1 |

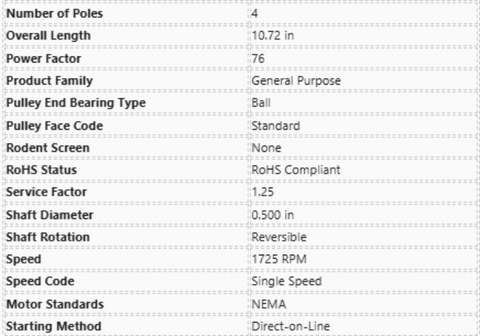

| Number of Poles | 4 |
| Overall Length | 10.72 in |
| Power Factor | 76 |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Rodent Screen | None |
| RoHS Status | RoHS Compliant |
| Service Factor | 1.25 |
| Shaft Diameter | 0.500 in |
| Shaft Rotation | Reversible |
| Speed | 1725 RPM |
| Speed Code | Single Speed |
| Motor Standards | NEMA |
| Starting Method | Direct-on-Line |
| Thermal Device - Bearing/Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Shaft Slinger Indicator | No Slinger |
| Shaft Ground Indicator | No Shaft Grounding |
