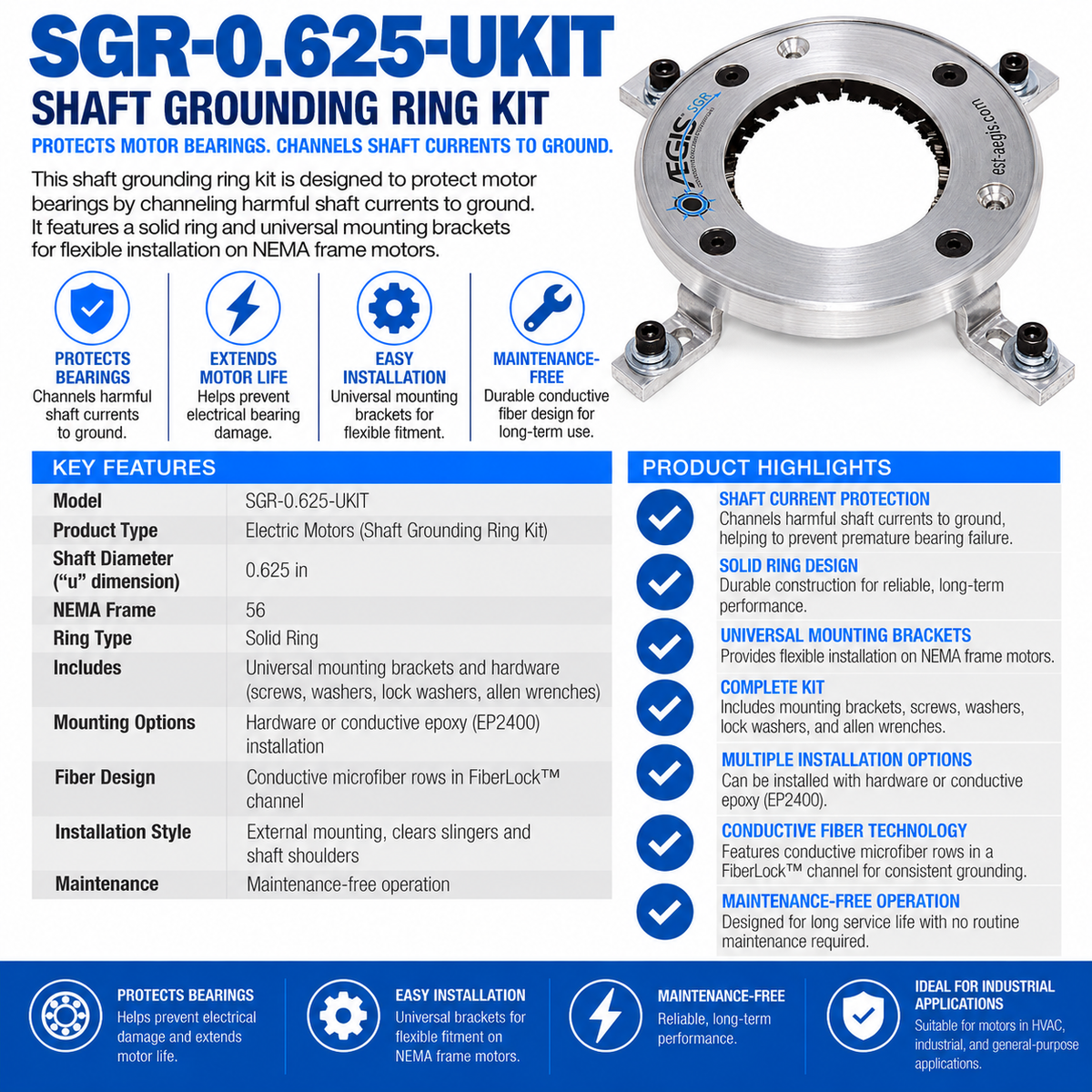

499-1, SGR‑0.625‑UKIT, Shaft Grounding Ring Kit, 0.625" Shaft, NEMA Frame 56

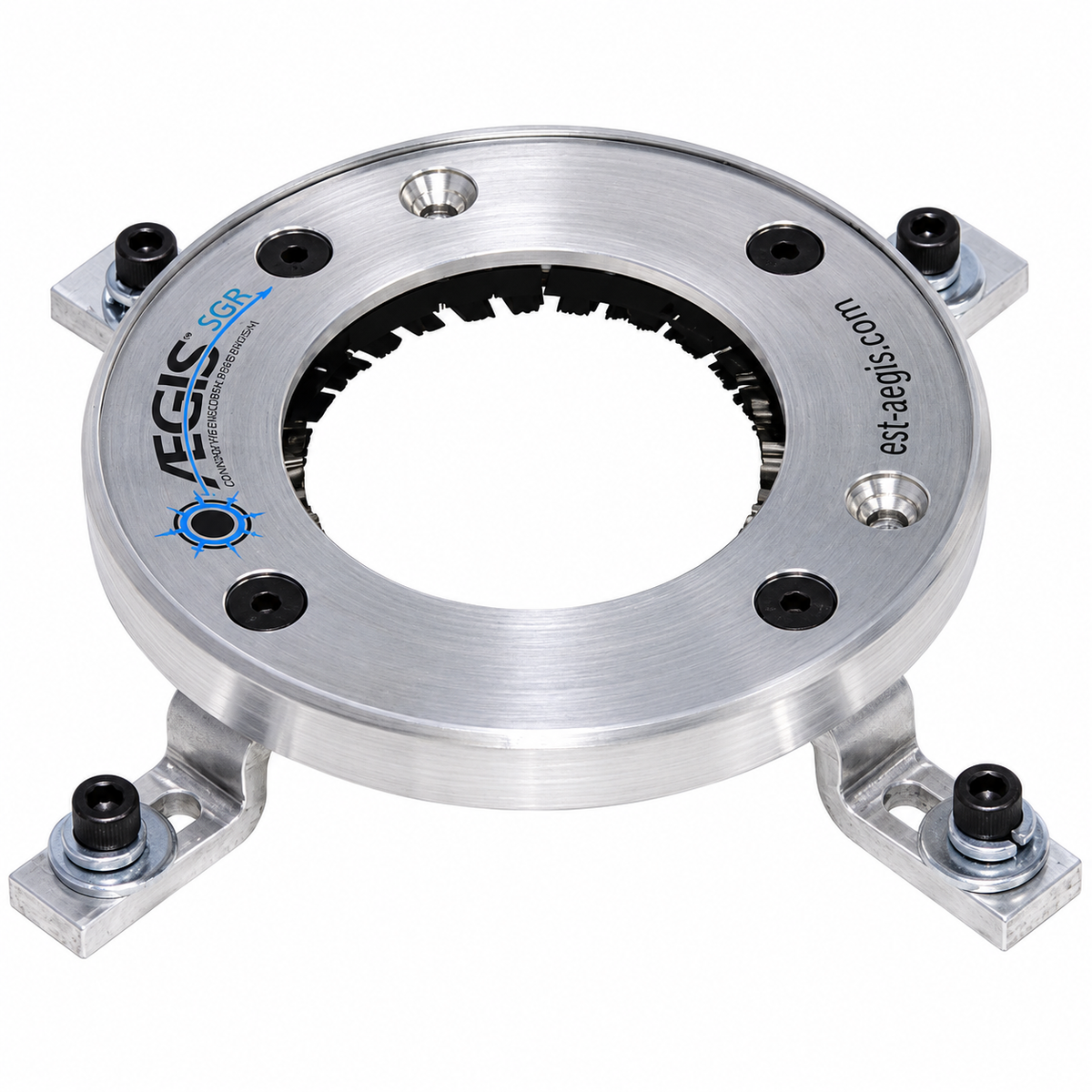

This shaft grounding ring kit is designed to protect motor bearings by channeling harmful shaft currents to ground. It features a solid ring and universal mounting brackets for flexible installation on NEMA frame motors.

KEY FEATURES

• Model: SGR‑0.625‑UKIT

• Product Type: Electric Motors

• Shaft Diameter (“u” dimension): 0.625"

• NEMA Frame: 56

• Ring Type: Solid Ring

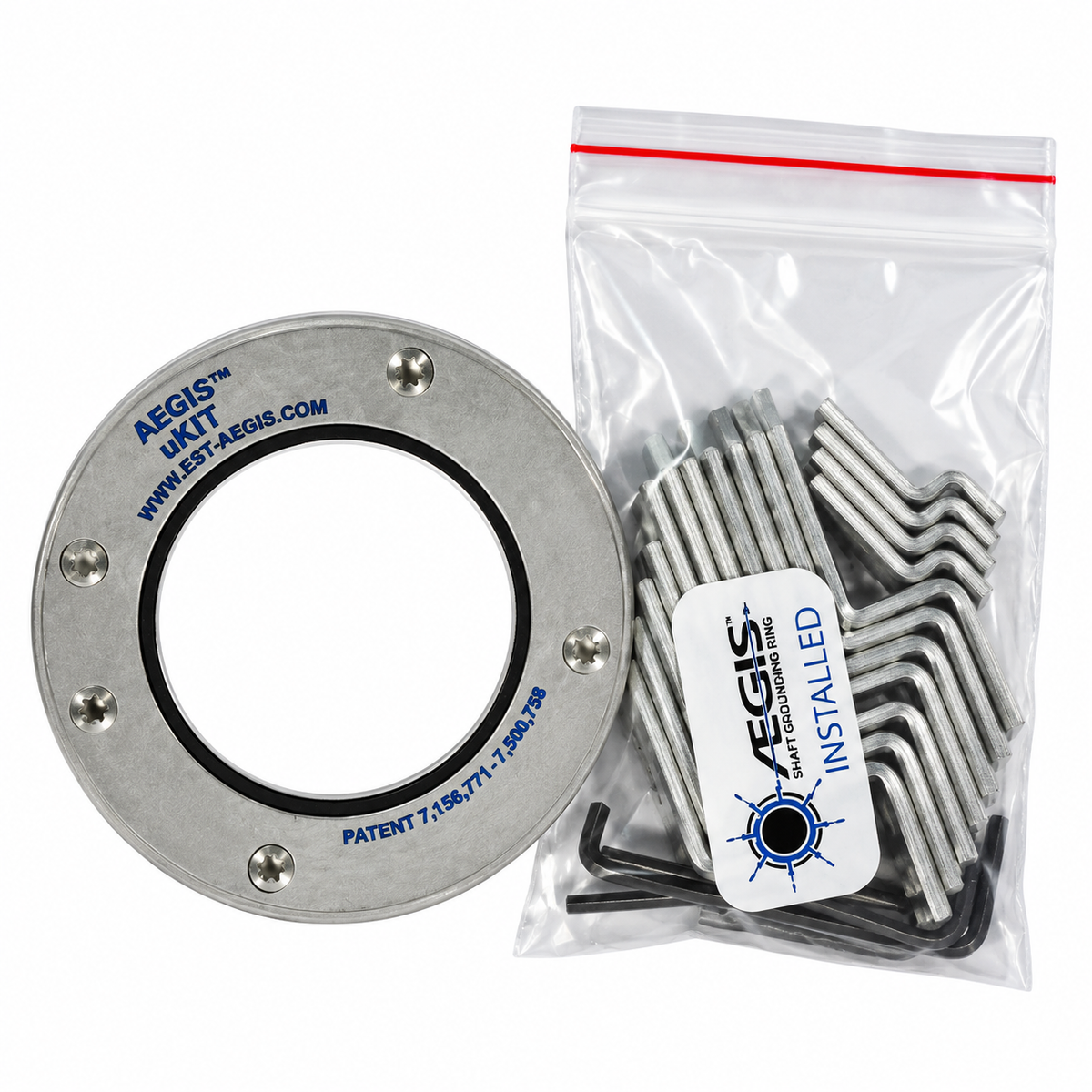

• Includes: Universal mounting brackets and hardware (screws, washers, lock washers, allen wrenches)

• Mounting Options: Hardware or conductive epoxy (EP2400) installation

• Fiber Design: Conductive microfiber rows in FiberLock™ channel

• Installation Style: External mounting, clears slingers and shaft shoulders

• Maintenance: Maintenance‑free operation
