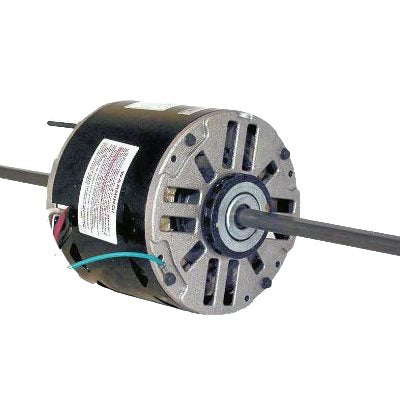

RAL1056, 1/2 HP, 1075 RPM, 115 VOLTS, 3SPD, DBL, 7126-4491, D761 FASCO

CENTURY

$362.77

RAL1056,

REPLACE RAL1056, FASCO 7126-4491, D761

Horsepower :1/2
Voltage :115
Amps :5.20
RPM :1075
Frequency :60 Hz
Length :5-3/8"
"C" Dim. :20"
Enclosure :Open Air Over
Shaft Dim. :7-3/8" x 1/2" x 7-1/4"
Type :Permanent Split Capacitor
Speeds :3
Diameter :5-5/8"
Frame :48YUS
Bearings :Sleeve
Rotation :CCWLE
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Capacitor Rating :10MFD/370V
Feature(s) :Class 'A' Insulation, No Base, Mounting accessories packaged with motor
Weight (lbs.) :20
