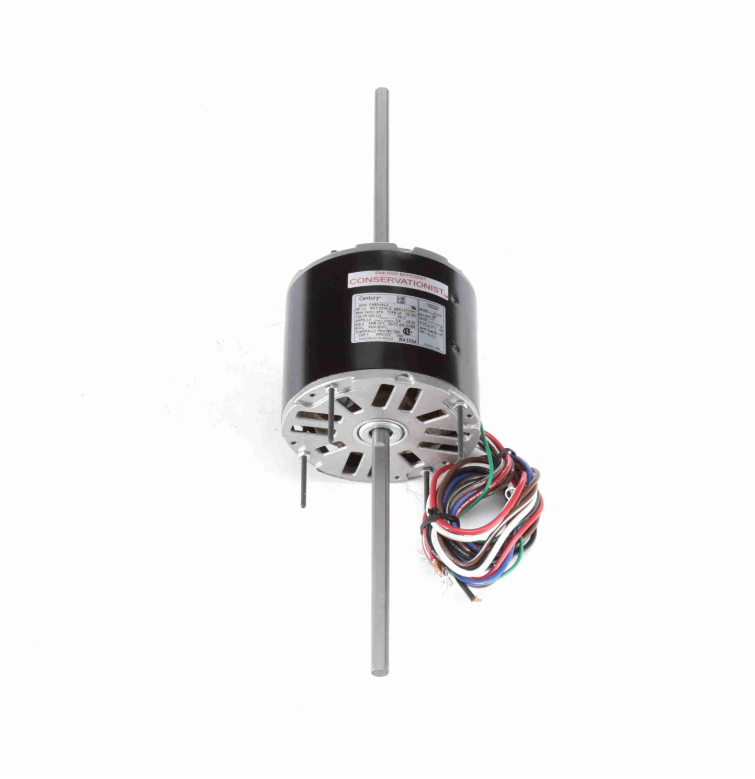

RA1034, Fan Coil & Air Conditioner Motor, 1/3hp, 1 Ph, 60 Hz, 208-230 V, 1625 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED

RA1034, Fan Coil & Air Conditioner Motor, 1/3hp, 1 Ph, 60 Hz, 208-230 V, 1625 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED

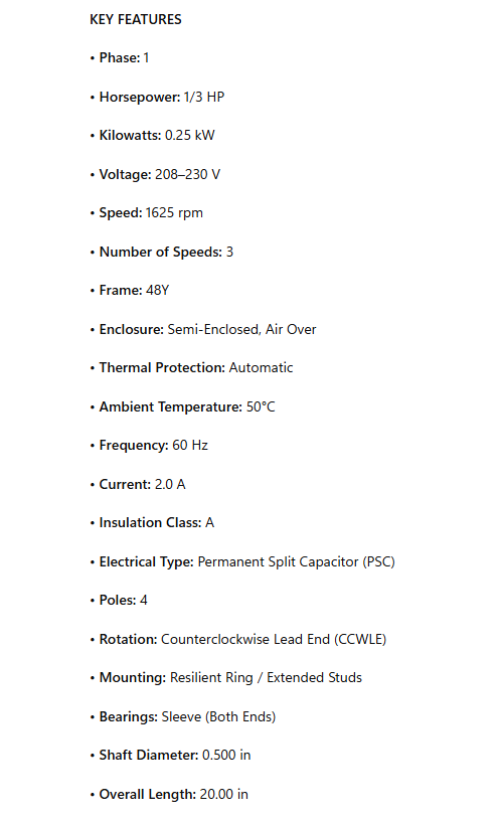

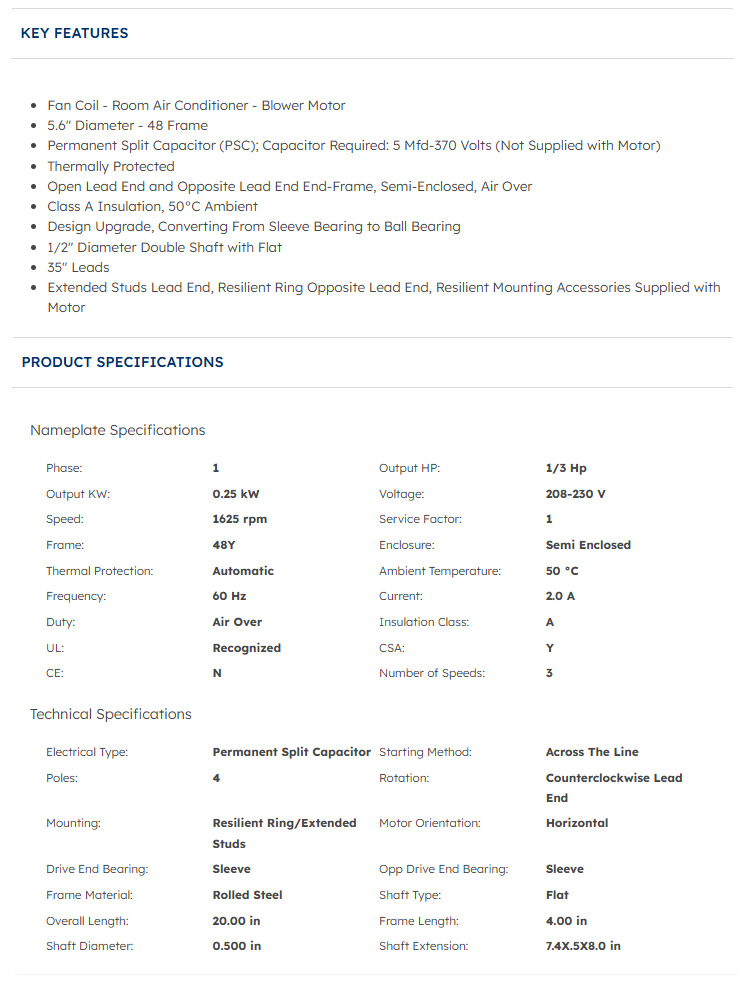

KEY FEATURES

• Phase: 1

• Horsepower: 1/3 HP

• Kilowatts: 0.25 kW

• Voltage: 208–230 V

• Speed: 1625 rpm

• Number of Speeds: 3

• Frame: 48Y

• Enclosure: Semi-Enclosed, Air Over

• Thermal Protection: Automatic

• Ambient Temperature: 50°C

• Frequency: 60 Hz

• Current: 2.0 A

• Insulation Class: A

• Electrical Type: Permanent Split Capacitor (PSC)

• Poles: 4

• Rotation: Counterclockwise Lead End (CCWLE)

• Mounting: Resilient Ring / Extended Studs

• Bearings: Sleeve (Both Ends)

• Shaft Diameter: 0.500 in

• Overall Length: 20.00 in
