R-P1004-B4, Canarm, P1000-B4, 1/20 Hp, 1600 RPM, 120V, 8213917501, 2 Speed

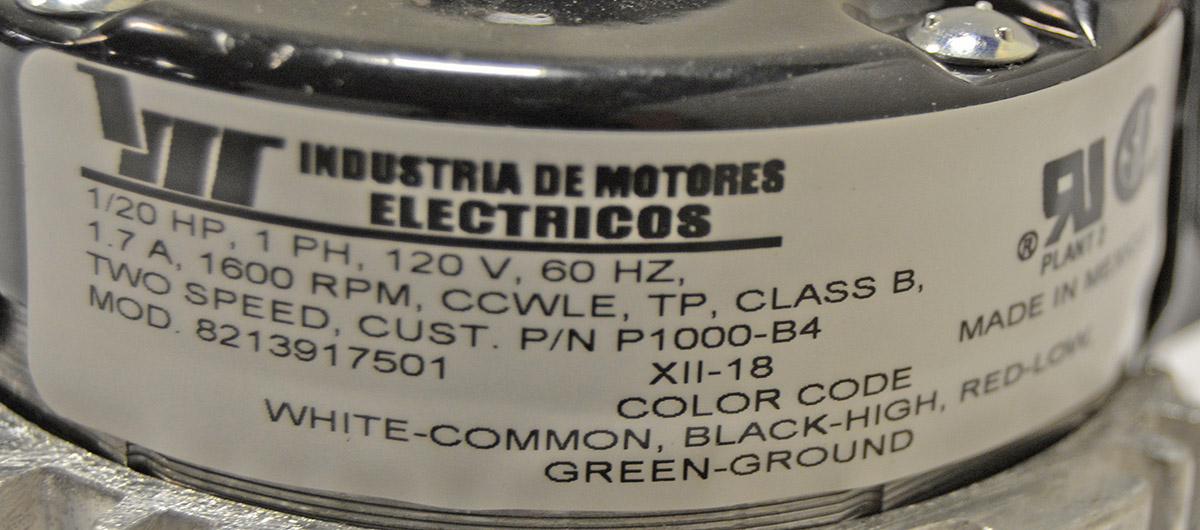

R-P1000-B4, Canarm, 1/20 Hp, 1600 RPM, 120V, 8213917501,2 Speeds, 1.7A

OMNIDRIVE

$299.00

R-P1000-B4, Canarm,P1000-B4,AX Series Shutter Mounted Fans, SF400719F Replaced by,

FAN Model AX8-3 - P1000-B4
FAN Model AX10-3 - P1000-B4

Horsepower :1/20
Voltage :115
Amps :1.70
RPM :1600/2
Frequency :60 Hz
Length :2-7/8”
Enclosure :Totally Enclosed
Shaft Dim. :5/16” x 1-3/4”
Type :Shaded Pole
Diameter :3.3”
Bearings :Ball
Rotation :CWSE
Protector :Thermally Protected
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Weight (lbs.) :4
