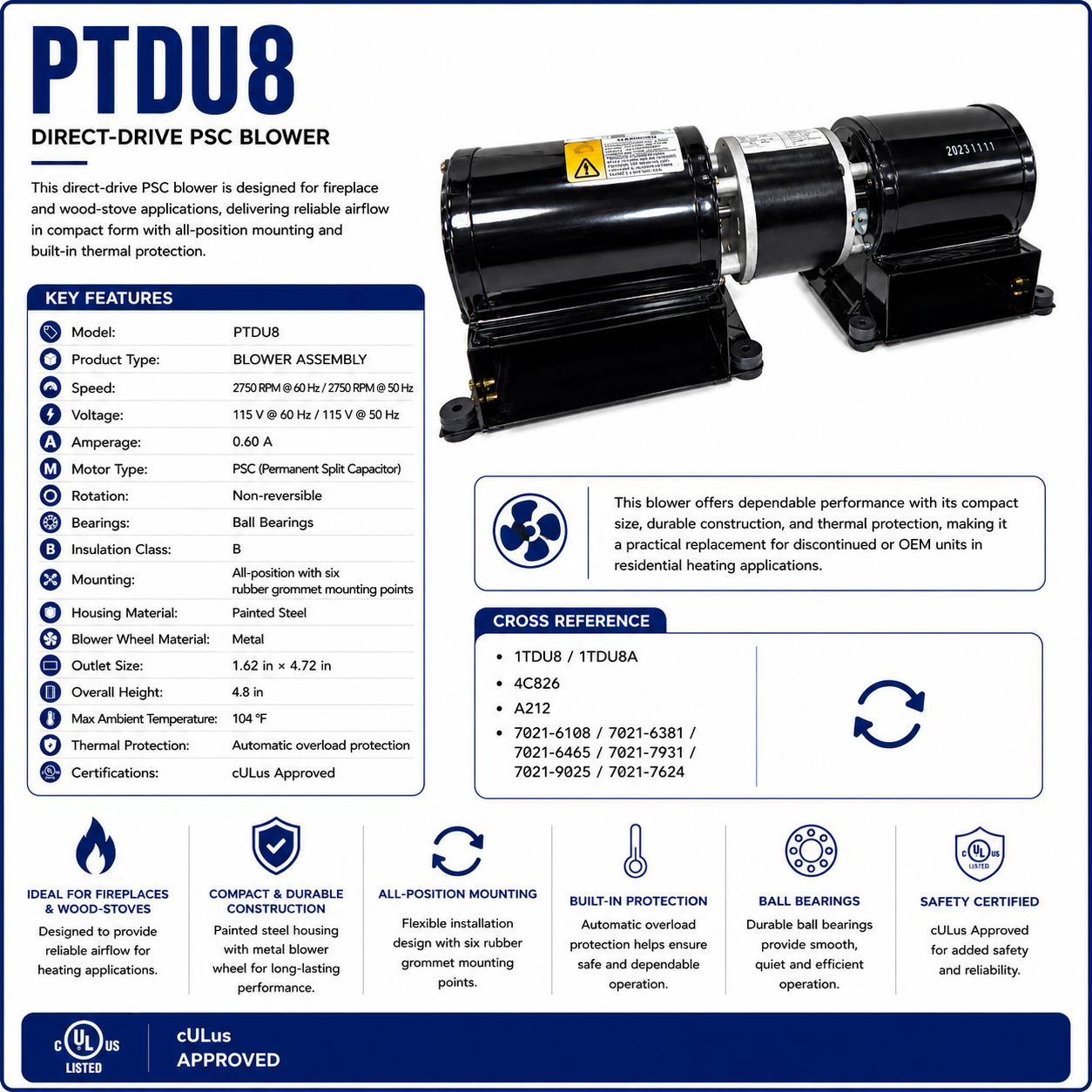

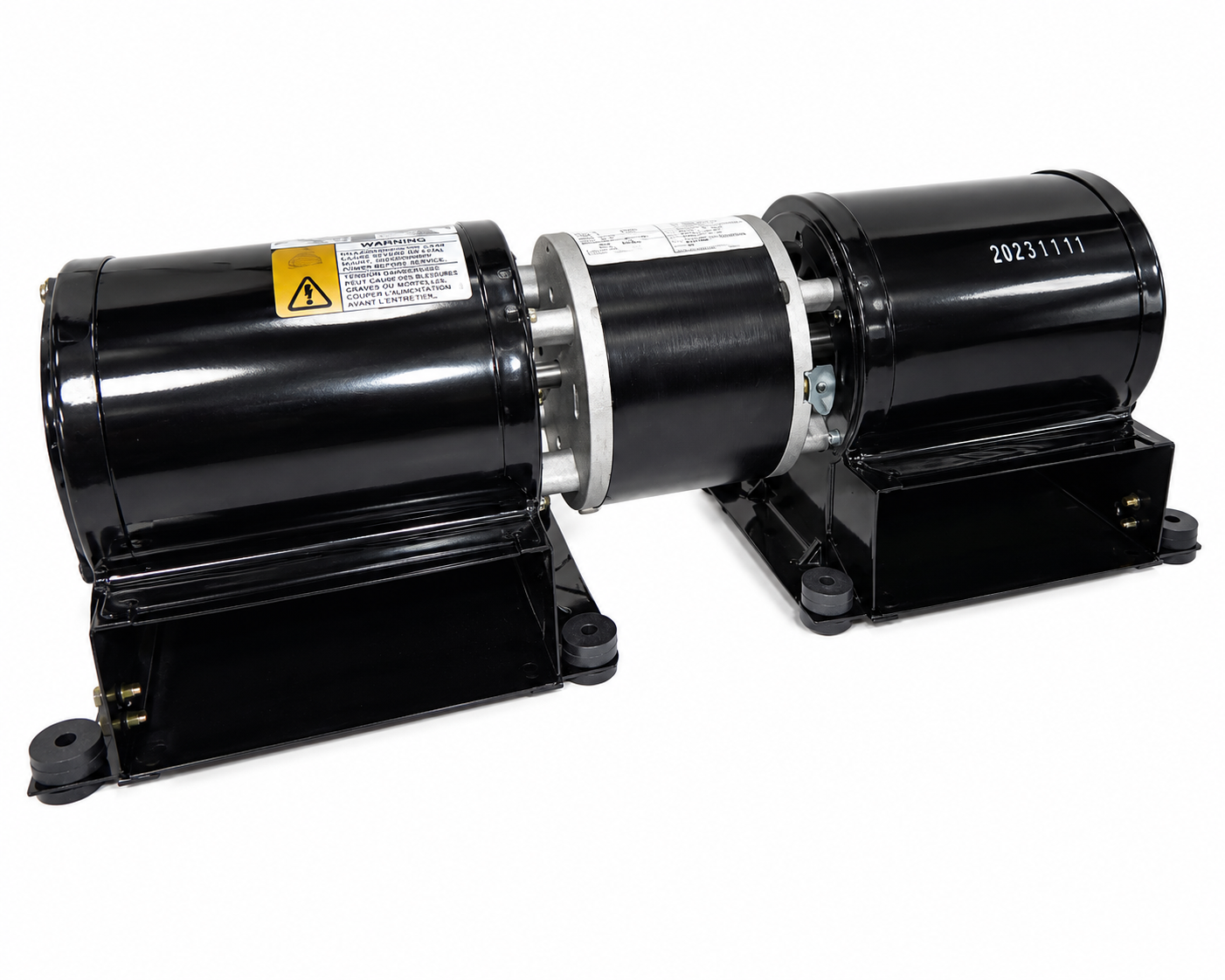

PTDU8, 2750 RPM, 115 V, PSC Blower for Fireplace/Wood Stove

This direct-drive PSC blower is designed for fireplace and wood‑stove applications, delivering reliable airflow in compact form with all‑position mounting and built‑in thermal protection.

KEY FEATURES

• Model: PTDU8

• Product Type: BLOWER ASSEMBLY

• Speed: 2750 RPM @ 60 Hz / 2750 RPM @ 50 Hz

• Voltage: 115 V @ 60 Hz / 115 V @ 50 Hz

• Amperage: 0.60 A

• Motor Type: PSC (Permanent Split Capacitor)

• Rotation: Non‑reversible

• Bearings: Ball Bearings

• Insulation Class: B

• Mounting: All‑position with six rubber grommet mounting points

• Housing Material: Painted Steel

• Blower Wheel Material: Metal

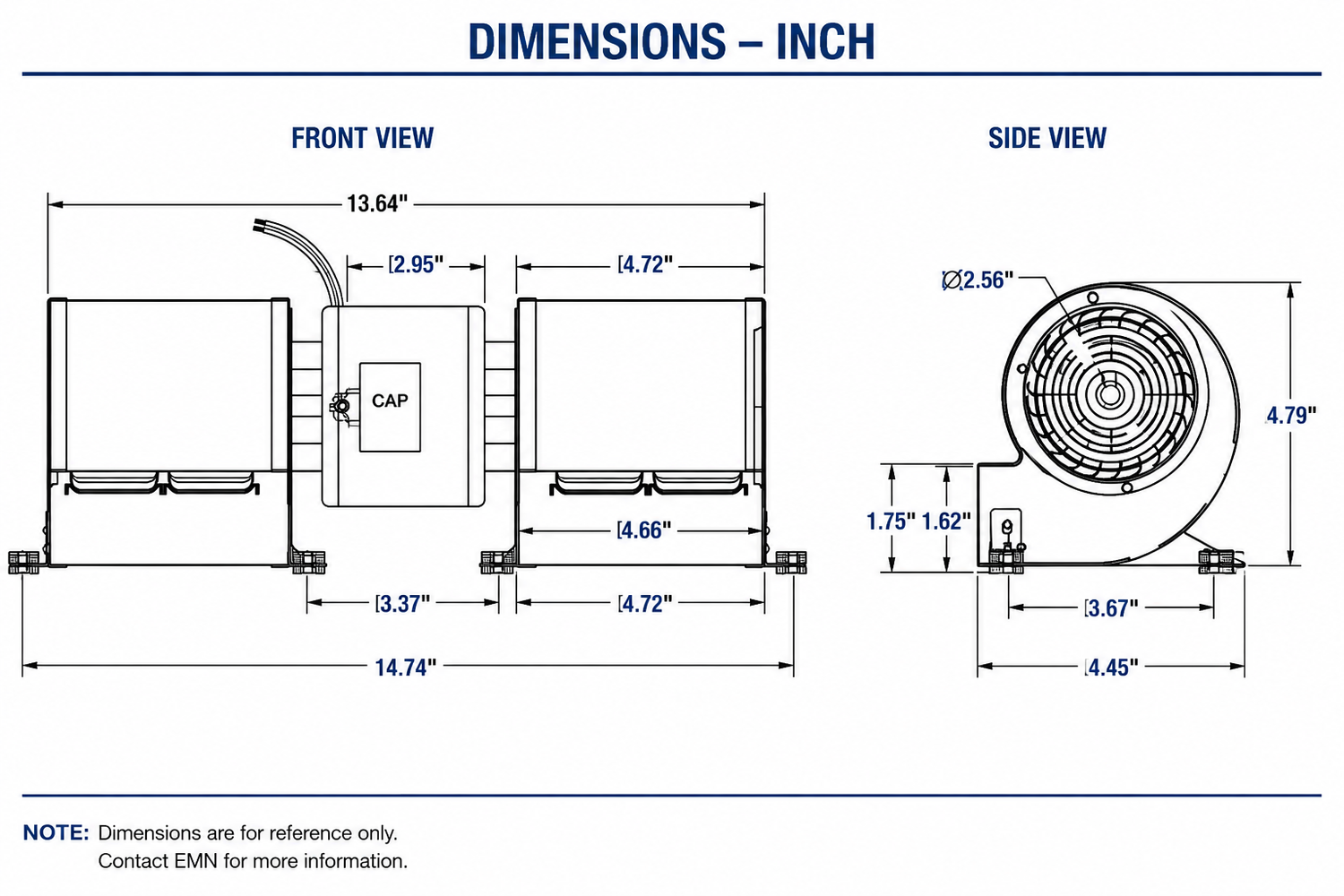

• Outlet Size: 1.62 in × 4.72 in

• Overall Height: 4.8 in

• Max Ambient Temperature: 104 °F

• Thermal Protection: Automatic overload protection

• Certifications: cULus Approved

This blower offers dependable performance with its compact size, durable construction, and thermal protection, making it a practical replacement for discontinued or OEM units in residential heating applications.

CROSS REFERENCE

• 1TDU8 / 1TDU8A

• 4C826

• A212

• 7021-6108 / 7021-6381 / 7021-6465 / 7021-7931 / 7021-9025 / 7021-7624
