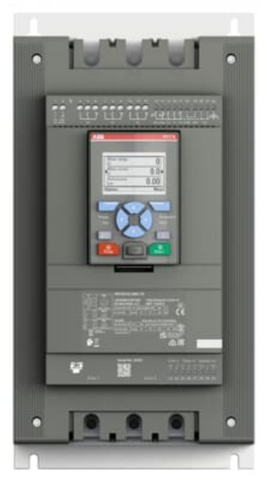

PSTX142-690-70, Softstarter - 142 A - 208 ... 690 V AC

PSTX142-690-70, Softstarter - 142 A - 208 ... 690 V AC

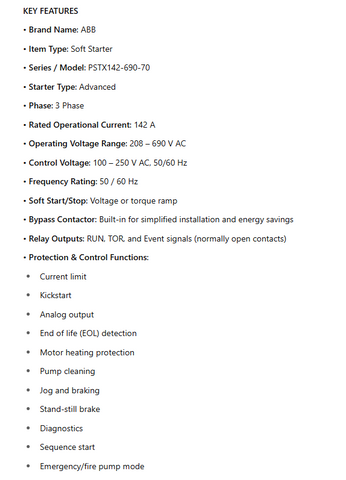

KEY FEATURES

• Brand Name: ABB

• Item Type: Soft Starter

• Series / Model: PSTX142-690-70

• Starter Type: Advanced

• Phase: 3 Phase

• Rated Operational Current: 142 A

• Operating Voltage Range: 208 – 690 V AC

• Control Voltage: 100 – 250 V AC, 50/60 Hz

• Frequency Rating: 50 / 60 Hz

• Soft Start/Stop: Voltage or torque ramp

• Bypass Contactor: Built-in for simplified installation and energy savings

• Relay Outputs: RUN, TOR, and Event signals (normally open contacts)

• Protection & Control Functions:

• Current limit

• Kickstart

• Analog output

• End of life (EOL) detection

• Motor heating protection

• Pump cleaning

• Jog and braking

• Stand-still brake

• Diagnostics

• Sequence start

• Emergency/fire pump mode

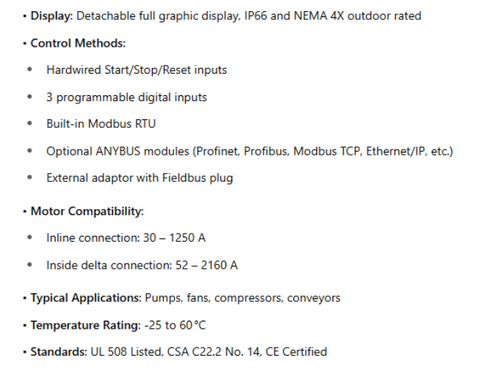

• Display: Detachable full graphic display, IP66 and NEMA 4X outdoor rated

• Control Methods:

• Hardwired Start/Stop/Reset inputs

• 3 programmable digital inputs

• Built-in Modbus RTU

• Optional ANYBUS modules (Profinet, Profibus, Modbus TCP, Ethernet/IP, etc.)

• External adaptor with Fieldbus plug

• Motor Compatibility:

• Inline connection: 30 – 1250 A

• Inside delta connection: 52 – 2160 A

• Typical Applications: Pumps, fans, compressors, conveyors

• Temperature Rating: -25 to 60 °C

• Standards: UL 508 Listed, CSA C22.2 No. 14, CE Certified
