WEG  |  SKU: EMN-019596

PESW-B65D45EX-R72, Enclosed Starter, 50Hp@575, 600 V Coil with Stop-Reset Pushbuttons - Three Phase

$679.54
shipping

Estimate shipping

Description

PESW-B65D45EX-R72, Enclosed Starter, 50Hp@575, 600 V Coil with Stop-Reset Pushbuttons - Three Phase

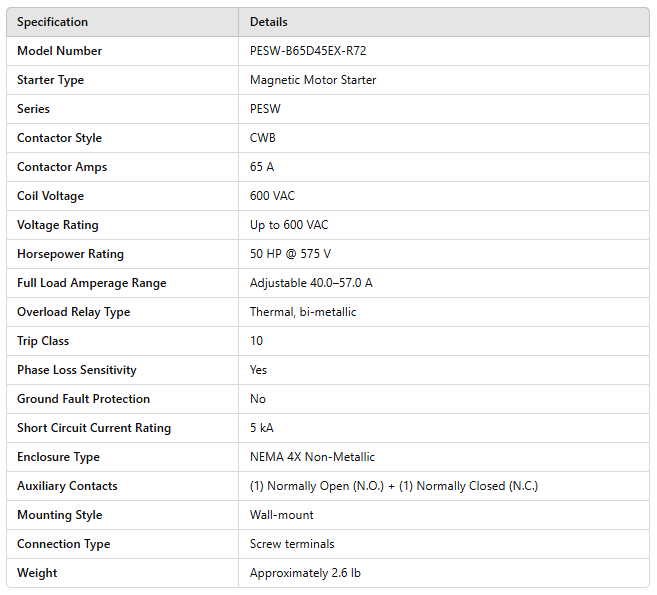

Specification Details
Model Number PESW-B65D45EX-R72
Starter Type Magnetic Motor Starter
Series PESW
Contactor Style CWB
Contactor Amps 65 A
Coil Voltage 600 VAC
Voltage Rating Up to 600 VAC
Horsepower Rating 50 HP @ 575 V
Full Load Amperage Range Adjustable 40.0–57.0 A
Overload Relay Type Thermal, bi-metallic
Trip Class 10
Phase Loss Sensitivity Yes
Ground Fault Protection No
Short Circuit Current Rating 5 kA
Enclosure Type NEMA 4X Non-Metallic
Auxiliary Contacts (1) Normally Open (N.O.) + (1) Normally Closed (N.C.)
Mounting Style Wall-mount
Connection Type Screw terminals
Weight Approximately 2.6 lb

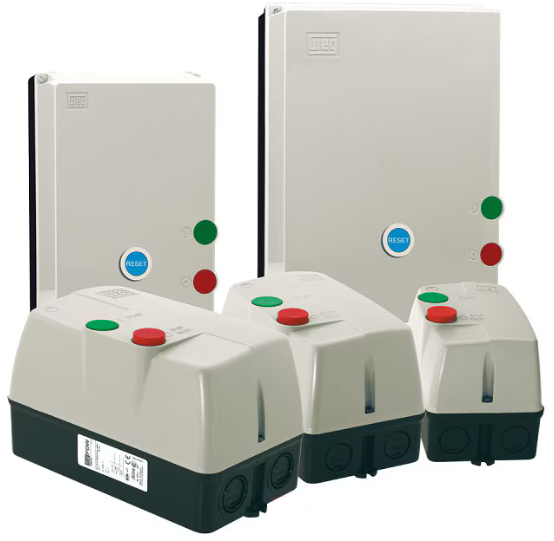

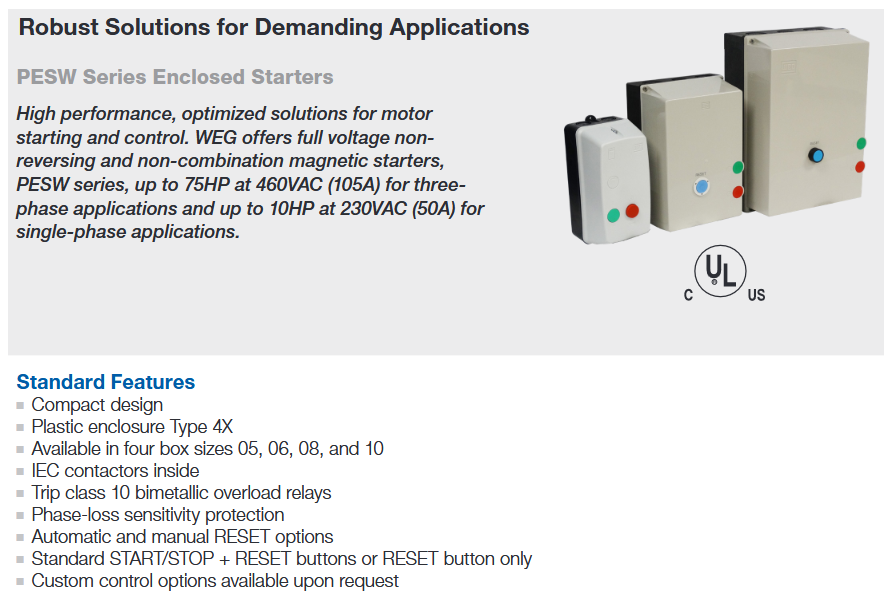

PESW Series Enclosed Starters

High performance, optimized solutions for motor
starting and control. WEG offers full voltage non-
reversing and non-combination magnetic starters,
PESW series, up to 75HP at 460VAC (105A) for three-
phase applications and up to 10HP at 230VAC (50A) for
single-phase applications.

Standard Features:

  • Compact design
  • Plastic enclosure Type 4X
  • Available in four box sizes 05, 06, 08, and 10
  • IEC contactors inside
  • Trip class 10 bimetallic overload relays
  • Phase-loss sensitivity protection
  • Automatic and manual RESET options
  • Standard START/STOP + RESET buttons or RESET button only
  • Custom control options available upon request
