PDH00525, 5Hp, 3600 RPM, 575 V, 3 Ph, 60 Hz, TEFC, Frame 184T

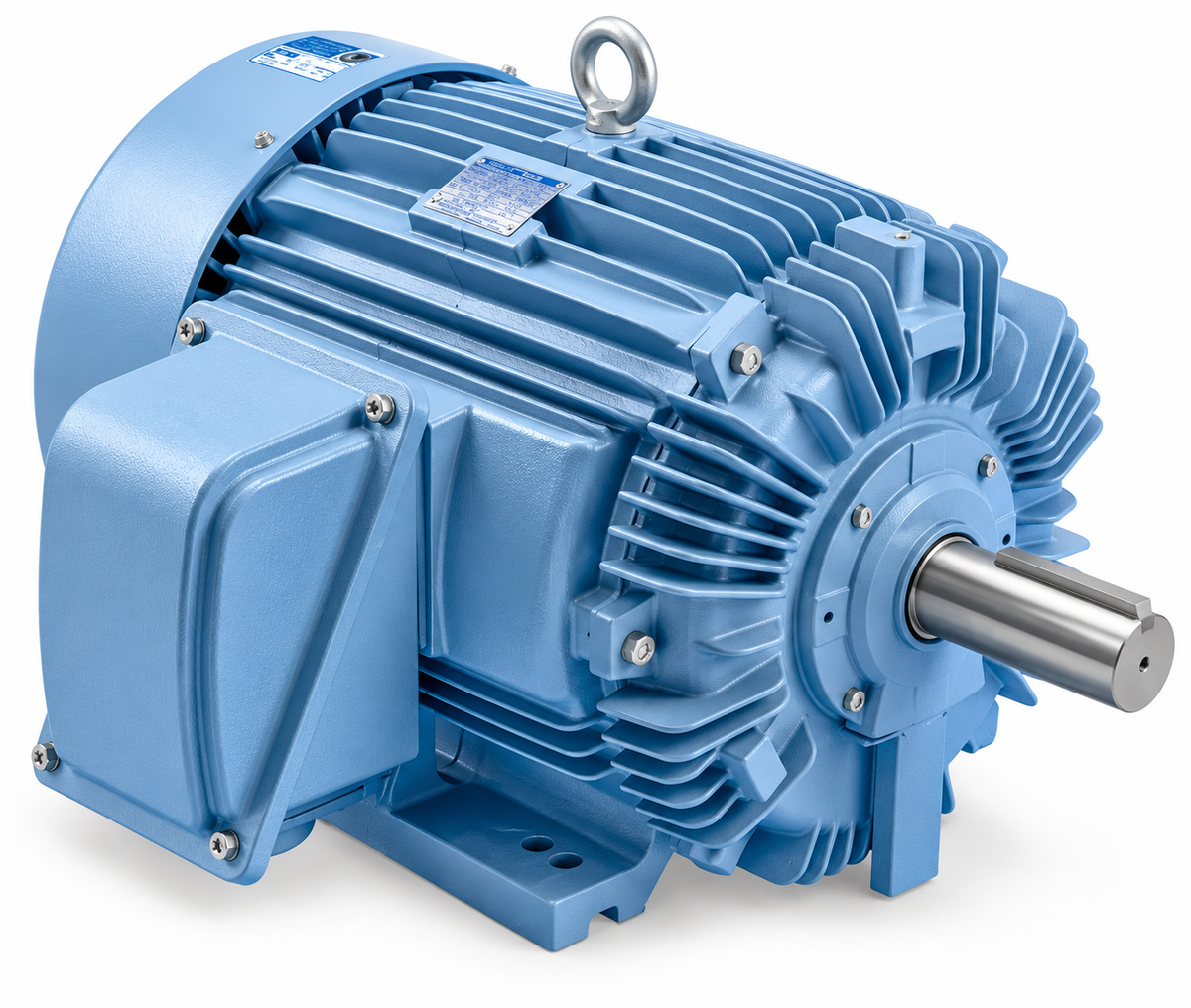

This three‑phase AC motor is built for severe‑duty industrial use, delivering 5 Hp at 3600 RPM with totally enclosed fan‑cooled protection in a 184T frame. It offers inverter‑duty capability and high efficiency for demanding applications.

KEY FEATURES

• Model: PDH00525

• Product Type: Electric Motors

• Horsepower: 5 Hp (3.75 kW)

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 3600 RPM @ 60 Hz

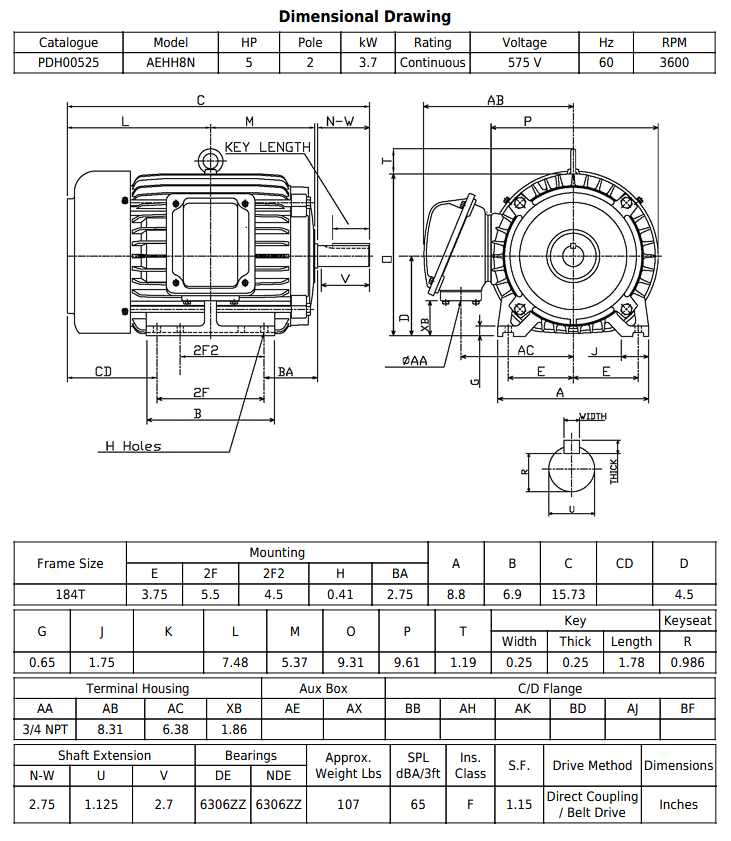

• Frame: 184T

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15 @ 60 Hz

• Efficiency: 88.5 %

• Current: 4.58 A @ 575 V

• Duty: Continuous

• Insulation Class: F

• Design Code: NEMA Design B

• Bearings: Drive End 6306ZZ; Non‑Drive End 6206ZZ

• Inverter Duty: Yes (10:1 Constant Torque / 20:1 Variable Torque)

• Number of Speeds: 1

• IP Code: IP54

• Ambient Rating: 40 °C

CROSS REFERENCE

• 1LE23211CA313AA3

• ECP3663T-5

• BA2N005V5 / BC2N005V5

• E655A

• GT1112A
