PDH00385, 3Hp, 900RPM, 575V, 3Ph, 60Hz, TEFC, Frame 215T

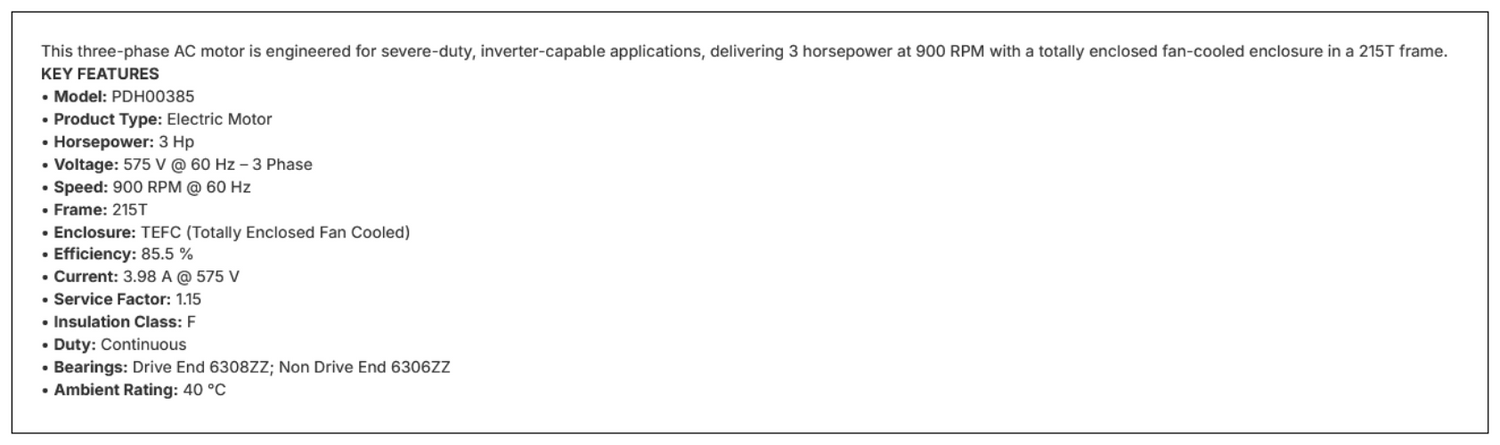

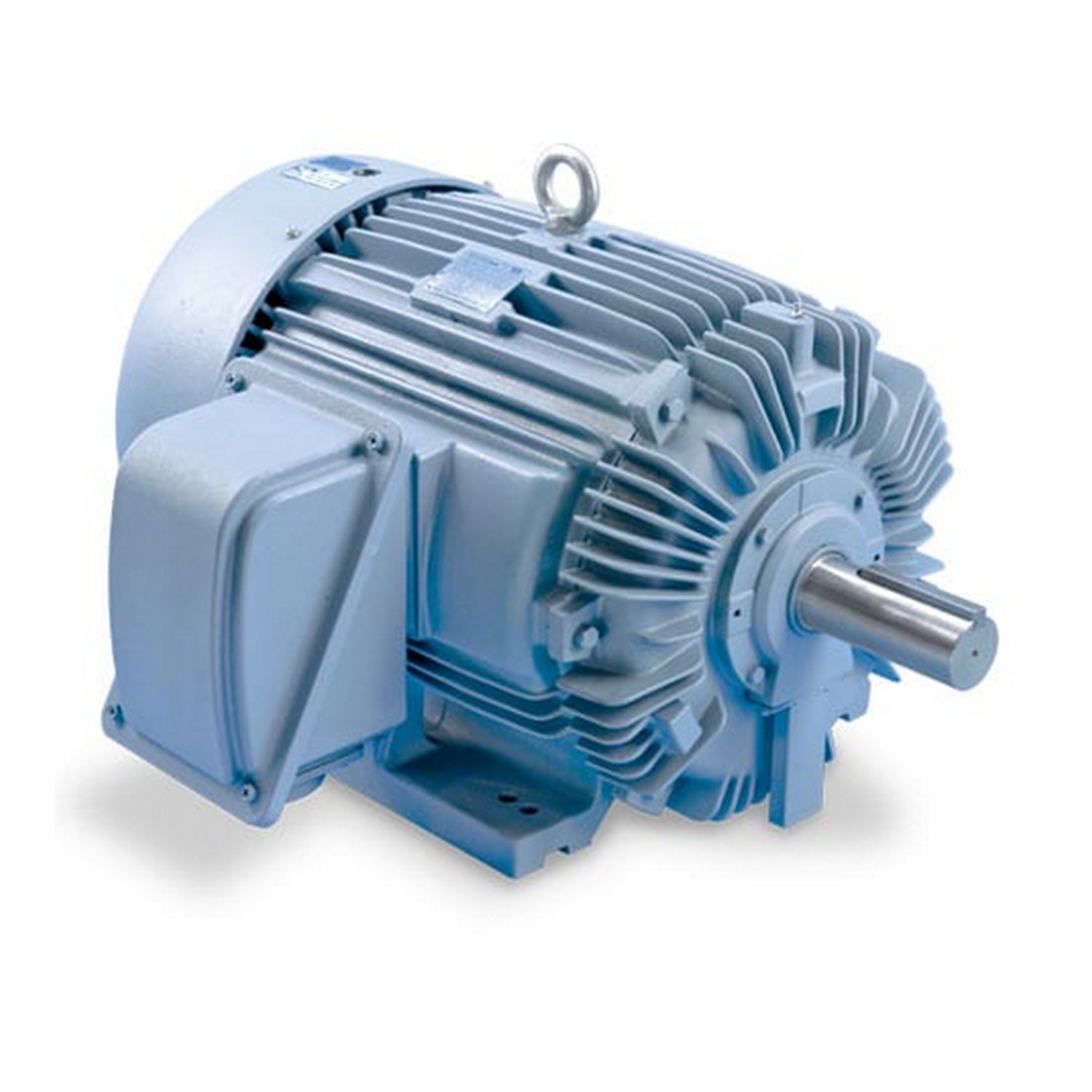

This three-phase AC motor is engineered for severe-duty, inverter-capable applications, delivering 3 horsepower at 900 RPM with a totally enclosed fan-cooled enclosure in a 215T frame.

KEY FEATURES

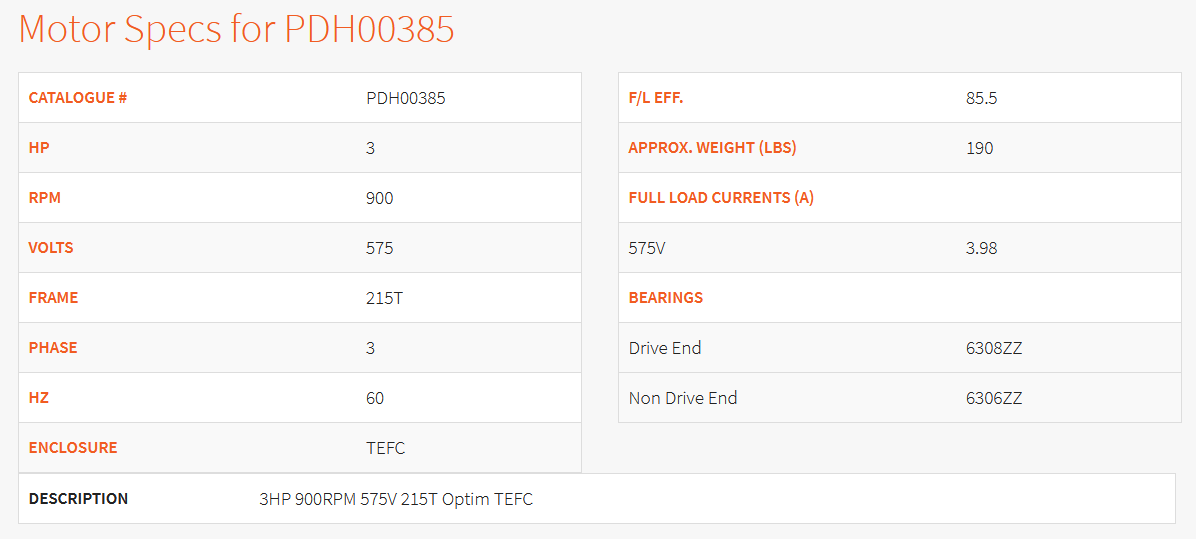

• Model: PDH00385

• Product Type: Electric Motor

• Horsepower: 3 Hp

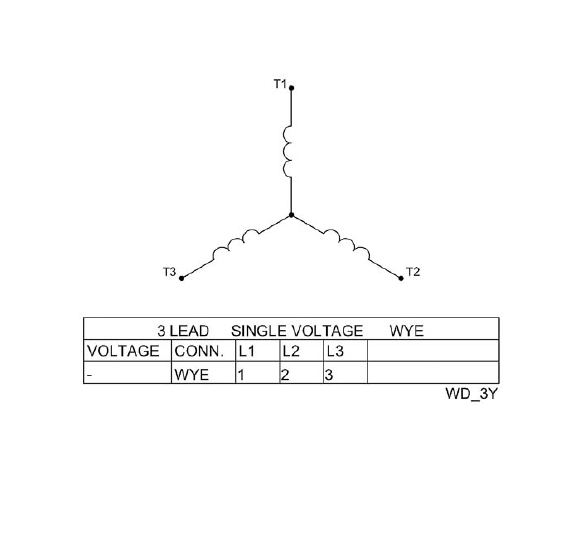

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 900 RPM @ 60 Hz

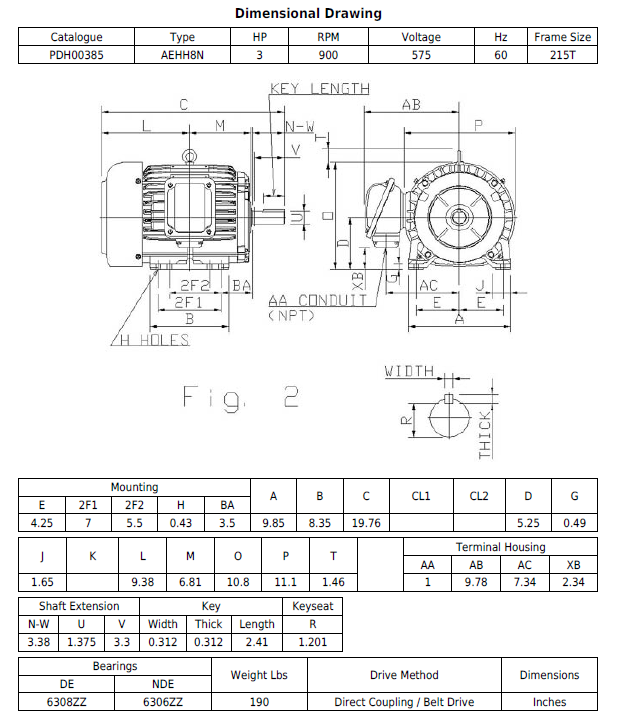

• Frame: 215T

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Efficiency: 85.5 %

• Current: 3.98 A @ 575 V

• Service Factor: 1.15

• Insulation Class: F

• Duty: Continuous

• Bearings: Drive End 6308ZZ; Non Drive End 6306ZZ

• Ambient Rating: 40 °C
