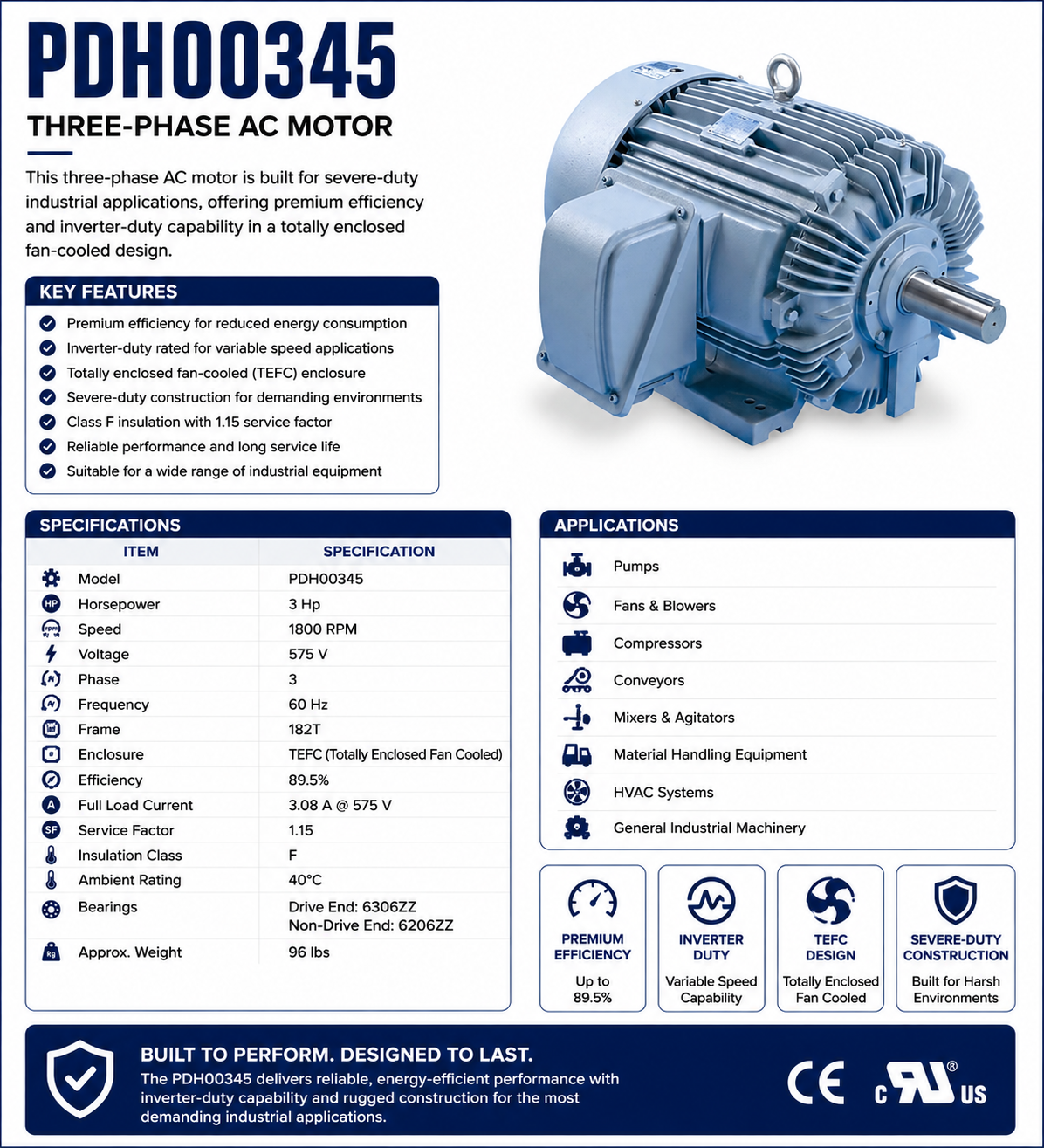

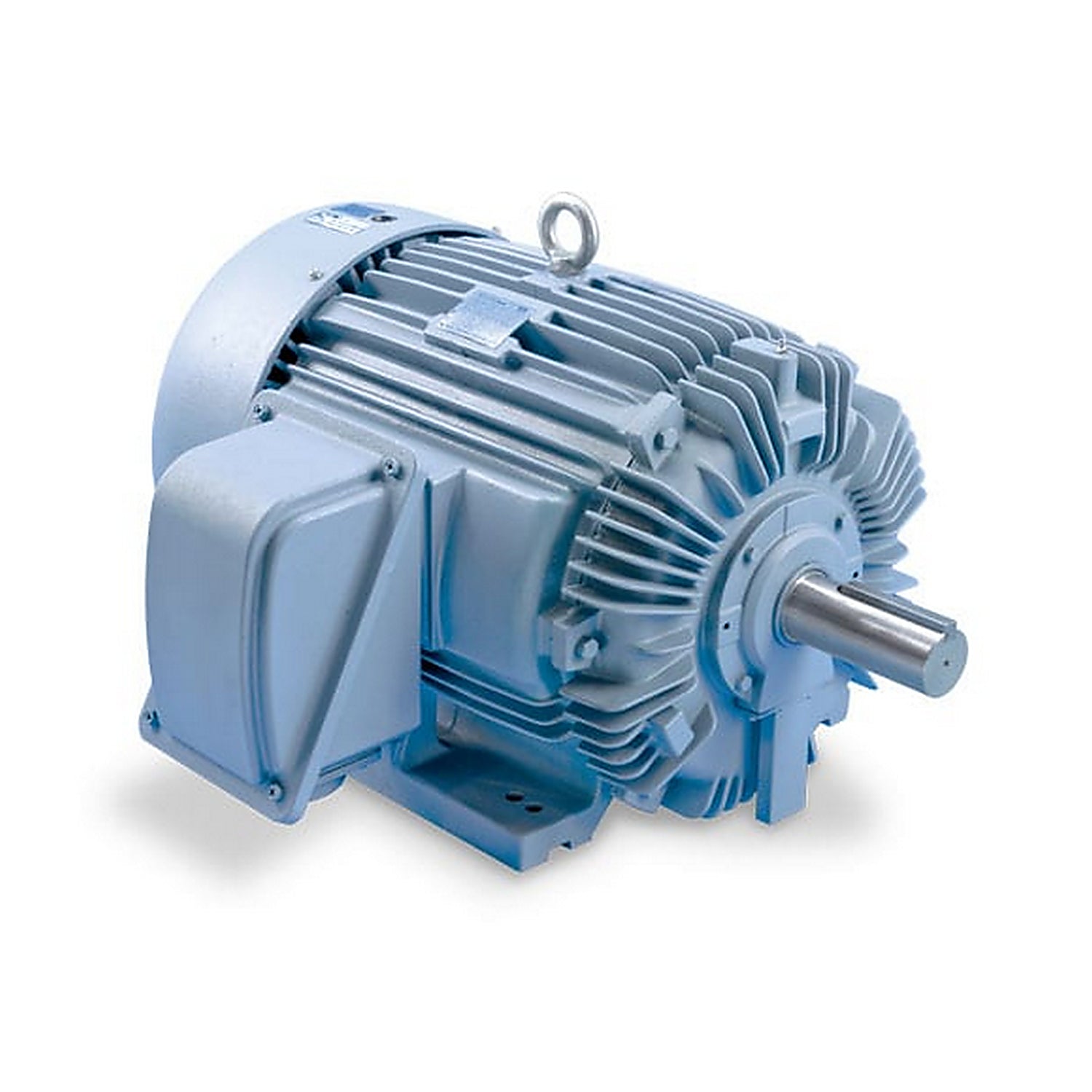

PDH00345, 3Hp, 1800RPM, 575V, 3Ph, 60Hz, TEFC, Frame 182T

This three-phase AC motor is built for severe-duty industrial applications, offering premium efficiency and inverter-duty capability in a totally enclosed fan-cooled design.

Replace : MPP-17, CD3P2G, GT1110A, ELP3P2G

KEY FEATURES

• Model: PDH00345

• Horsepower: 3 Hp

• Speed: 1800 RPM

• Voltage: 575 V

• Phase: 3

• Frequency: 60 Hz

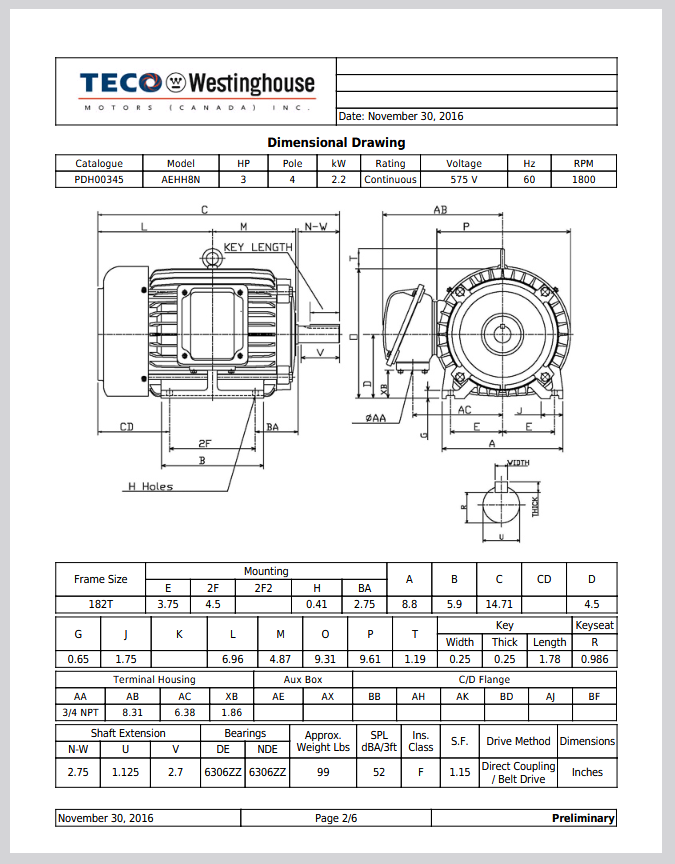

• Frame: 182T

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Efficiency: 89.5%

• Approx. Weight: 96 lbs

• Full Load Current: 3.08 A @ 575 V

• Bearings: Drive End 6306ZZ; Non‑Drive End 6206ZZ

• Service Factor: 1.15

• Insulation Class: F

• Ambient Rating: 40°C
