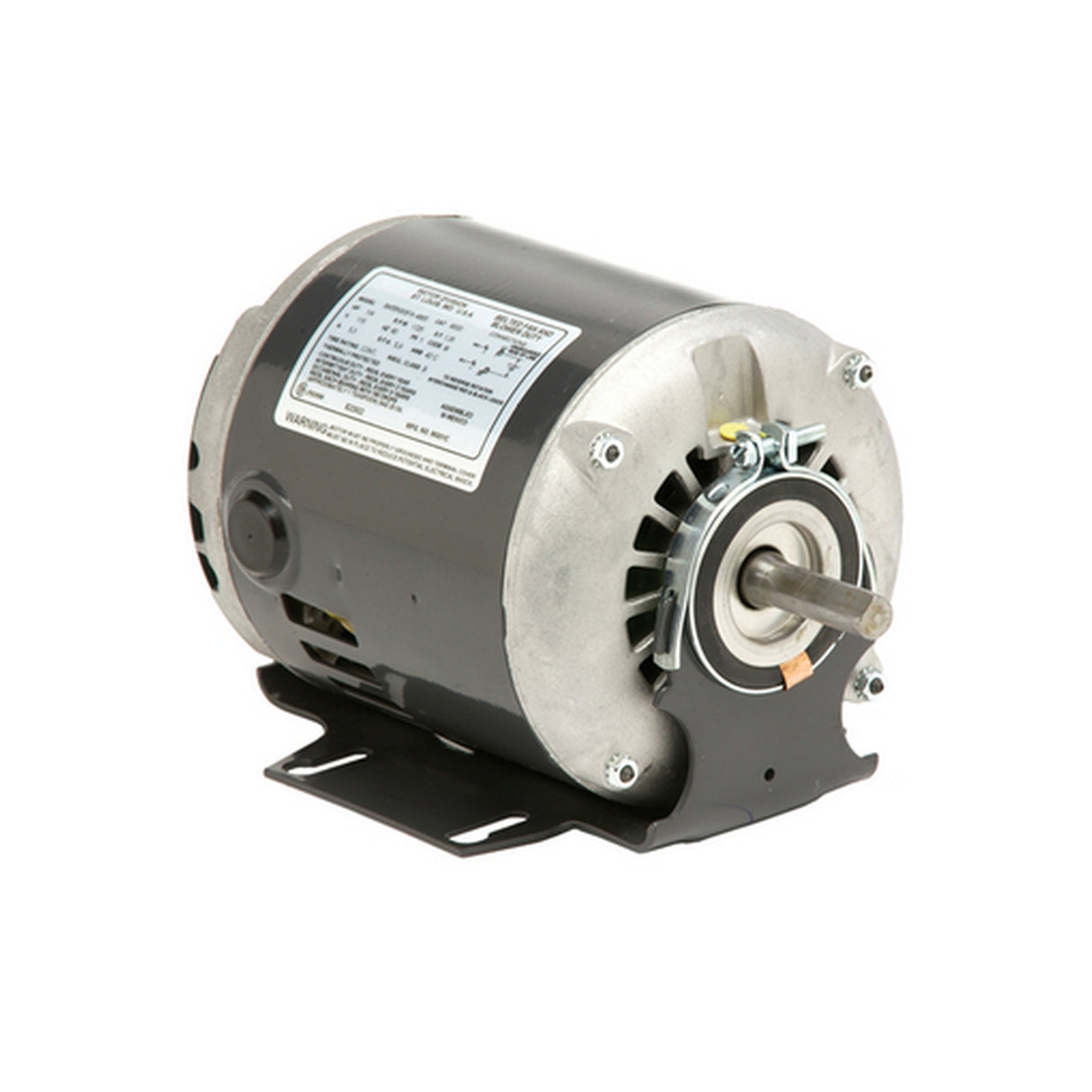

PD6006, 0.5Hp, 1725RPM, 115/208‑230V, 1Ph, 60/50Hz, ODP, Frame 48, S055REY8243012B

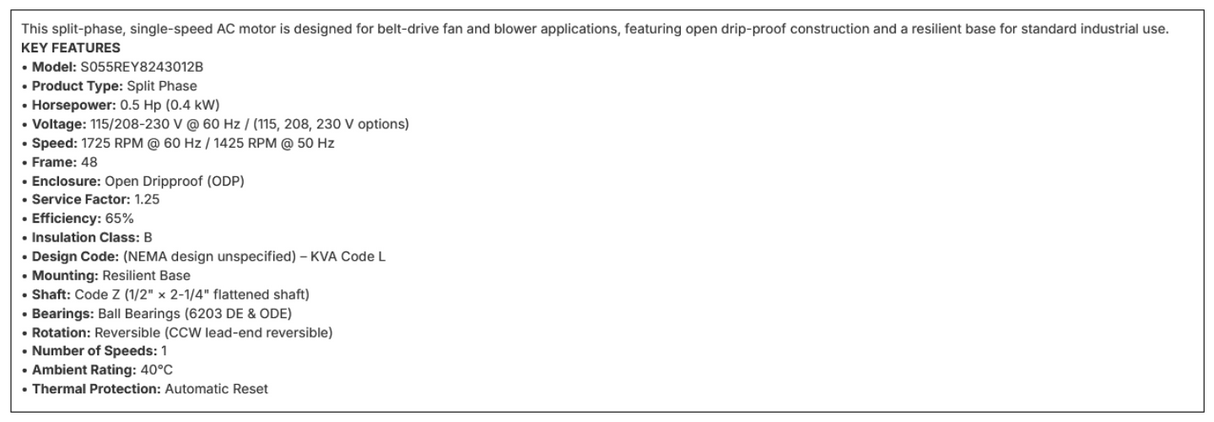

This split‑phase, single‑speed AC motor is designed for belt‑drive fan and blower applications, featuring open drip‑proof construction and a resilient base for standard industrial use.

KEY FEATURES

• Model: S055REY8243012B

• Product Type: Split Phase

• Horsepower: 0.5 Hp (0.4 kW)

• Voltage: 115/208‑230 V @ 60 Hz / (115, 208, 230 V options)

• Speed: 1725 RPM @ 60 Hz / 1425 RPM @ 50 Hz

• Frame: 48

• Enclosure: Open Dripproof (ODP)

• Service Factor: 1.25

• Efficiency: 65%

• Insulation Class: B

• Design Code: (NEMA design unspecified) – KVA Code L

• Mounting: Resilient Base

• Shaft: Code Z (1/2" × 2‑1/4" flattened shaft)

CROSS REFERENCE

• 309P300, 309P642, 316P161, 316P169, 316P175, 316P308, 316P309, 316P312, 316P523, 3161P571, 316P602, 316P750, 316P759, 316P769, 316P817, 316P842, 316P845, 317P003, 317P104, 317P116, 319P298, 325P374, 325P443, 325P505, 325P530, 325P570, 325P582, A22-28, S48A74A02, S48H4LA11A2, S48H4LA11A3, S48H4LA59, S48H4LA59A2, GF2034

• 140044, 141518

• 3K165, 3K291, 3K591, 3K595, 4K252, 4K282, 4K736, 5K221, 5K251, 5K257, 5K682, 5K918, 5K944, 6K267, 6K570, 6K585, 6K647, 6K655, 6K685, 6K778, 6K836

• S55NXDZD2734, S55NXTE3693, S55NXTE841, SA55KFL5517, SA55MXSCP2888, SA55NXFJP5386, 812, 841, 937, 1034, 1193, 2759, 4523, 5186, 8100, 841CV

• 3J12DA11, 3J223GX5, 3J355, 3J519GX5, 3J523AX, 5KH32DN5677, 5KH32GN5620, 5KH32HN5620, 5KH32HN5641, 5KH33GG111, 5KH33GG205, 5KH33HN5700, 5KH35HN52, 5KH35KG113, 5KH35KG154, 5KH35NG384, 5KH35NHA522, 5KH37NG368, 5KH38NG201, 5KH38NG210, 5KH39QN5514, 5KH3RFA1259, 5KH3SGA0167, 5KH3SHA0200, 5KH3UHA0454, 5KH3UKA0458, 5KH3UKA0465, 5KH42JG16, 5XBH002, 5XBH006, 5XBH078, 5XBJ014, 5XBN009, 5XBP042, 7J402AS, 7J457, 4308, 4310, 4706, 4752, 4762, 4766, 4772, 4776, 4791, 4796

• 48C17D2093, 48S17D1194, 48S17D2056, 48S17D2086, 48S17D2094, 48S17D2108, B207, B400, C1093, D143, S106, S107, S127, B208, 048S17D2109

• 10406

• BF4706, BF4707, R841, BF-4708

• HG2G018, HG2G7018, HG2H002, HG2H009, HG2P021, 805, 839, 934, CK48HB03J04

• BF2054, SS935B, SA55GWL-5029

• Bearings: Ball Bearings (6203 DE & ODE)

• Rotation: Reversible (CCW lead‑end reversible)

• Number of Speeds: 1

• Ambient Rating: 40°C

• Thermal Protection: Automatic Reset
