CENTURY  |  SKU: EMN-016158

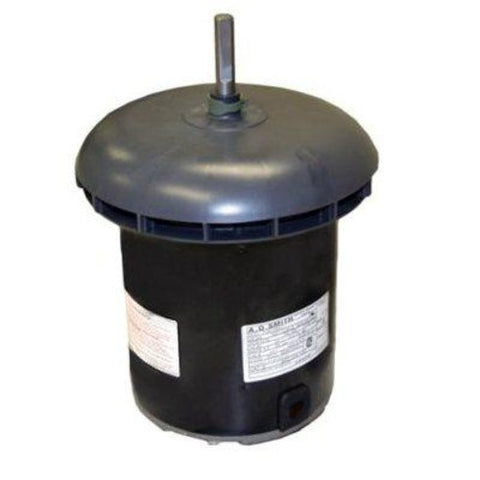

OAN747, CENTURY, 3/4 HP, 1075 RPM, 460V, F48U09A27, K055NPB1104031B, CONDENSER FAN

$793.64
shipping

Estimate shipping

Description

OAN747, CENTURY, 8233 US MOTOR, K055NPB1104031B, F48U09A27, 5481H, Us motors
Replaced by 3742H

General Specifications
Model : Catalog No : OAN747
Part Description : MODEL-RFHP-48FR Category : OEM Replacement
Stock : Yes
Nameplate Specifications
Output HP : 3/4 HP Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 460 V
Current : 2.0 A Speed : 1075 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 48Y Enclosure : Semi Enclosed
Overload Protector : Automatic Ambient Temperature : 60 °C
UL : Recognized CSA : Y
CE : N
Technical Specifications
Electrical Type : Permanent Split Capacitor Starting Method : Induction Run
Poles : 6 Rotation : Counterclockwise Lead End
Mounting : Round Belly Band Motor Orientation : Vertical Shaft Up
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : Double Flat
Overall Length : 10.36 in Frame Length : 6.50 in
Shaft Diameter : 0.500 in Shaft Extension : 1 7/8 in
UPC : 786674026965 Weight :

27.00 LB



Features
  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 96" Leads with Quick Connect Terminals
  • Belly Band Mount Vertical Shaft Up
