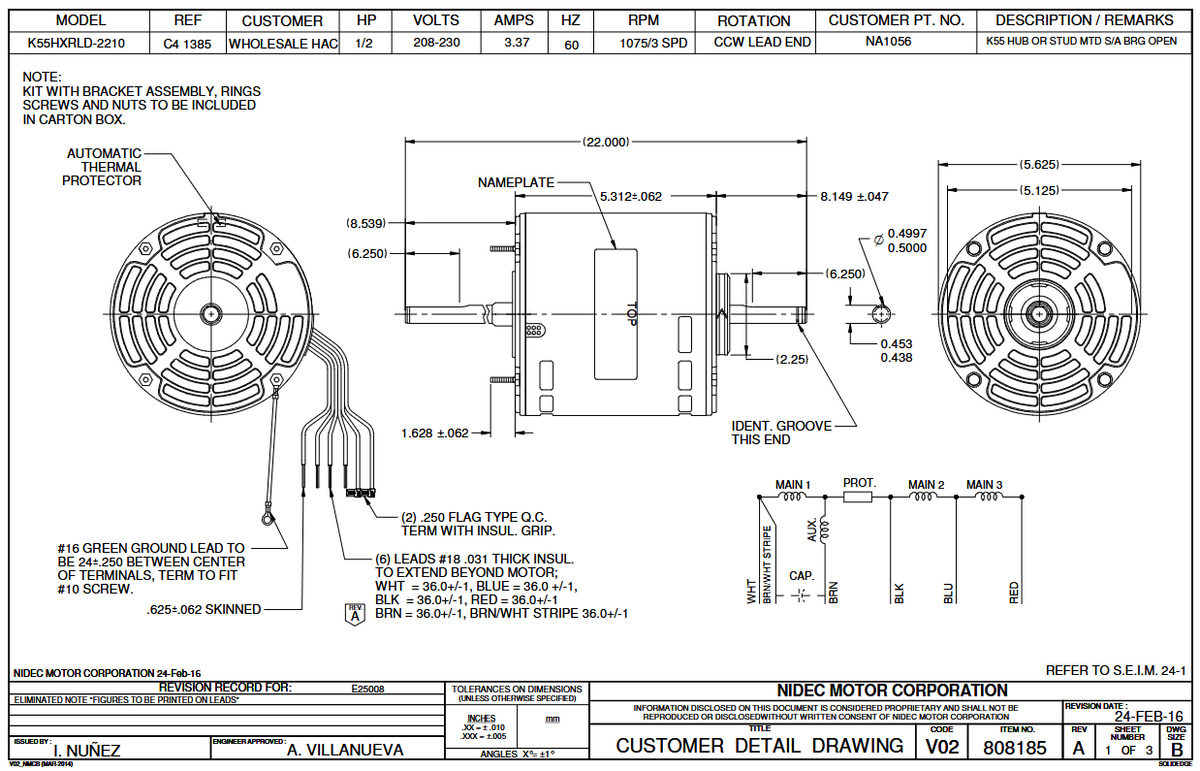

NA1056, 1/2Hp, 1075 RPM, 208‑230 V, 1 Ph, 60 Hz, ODP, Frame 48Y, K055RLD2210011B

This permanent split capacitor (PSC) motor is a single-phase, multi-speed blower/fan motor designed for HVAC and air-handling applications, featuring a hub/stud mount and open drip‑proof enclosure.

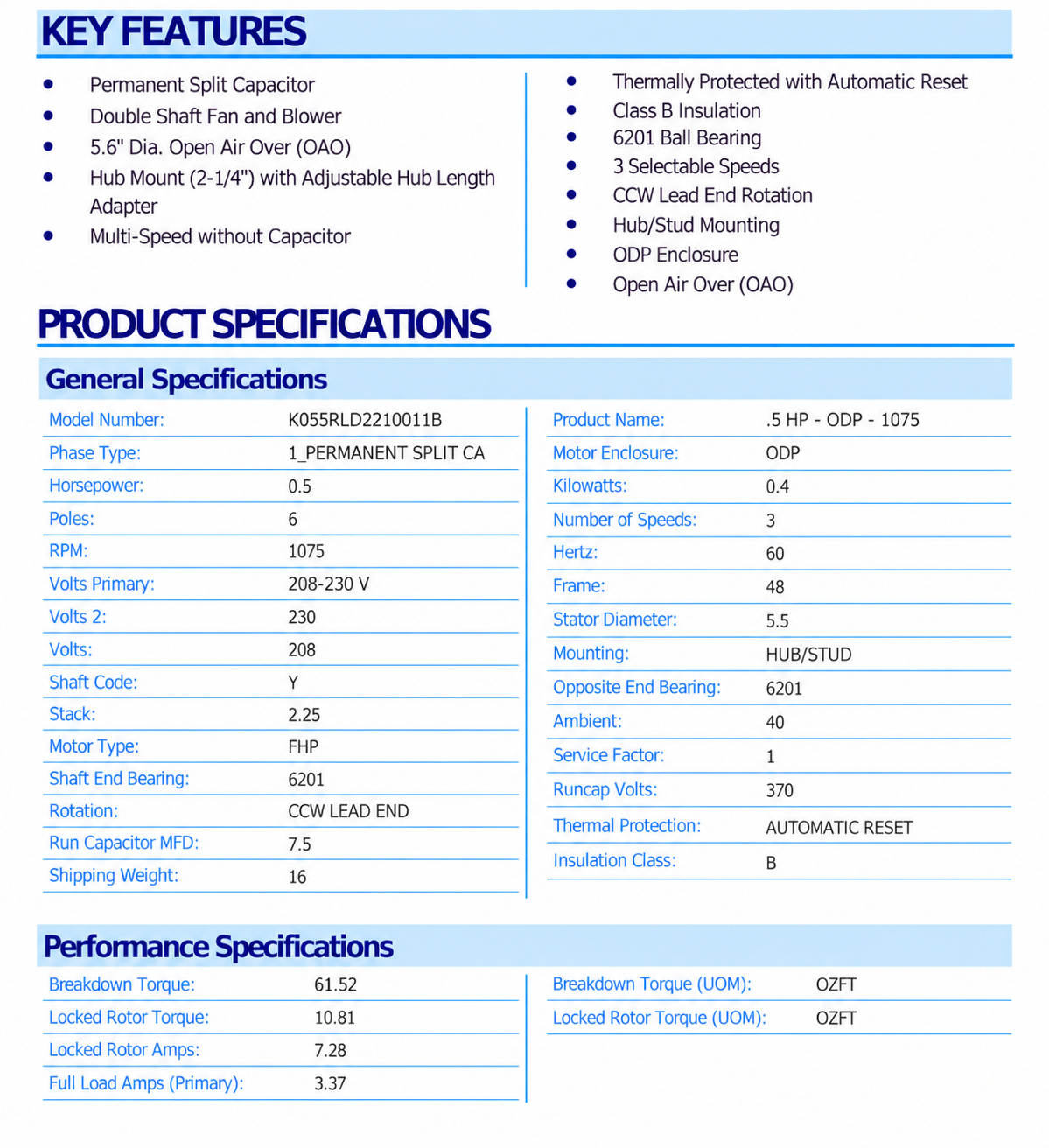

KEY FEATURES

• Model: NA1056

• Product Type: Electric Motors

• Horsepower: 1/2 Hp (0.37 kW)

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 48Y

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.00

• Mounting: Hub/Stud

• Bearings: Ball

• Rotation: Counterclockwise Lead End (CCWLE)

• Number of Speeds: 3

• Insulation Class: B

• Thermal Protection: Automatic Reset

• Ambient Rating: 40 °C

• Capacitor Required: 7.5 µF – 370 V

• Shaft: Double‑shaft, 0.5″ diameter, approx. 8.5″ length each side

• Special Feature: Hub rings (2‑1/4″) with adapters for 2‑1/2″ diameter

This motor excels in HVAC blower applications by offering a compact, versatile, and reliable multi‑speed design with convenient hub mounting and integrated thermal protection.

CROSS REFERENCE

• 323P285 / 324P121

• F48C17A02 / F48E66A01

• RA1056 / SA1056 / 0544

• HC43FE230 / HC43WE701 / P257X062

• K55HXBNW2309 / K55HXBNW3803

• K55HXDFG2178 / K55HXNRE7085

• 3136 / K5824

• 7126-1566 / 7126-2080 / D760

• 8746460131

• 5KCP38PG121 / 5KCP38PG123 / 5KCP38PG124

• 2362SX

• X062
