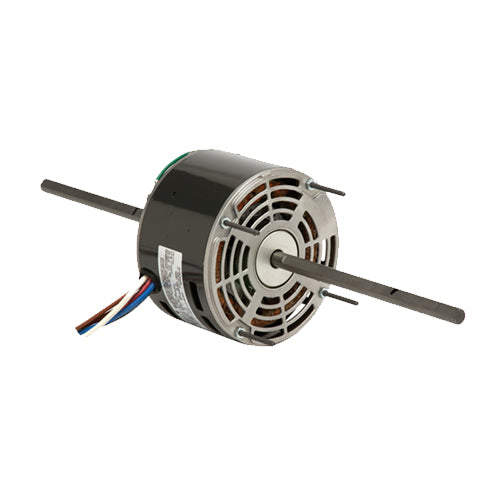

NA1034, 0.33Hp, 1625 RPM, 208-230V, 1Ph, Frame 48Y, ODP, K055RKY2204011B

NA1034, 0.33Hp, 1625 RPM, 208-230V, 1Ph, Frame 48Y, ODP, K055RKY2204011B

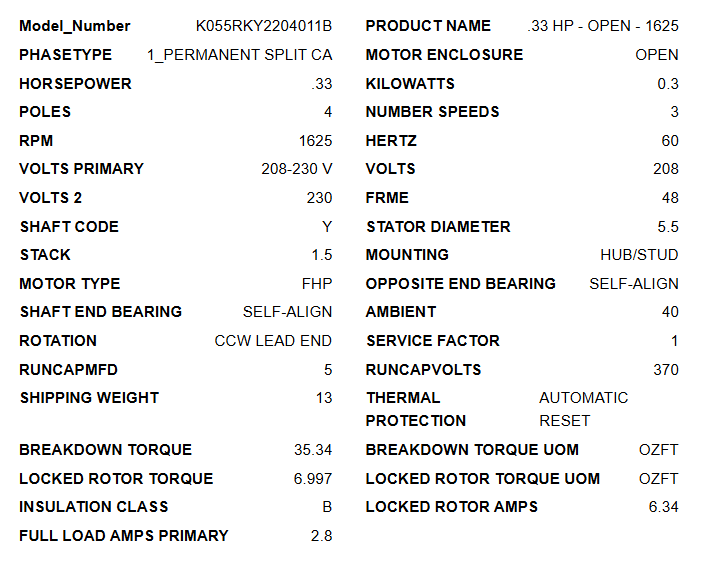

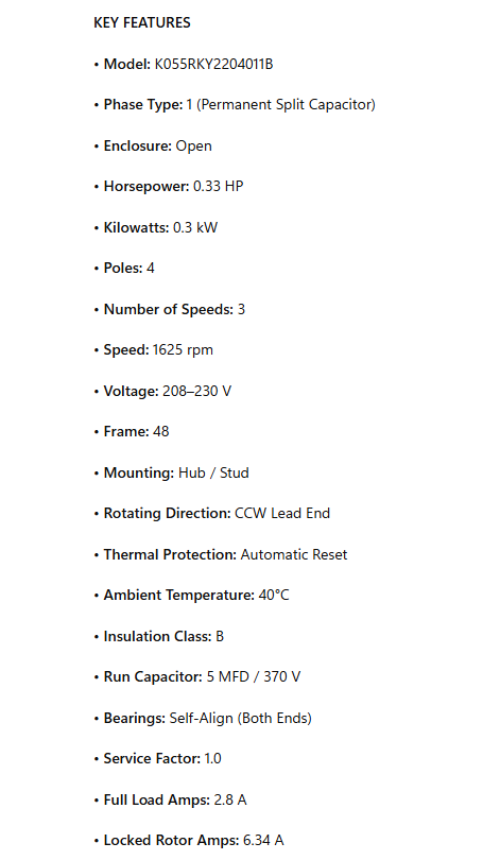

KEY FEATURES

• Model: K055RKY2204011B

• Phase Type: 1 (Permanent Split Capacitor)

• Enclosure: Open

• Horsepower: 0.33 HP

• Kilowatts: 0.3 kW

• Poles: 4

• Number of Speeds: 3

• Speed: 1625 rpm

• Voltage: 208–230 V

• Frame: 48

• Mounting: Hub / Stud

• Rotating Direction: CCW Lead End

• Thermal Protection: Automatic Reset

• Ambient Temperature: 40°C

• Insulation Class: B

• Run Capacitor: 5 MFD / 370 V

• Bearings: Self-Align (Both Ends)

• Service Factor: 1.0

• Full Load Amps: 2.8 A

• Locked Rotor Amps: 6.34 A
