1 3
BROWNING  |  SKU: EMN-007580

MVL34, Maska, Adjustable Pulleys, O.D 3.15'', 1VL34, BROWNING, MULTI BORE I.D

$36.35
shipping

Estimate shipping

Description

MVL34, MASKA, 1VL34 BROWNING,

SPECIFICATIONS

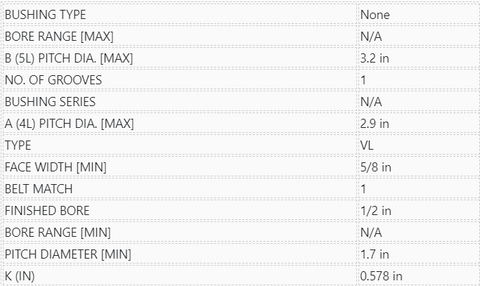

BUSHING TYPE None
BORE RANGE [MAX] N/A
B (5L) PITCH DIA. [MAX] 3.2 in
NO. OF GROOVES 1
BUSHING SERIES N/A
A (4L) PITCH DIA. [MAX] 2.9 in
TYPE VL
FACE WIDTH [MIN] 5/8 in
BELT MATCH 1
FINISHED BORE 1/2 in
BORE RANGE [MIN] N/A
PITCH DIAMETER [MIN] 1.7 in
K (IN) 0.578 in

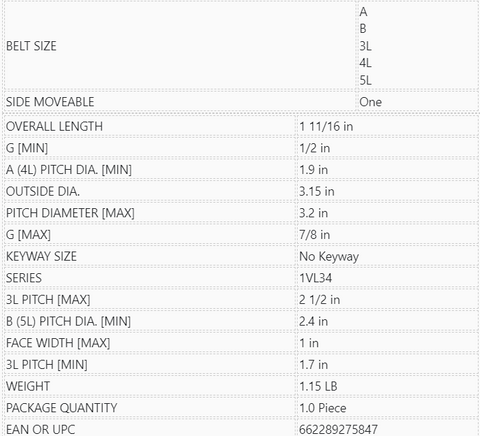

BELT SIZE A
B
3L
4L
5L
SIDE MOVEABLE One
OVERALL LENGTH 1 11/16 in
G [MIN] 1/2 in
A (4L) PITCH DIA. [MIN] 1.9 in
OUTSIDE DIA. 3.15 in
PITCH DIAMETER [MAX] 3.2 in
G [MAX] 7/8 in
KEYWAY SIZE No Keyway
SERIES 1VL34
3L PITCH [MAX] 2 1/2 in
B (5L) PITCH DIA. [MIN] 2.4 in
FACE WIDTH [MAX] 1 in
3L PITCH [MIN] 1.7 in
WEIGHT 1.15 LB
PACKAGE QUANTITY 1.0 Piece
EAN OR UPC 662289275847
