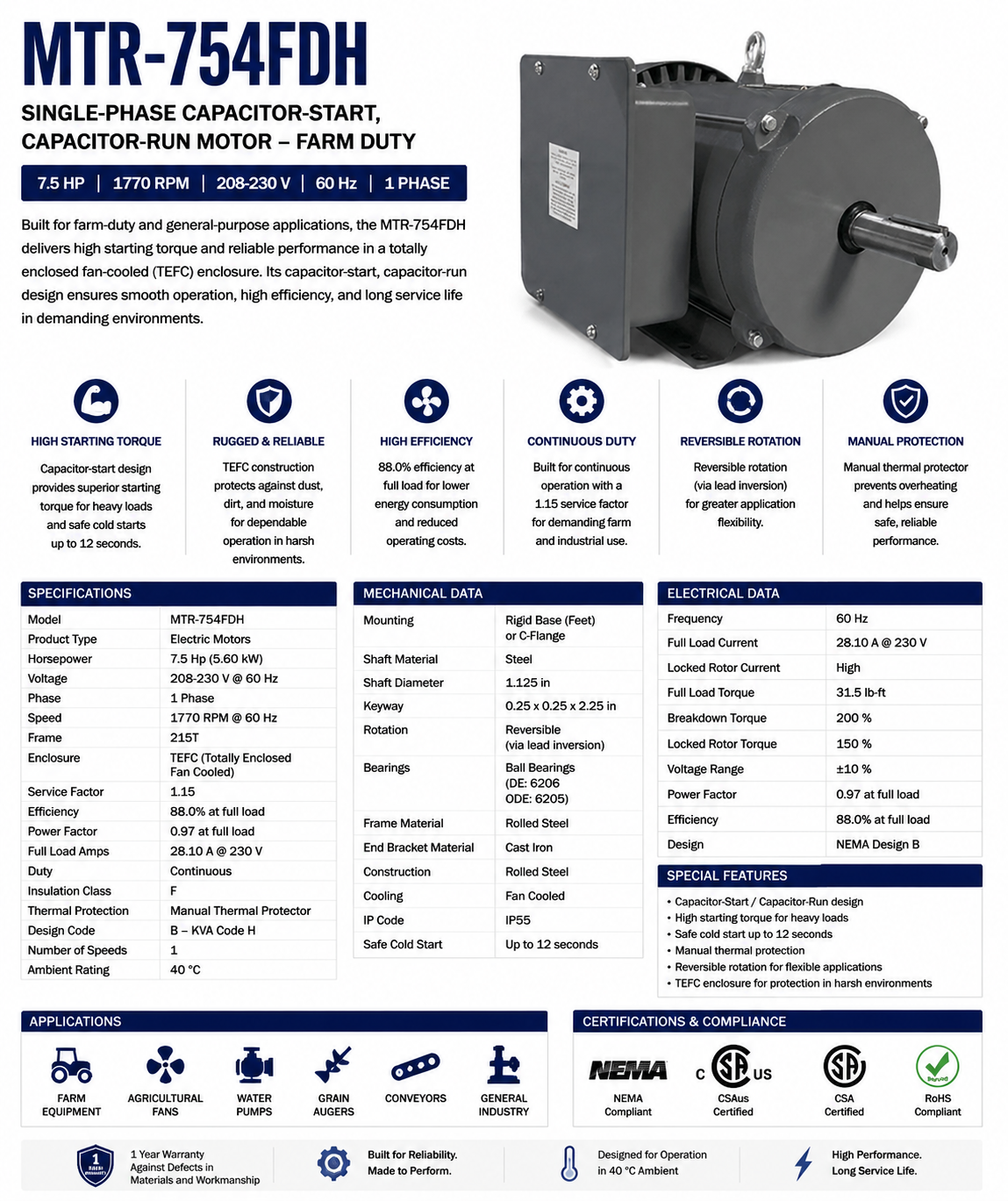

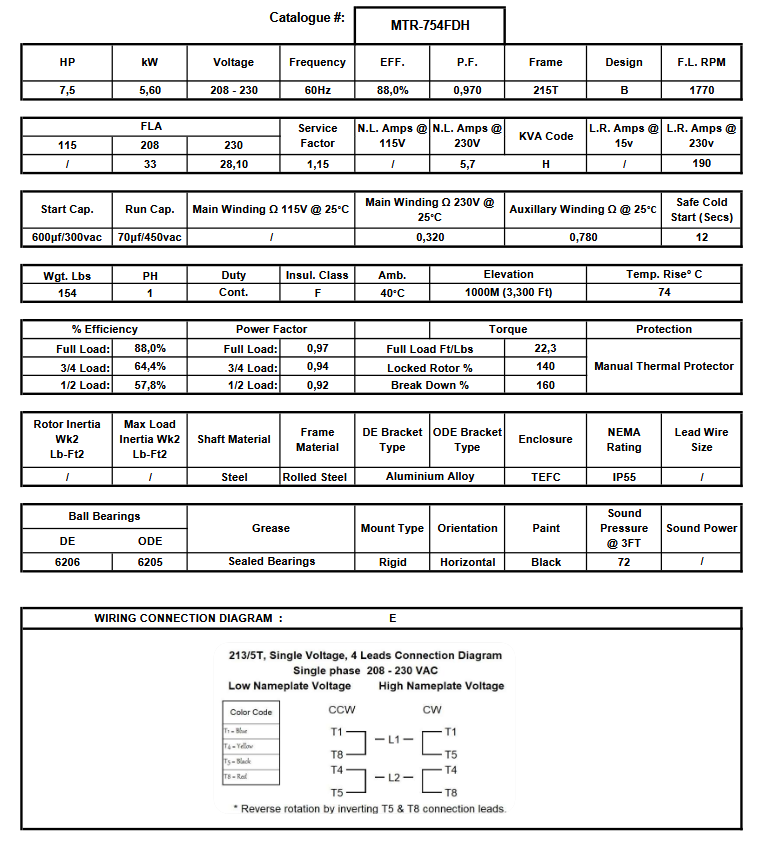

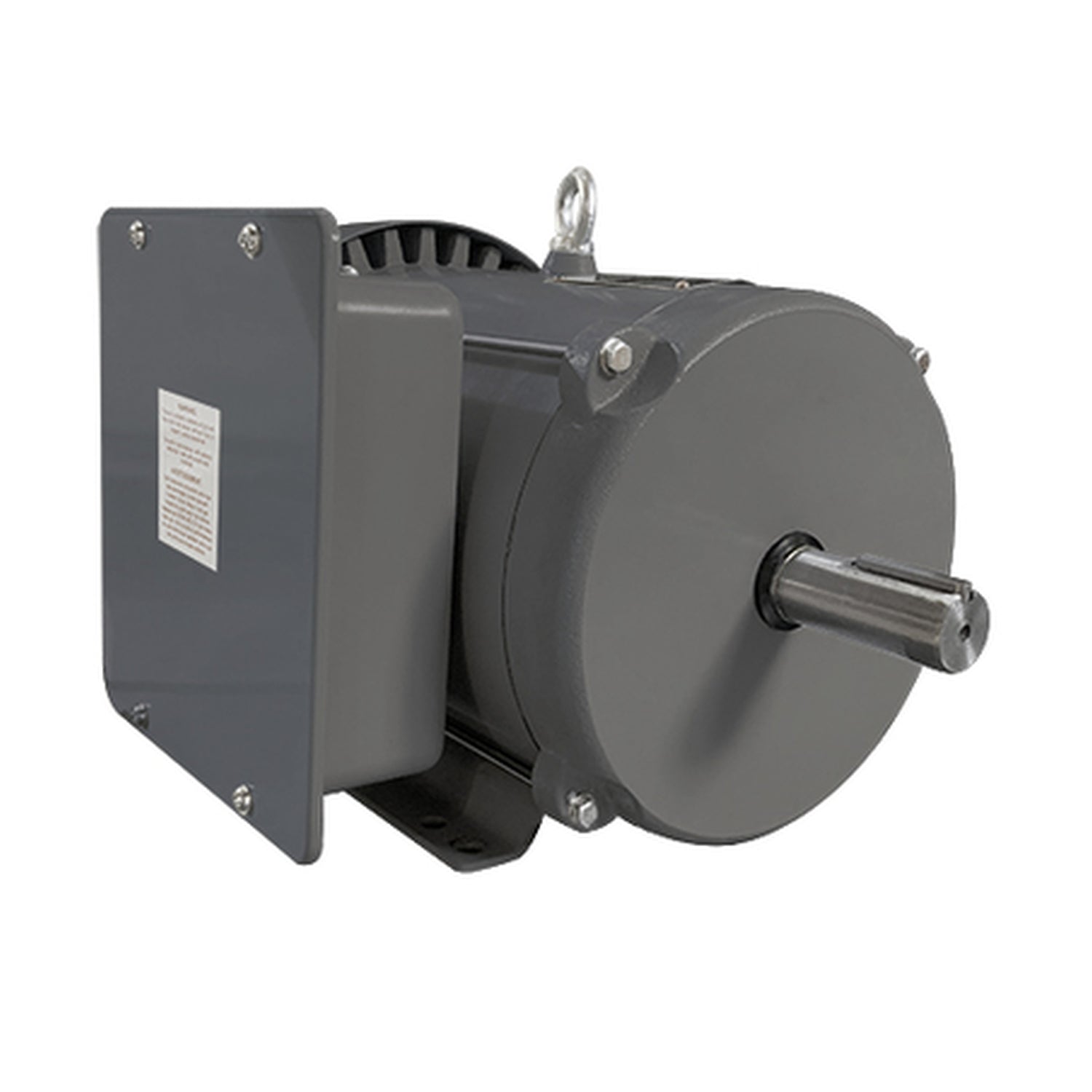

MTR‑754FDH, 7.5 Hp (5.60 kW), 1770 RPM, 208‑230 V, 1 Ph, 60 Hz, TEFC, Frame 215T

This single‑phase capacitor‑start, capacitor‑run motor is designed for farm‑duty and general‑purpose applications, offering a rigid base and TEFC construction in a 215T frame with a 1.15 service factor.

KEY FEATURES

• Model: MTR‑754FDH

• Product Type: Electric Motors

• Horsepower: 7.5 Hp (5.60 kW)

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1770 RPM @ 60 Hz

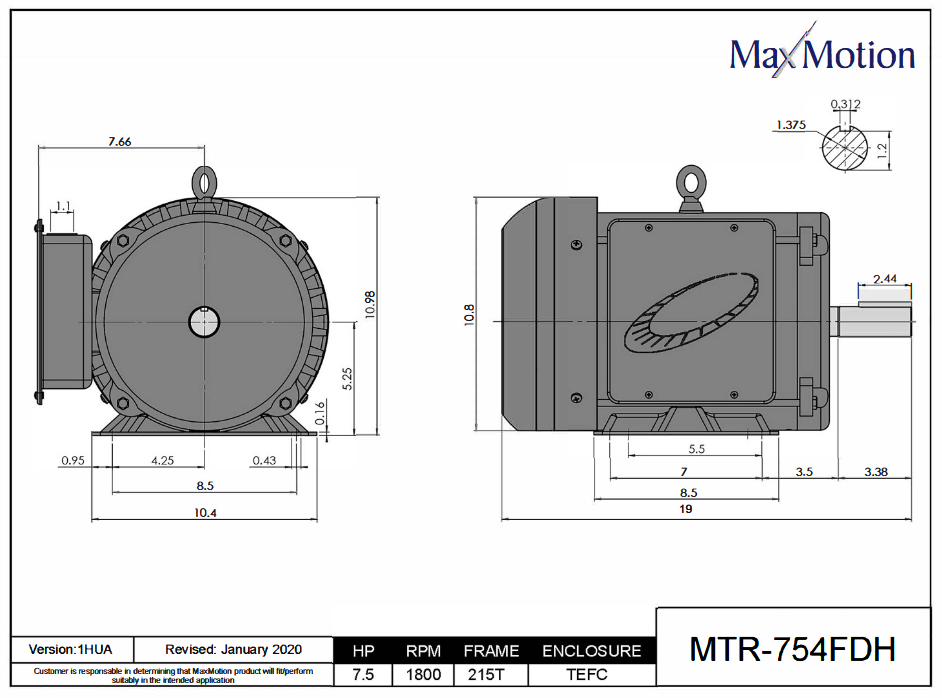

• Frame: 215T

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Efficiency: 88.0% at full load

• Power Factor: 0.97 at full load

• Current (Full Load Amps): 28.10 A @ 230 V

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: Manual Thermal Protector

• Design Code: B – KVA Code H

• Mounting: Rigid base (feet) or C‑flange

• Shaft Material: Steel

• Bearings: Ball Bearings (6206 DE & 6205 ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible (via lead inversion)

• IP Code: IP55

• Certifications: NEMA, CSAus, CSA Certified, RoHS Compliant

• Ambient Rating: 40 °C

• Special Feature: Capacitor‑Start/Capacitor‑Run design with high starting torque (Safe Cold Start: 12 s)

The motor’s rugged TEFC construction and farm‑duty design make it well‑suited for harsh environments, while the high service factor and manual thermal protection ensure reliable continuous operation.
