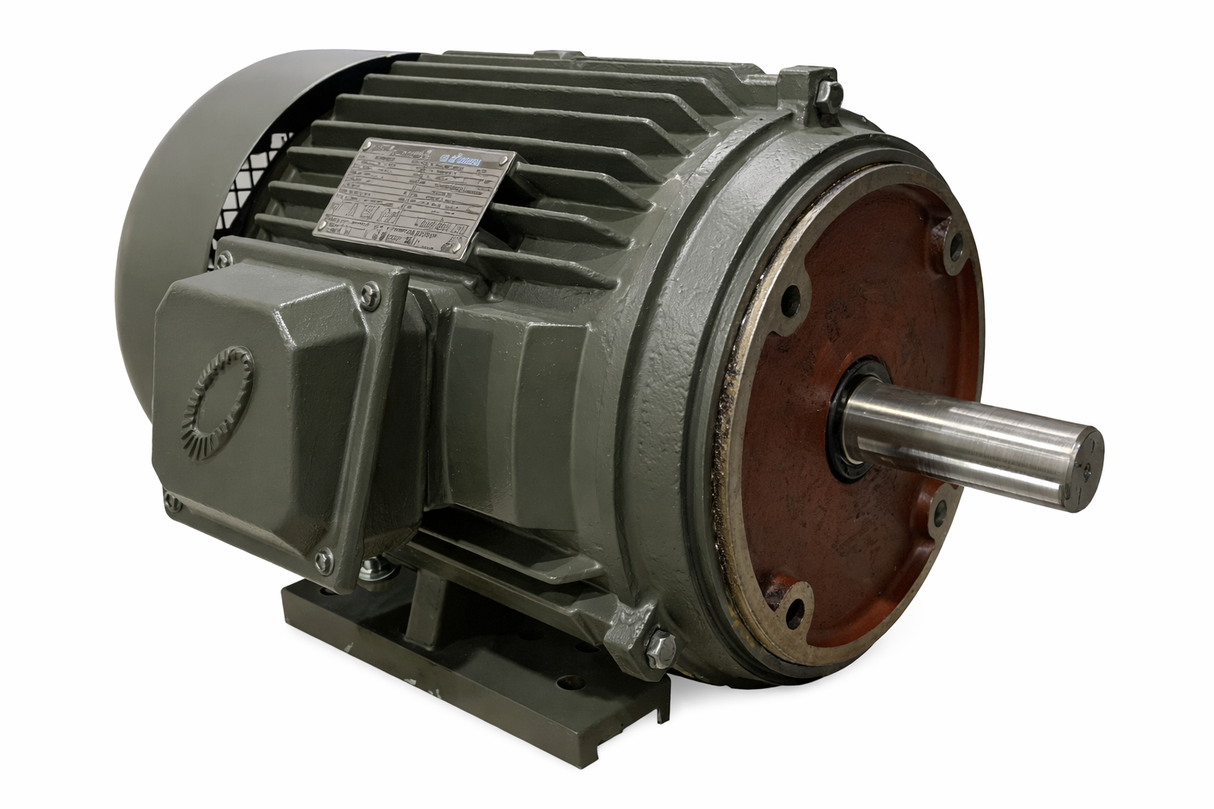

MQP-77C, 100Hp, 1790 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 404/5TC, IP55, Class F

MQP-77C, 100Hp, 1790 RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 404/5TC, IP55, Class F

Replace MQC-77W, 405TTFCD6036CB, GT1046A, CD100P2F, JF97

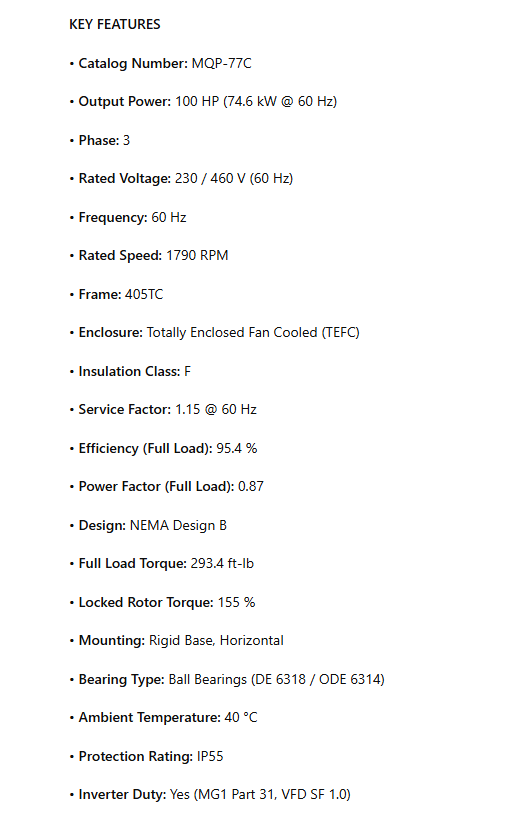

KEY FEATURES

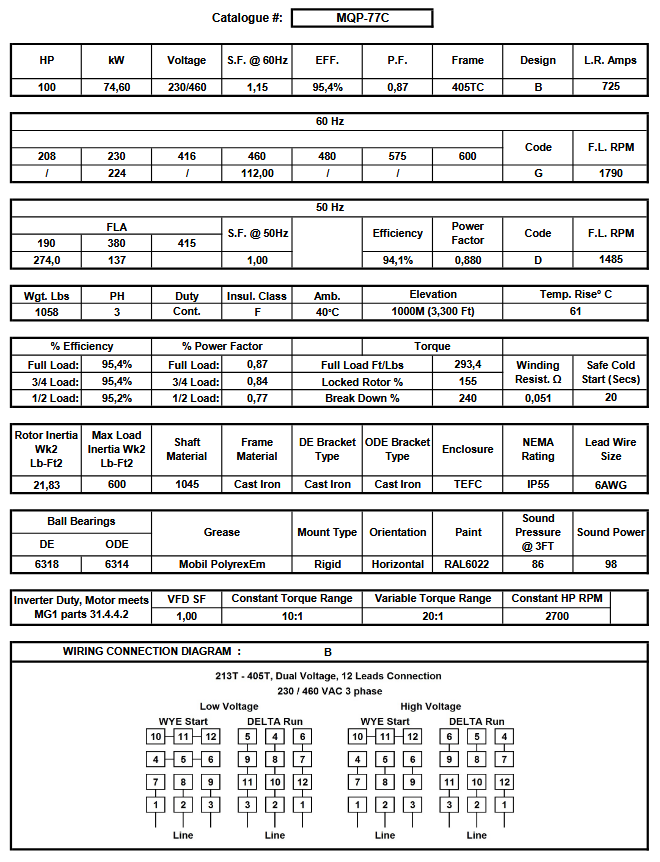

• Catalog Number: MQP-77C

• Output Power: 100 HP (74.6 kW @ 60 Hz)

• Phase: 3

• Rated Voltage: 230 / 460 V (60 Hz)

• Frequency: 60 Hz

• Rated Speed: 1790 RPM

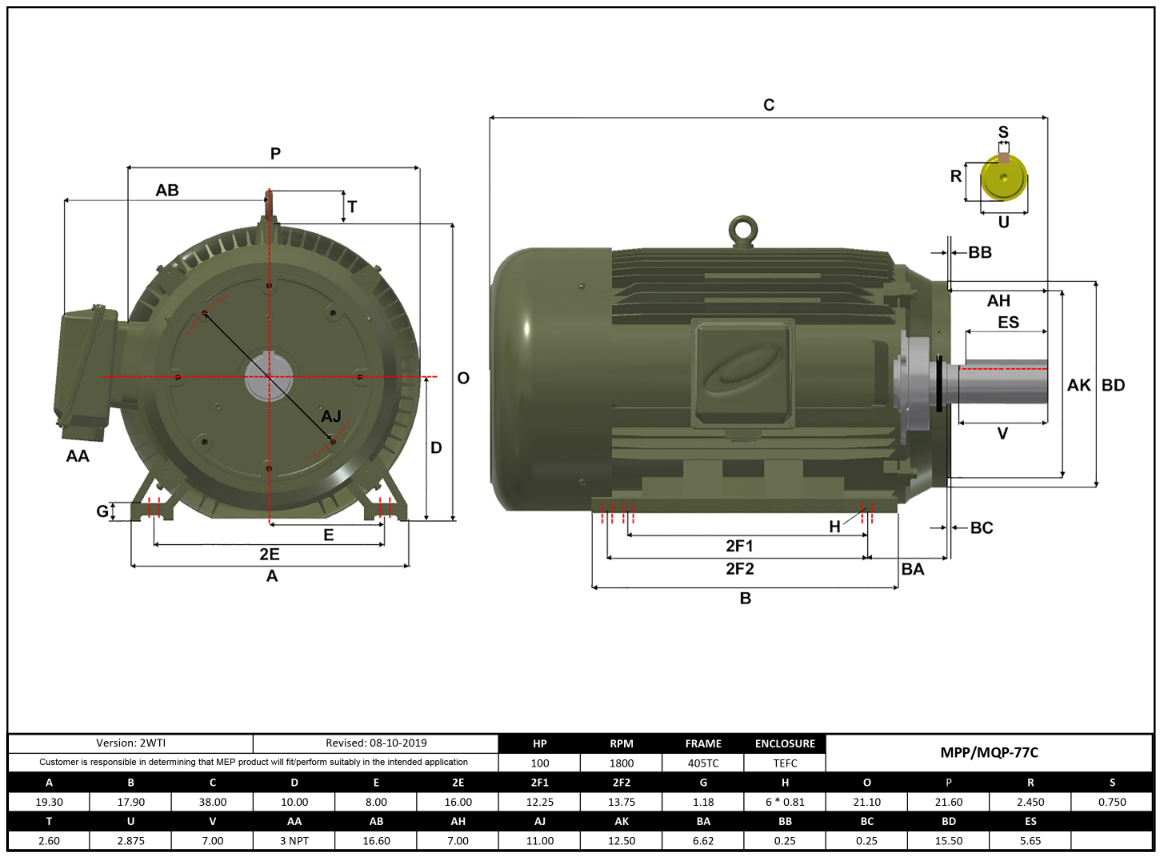

• Frame: 405TC

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Insulation Class: F

• Service Factor: 1.15 @ 60 Hz

• Efficiency (Full Load): 95.4 %

• Power Factor (Full Load): 0.87

• Design: NEMA Design B

• Full Load Torque: 293.4 ft-lb

• Locked Rotor Torque: 155 %

• Mounting: Rigid Base, Horizontal

• Bearing Type: Ball Bearings (DE 6318 / ODE 6314)

• Ambient Temperature: 40 °C

• Protection Rating: IP55

• Inverter Duty: Yes (MG1 Part 31, VFD SF 1.0)
