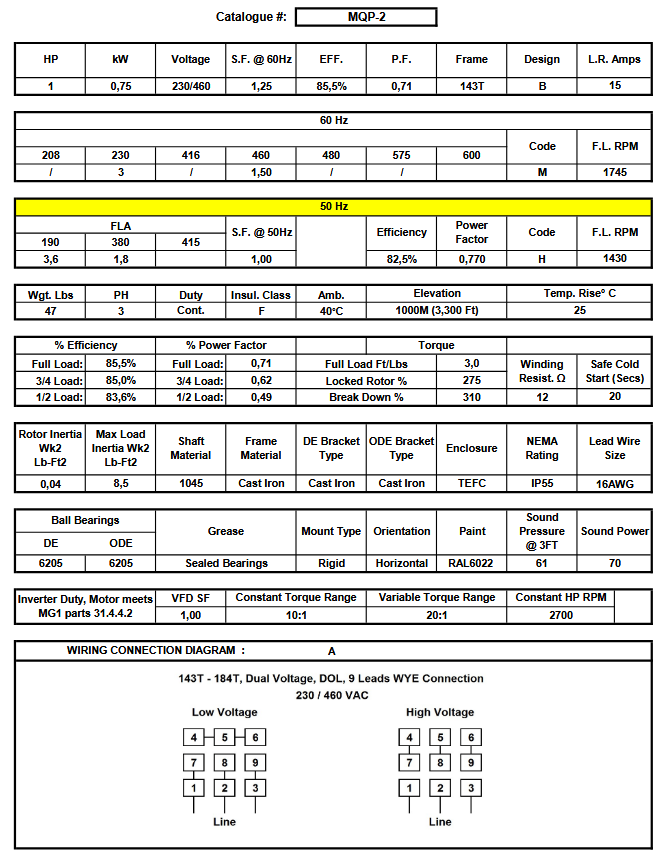

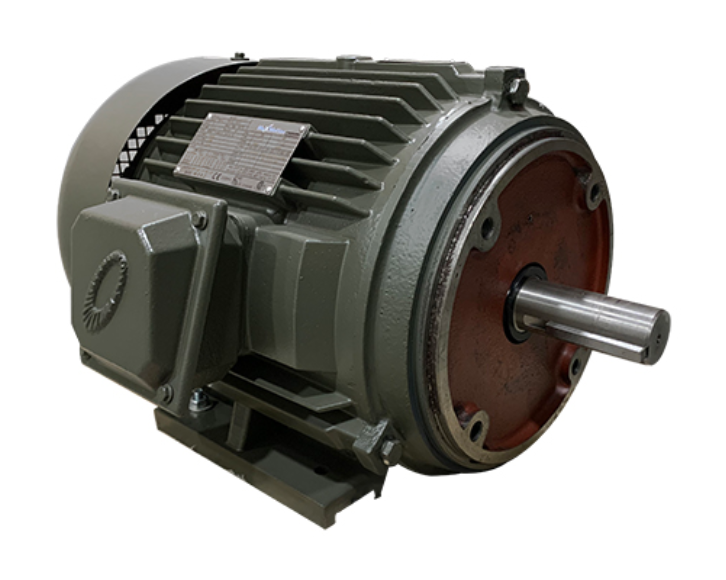

MQP-2C, 1Hp, 1800 RPM, 208-230/460V, 3 Phases, 60-50Hz, Frame 143/5TC, IP55, CLASS F, 1.25SF

MQP-2C, 1Hp, 1800 RPM, 208-230/460V, 3 Phases, 60-50Hz, Frame 143/5TC, IP55, CLASS F, 1.25SF

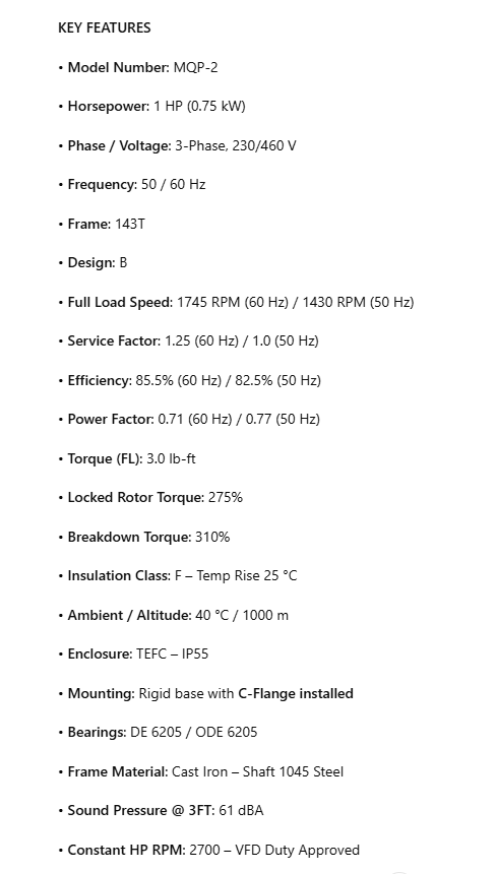

KEY FEATURES

• Model Number: MQP-2

• Horsepower: 1 HP (0.75 kW)

• Phase / Voltage: 3-Phase, 230/460 V

• Frequency: 50 / 60 Hz

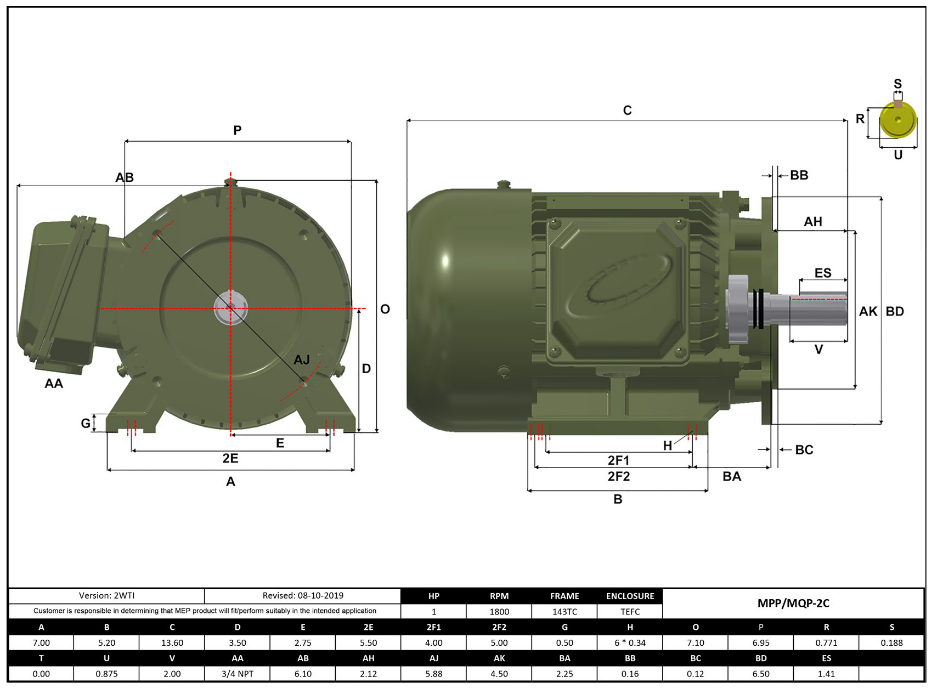

• Frame: 143T

• Design: B

• Full Load Speed: 1745 RPM (60 Hz) / 1430 RPM (50 Hz)

• Service Factor: 1.25 (60 Hz) / 1.0 (50 Hz)

• Efficiency: 85.5% (60 Hz) / 82.5% (50 Hz)

• Power Factor: 0.71 (60 Hz) / 0.77 (50 Hz)

• Torque (FL): 3.0 lb-ft

• Locked Rotor Torque: 275%

• Breakdown Torque: 310%

• Insulation Class: F – Temp Rise 25 °C

• Ambient / Altitude: 40 °C / 1000 m

• Enclosure: TEFC – IP55

• Mounting: Rigid base with C-Flange installed

• Bearings: DE 6205 / ODE 6205

• Frame Material: Cast Iron – Shaft 1045 Steel

• Sound Pressure @ 3FT: 61 dBA

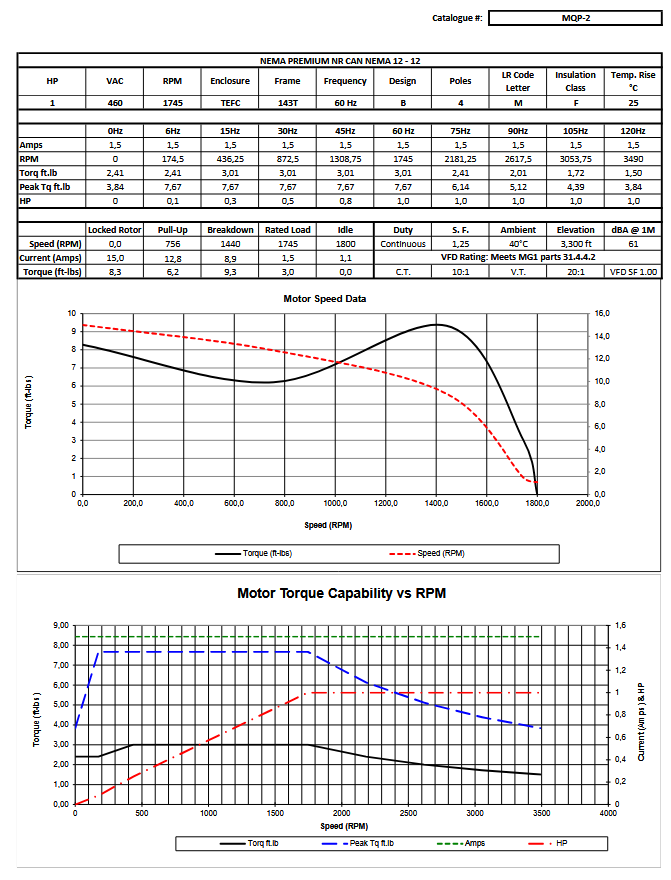

• Constant HP RPM: 2700 – VFD Duty Approved
